getMeshByName NULL Object

[reddozen]

objName = scene.getMeshByName("Prt_f01_Rag2_bro_mtree_a_04");objName = objName.createInstance("Prt_f01_Rag2_bro_mtree_a_04_inst_"+ Prt_f01_Rag2_bro_mtree_a_04_inst +"");

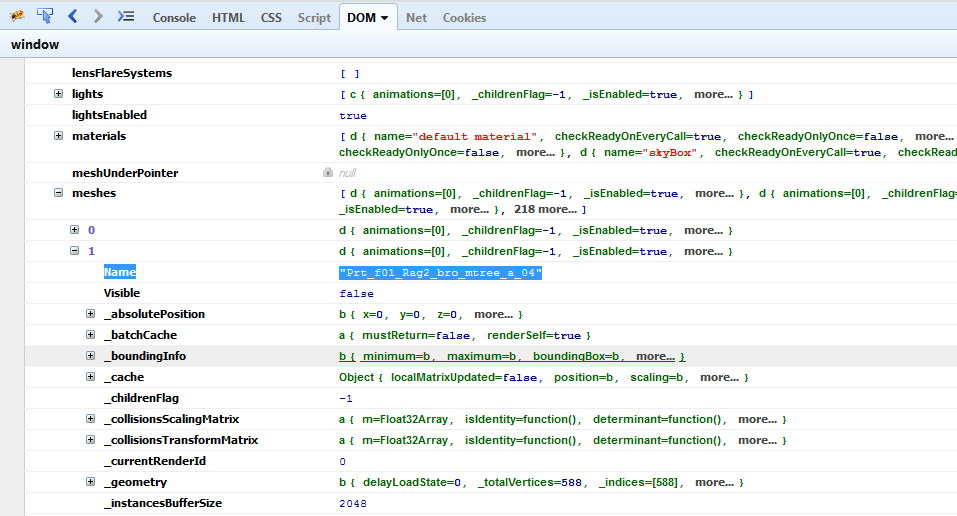

objName is NULL on the second line above. As you can see from the picture below, the object is loaded into the scene, so objName shouldn't be null after the getMeshByName call. Maybe I'm doing this wrong, or maybe there's a better way to handle this?



[Dad72]

I believe that getMeshByName look at index 0

[JCPalmer]

When you say is null on the second line, is this the result of the of the first line assignment or 2nd?  Recommend until you have it working to use 2 differently named variables to make quite sure to avoid misdiagnosis.

[reddozen]

Dad72,

I'm not sure what you mean by index 0



JCPalmer,

The first line should be setting objName to the original object referenced by the getMeshByName() call.

The second like says that objName is null so it errors on the objName.createInstance() call.

[Dad72]

All meshes of babylon on indexed



meshes[0]

meshes[1]

...



In your picture highlight you the name of the index 1 of your model



but getMeshByName look at index 0



But if you made: meshes[1].name  This will give you the expected name

[reddozen]

I know the name of the object, so getMeshByName() should take the name, and return mesh 1 in this case.



It makes since that meshes[1].name would give me the name of this item, but I know the name. I hope this makes since.

[Dad72]

meshes [0] and the complete object. mesh [1] is a submesh.



getMeshByName searches for an object, not a submesh

[reddozen]

it's not a submesh though. it's loaded independently through a separate import mesh command

var Prt_f01_Rag2_bro_mtree_a_04_inst = 0;	BABYLON.SceneLoader.ImportMesh("", "../Models/Maps/", "Rag2_bro_mtree_a_04.babylon", scene,		function(mapZone, particleSystems, skeletons)		{			mapZone[0].scaling = new BABYLON.Vector3(0.001, 0.001, 0.001);			mapZone[0].position = new BABYLON.Vector3(0, -10000, 0);			mapZone[0].Visible=false;			mapZone[0].Name = "Prt_f01_Rag2_bro_mtree_a_04";		}	);

[JCPalmer]

As far as it being a sub mesh, sub meshes is a member of each mesh, where 0 is essentially the whole mesh.  At the scene level, meshes are all meshes.  That does not mean that there being 2 meshes in the scene might not be a clue.  ImportMesh is defined:

        ImportMesh: function (meshesNames, rootUrl, sceneFilename, scene, onsuccess, progressCallBack, onerror) {



You specify "" for the mesh, which loads 2 meshes from the file.  Then in on success() you try to rename the first one[0].  Your picture shows you expanding [1].  Do you really want all of the meshes?  When I have called ImportMesh, I gave it a specific mesh in the first arg.  Not saying what you did is wrong, but it is not working & playing with it is probably your best chance to get it to "blink".  I would try importing it by its blender name specifically rather than "", and try to instance it by the blender name.

[Dad72]

Me this is what I see on your console image.



meshes [1] is not your complete object. getMeshByName rechercheras the object on meshes [0] which is model complete.



What do you have in the index 0 on name?

[Dad72]

Oh and I just see in your code:

 mapZone[0].Name = "Prt_f01_Rag2_bro_mtree_a_04";

Error => Name



mapZone[0].name should work better



In the console there is a capital letter but I wonder if it not automatic by the console and not what exists in the .json file

[JCPalmer]

Yea, the caps looks like the issue.  Looking a your JS you probably need to break out the replaceAll() for all those

[JCPalmer]

Visibility is also not capitalized in AbstractMesh

[reddozen]

I'll change that in my file creator.. just a sec.

[binyan]

To avoid the caps issues move to TypeScript

[reddozen]

I'm not writing my general javascript in TypeScript, sorry. Also, this script is dynamically generated from my server engine based on item locations.



Looks like I'm running into timing issues now. I'll add a scene.executeWhenReady()...

[reddozen]

I got the basics worked out. Seems like I have a race condition. How can I make sure that all the files have loaded before I start instancing them? I tried using scene.executeWhenReady() but it seems to skip over it. Maybe that has to do with it being a loaded in function file.


I guess I can do some setimeout conditions, but I would hate to do that... I would rather have some way of checking the scene to see that everything requested to load has loaded.

[reddozen]

Sooo...

Looks like you're forced to instance / clone all your objects from within the importMesh function. Trying to reference them from outside this function can cause race conditions. I'm not really sure how this is possible since javascript is a single threaded scripting language...but it's happening.

[JCPalmer]

Sooo...

Looks like you're forced to instance / clone all your objects from within the importMesh function. Trying to reference them from outside this function can cause race conditions. I'm not really sure how this is possible since javascript is a single threaded scripting language...but it's happening.

Probably because importMesh is doing async file I/O.  That why there all those callback entry points.

[Dad72]

In jquery I use:



$.ajaxSetup({ async: false});



I do not know if something like this exists in babylon.





[reddozen]

It's fine if it's async.. no big deal there, but we need a way to call back and schedule things that work with the file to avoid race conditions if that makes sense.
