Map sprite inside container with pixi-projection


mik12345
 Share

Recommended Posts

Good morning,
I have a question about a problem I have with pixi-projection, I'm using pixi V4.8.5 so the pixi-projection build is 2.0.8.

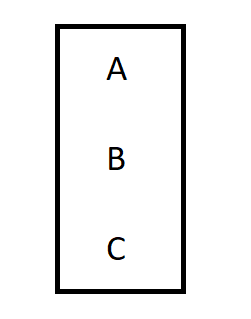

Originally I have a vertical pixi container where I add inside the sprite of some letters and numbers as child like the image below:

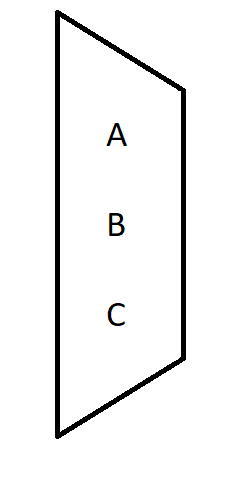

Now I need to add a "stretch" effect just the top-left and bottom-left corner of the container like so:


Ideally the sprite inside should be stretched aswell to match the size increase on the left side.

I got a solution working that implied to apply to each sprite a map to kinda match the same angle applied by the stretch to obtain a similar effect.

See the code below:

this._numberContainer = new PIXI.projection.Container2d();

        for (let i = 0; i < MAX_NUM_DIGITS; i ++)
        {

            let numSprite = this.assets.getSprite("win_char_flat_0");
            numSprite.anchor.set(0, 0);
            numSprite.y +=100*i


            let w = numSprite.width;
            let h = numSprite.height;

            function createSquare(x, y) {
                var square = new PIXI.Sprite(PIXI.Texture.WHITE);
                square.tint = 0xff0000;
                square.anchor.set(0.5);
                square.position.set(x, y);
                square.alpha = 1;//0
                return square;
            }

            let squares = [
                createSquare(w - 105-25*i, h - 105),//top left
                createSquare(w + 150-25*i, h - 140-10*i),//top right
                createSquare(w + 150-25*i, h + 85-25*i),//bottom right
                createSquare(w - 105-25*i, h + 105)//bottom left
            ];

            let quad = squares.map((s) => {
                return s.position;
            });


            let numSpritePrespective = new PIXI.projection.Sprite2d(numSprite.texture)
            numSpritePrespective.anchor.set(0, 0);

            squares.forEach((s) =>{
                this._numberContainer.addChild(s);
            });

            this._numberContainer.addChild(numSpritePrespective);

            PIXI.app.ticker.add((delta) => {
                numSpritePrespective.proj.mapSprite(numSpritePrespective, quad);
            });

            numSpritePrespective.blendMode = PIXI.BLEND_MODES.SCREEN;

            this._numberContainer.addChild(numSpritePrespective);
        }

I was wondering if it was possible to apply the same effect just to the container instead of every sprite of it since it would be quite a lot simpler to maintain.
