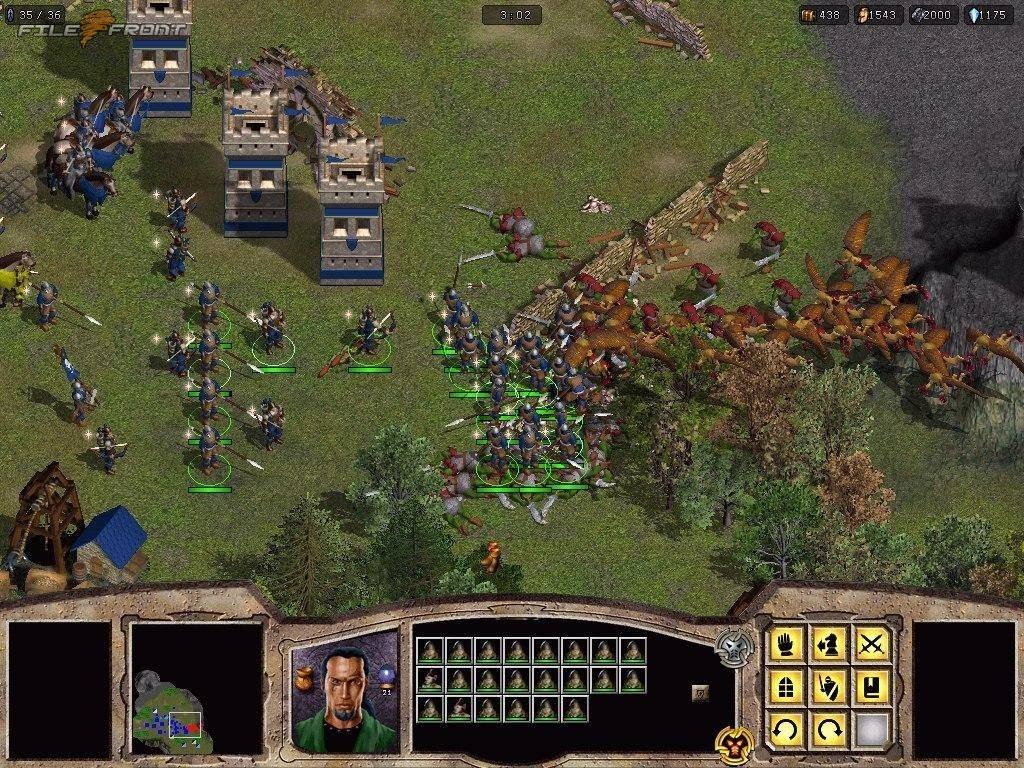

Hyena Posted November 27, 2020 Share Posted November 27, 2020 I have to implement line of sight (LOS) and it should appear in grayscale as traditionally seen in RTS games (see the top right corner of the attached screenshot). I don't have previous experience with filters and blending in PixiJS so I may be wrong here, but to me it seems like an overkill to have an offscreen buffer just for the LOS, which I would then somehow blend with the normally rendered screen to make it partially grayscale. It seems intuitive to have an easier way. Something like a brush that partially desaturates the underlying image where ever it is applied to seems like something of great use in this context. However, having tested different blend modes and filters I was unable to get even close. It seemed to me that both the blending and filters only apply to the source image. How would you blend together multiple images though? Any pointers here would be much appreciated. Thanks! Quote Link to comment Share on other sites More sharing options...
ivan.popelyshev Posted November 27, 2020 Share Posted November 27, 2020 (edited) Its tricky but possible, here a few links for you to review first: This plugin allows to take background as input, if it was in renderTexture: https://github.com/pixijs/pixi-picture , i think its possible to even take back from main screen with one trick, i didnt try it yet Big demo with layers and lights: https://codesandbox.io/s/tender-franklin-iycmu Usually, you make several layers in different renderTextures then combine them using sprite-blendModes, mesh-shaders or filters. Edited November 27, 2020 by ivan.popelyshev Quote Link to comment Share on other sites More sharing options...
ivan.popelyshev Posted November 27, 2020 Share Posted November 27, 2020 Honestly its better for pixijs slack #shaders discussion, i sent you an invite. Quote Link to comment Share on other sites More sharing options...
Hyena Posted November 27, 2020 Author Share Posted November 27, 2020 9 minutes ago, ivan.popelyshev said: Honestly its better for pixijs slack #shaders discussion, i sent you an invite. Thanks, joined. After some more research I found this topic, which discusses a problem conceptually very similar to mine: Quote Link to comment Share on other sites More sharing options...
