solved Textures not being rendered properly, babylon.js and blender exporter

[supersoupcan]

Hello HTML game  devs. First time poster.

Some textures aren't appearing in babylon.js in a tile set I exported from blender using the Blender To Babylon 5.6 exporter.

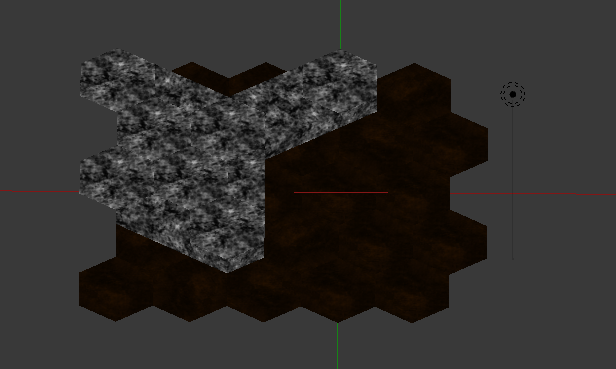

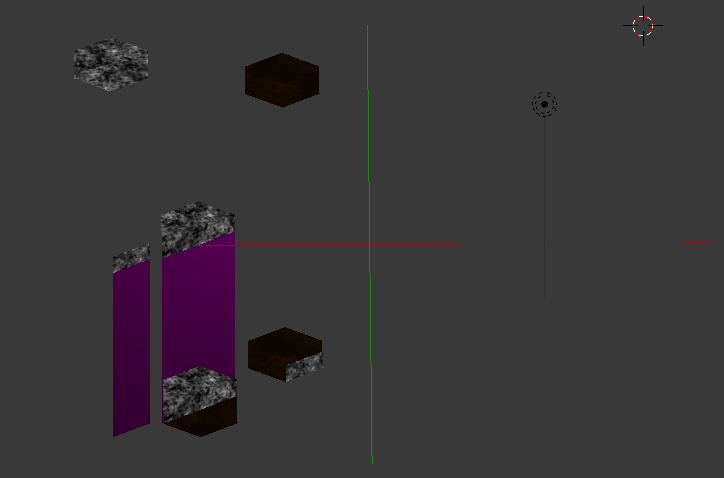

Here is the tile set scene in blender, as well as a simple hand crafted scene built in blender using the tiles to give an idea of what the final product should look like.

.

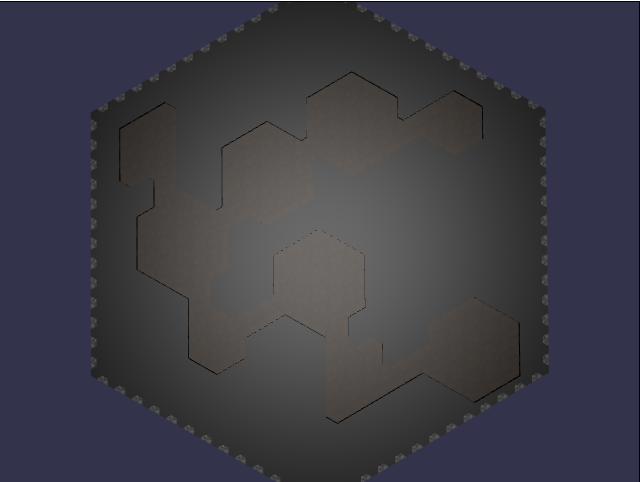

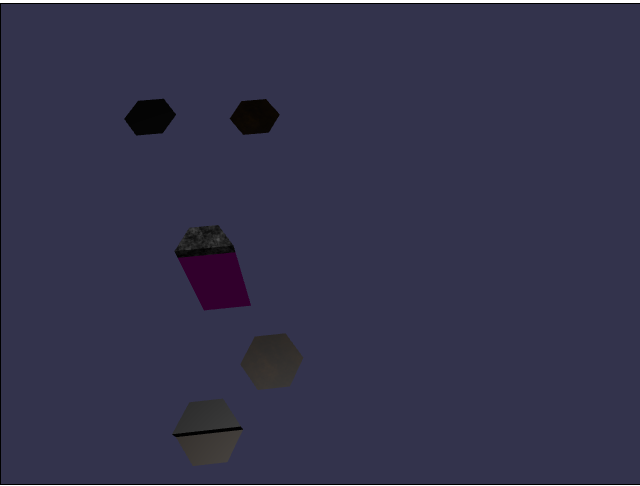

Here is the default tile set scene imported into babylon.js as well as a scene generated by from my map-generation script.

Despite my horrible lighting,  it's clear the wall texture is not being rendered in all the models. Neither the exporter or babylon.js are generating any errors or warnings.

Here is an archive containing the .babylon file and textures
Here is the blender exporter log

I am new to 3D rendering and only have a basic understanding of Materials, Lighting, UV Maps and Textures, so if somebody could have a crack at it I'd really appreciate it.

[supersoupcan]

Sorry I've only just now realized that this is not a straight forward question, but more of a bug. Should I re-post this in the bug forum?

[Guest]

Pinging @JCPalmer

[V!nc3r]

Can you share your .blend too? I think issue come from material configuration.

[supersoupcan]

Here is the .blend with the textures

What would be a better approach?

[V!nc3r]

Some objects doesn't have materials, so of course there are not exported (ex: water_water_water.tile)



[supersoupcan]

I'm not trying to export the objects in the first layer. I want to export the objects on the second layer which all have materials.

[V!nc3r]

OK. It seems this mesh was broken, so I attached it to a new Cube and it solved the issue

[supersoupcan]

How do you find out if a mesh is broken? And how does attaching a Cube fix the issue?

[V!nc3r]

I just had a feeling, and I suppose attaching to a new primitive just made a kind of data cleaning/reset.

[supersoupcan]

How would I replicate that precisely, because I tried joining the mesh with a Cube, and then deleting the added Cube, and the mesh was still broken in babylon.js.

[V!nc3r]

actually I was on the wrong track: some meshes share the same material, but some have UV use by "wall" material on first channel, others on the second, and other doesn't have second channel

and as the exporter log says:

Quote

        processing begun of Standard material:  wall
            Diffuse texture found "wall"
                Image texture found, type:  diffuseTexture, mapped using: "WallUV"

and I have also this in the .babylon:

    "materials": [
        {
            "name": "hextiles_2_0.wall",
           [...]
            "diffuseTexture":
            {
                "name": "wall.png",
                [...]
                "coordinatesIndex": 1
            }
        },

As your mesh doesn't have two UV chans, coordinatesIndex = 1 can't work on it.

[supersoupcan]

Thanks for your help V!nc3r its working perfectly now! I guess the key takeaway is that blender uses keys to store UV references, while the Babylon.js exporter uses indices.

[V!nc3r]

Actually, Blender use indices too, but you can give a name to them.

For example, if you have an active object and type

bpy.context.active_object.data.uv_layers[0].name

in the console, you should read your first UV channel name. If you change the 0 by 1, you'll see the second UV channel name, etc. This index number is exactly the same than the coordinatesIndex one.
