Having some texture inconsistencies with *.obj from MagicaVoxel.

Original:

unknown.png?width=400&height=281

Texture problem (in browser). The problem is the magenta roof's color is bleeding into the light blue walls. and making weird triangles.

unknown.png?width=401&height=247

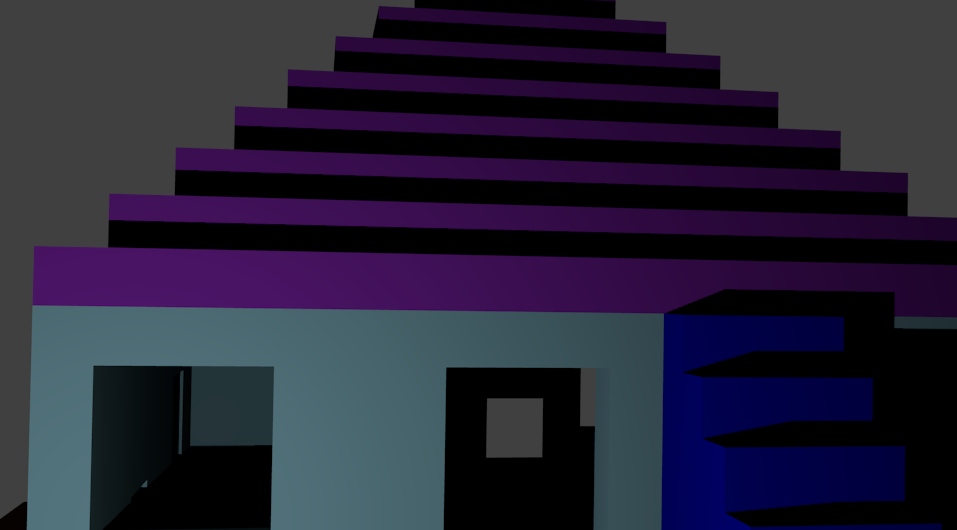

Imported from MagicaVoxel to Blender just to test a render:


Any idea what the problem might be, or how to test further?



I made a few other meshes and had the same problem, somewhere on there one of the colors starts to do some weird blendy thing with its neighboring voxels, but most of of the model maintains crisp edges.

Link to comment
Share on other sites

Nevermind! This turned out to be one of those things fixed with

BABYLON.OBJFileLoader.OPTIMIZE_WITH_UV = true

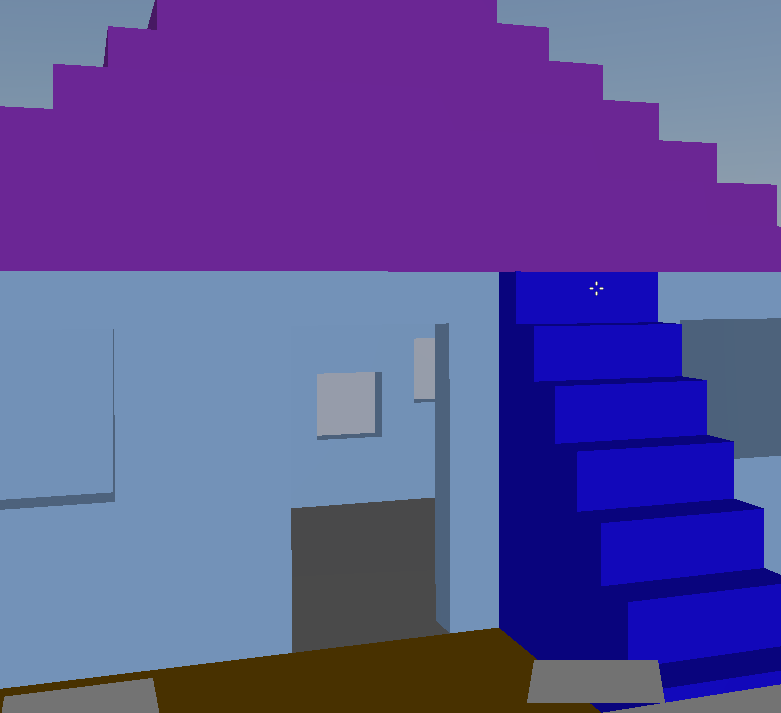

Now the lines are clean.

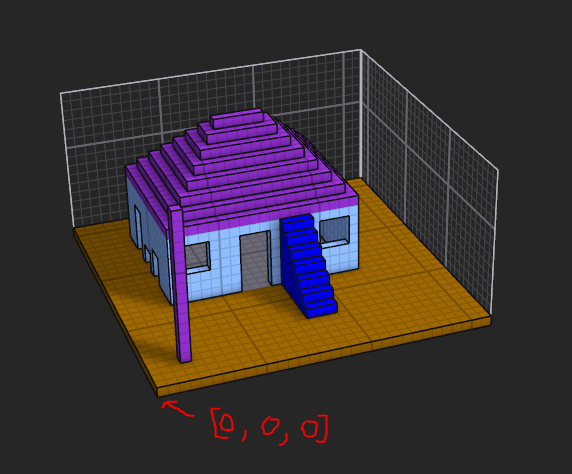

Also if anyone happens to be playing with magicavoxel, I found out a few more things.

For everything to line up perfectly, the mesh needs to be moved by half its size and flipped on the z axis. I mean it looks fine as a mesh by default when imported, but if you want the coordinates from magicavoxel to line up with coordinates in babylon space such that 0,0,0 in babylon is 0,0,0 in voxels, then the offsetting + flipping needs to occur. Then it becomes possible to do voxel collisions instead of mesh collisions, which is what I'm working on next.
