Feature Request - Rendering Perf

[fmmoret]

I'm getting a little pressed for performance in a game I'm working on. With ~6+ characters I'm starting to drop below 60fps on medium/low-end computers when my meshes are not very high poly, my animations don't have a very high sample rate and only one animation playing per character, and with no particle effects.

My render loop perf breakdown is 4-6ms spent in _animate and 12-20ms in _renderForCameras in the top level render call.

I'm investigating ways to optimize the loop, but it's really difficult to find big chunks that would use:

1) wasm

a) where the chunk is easy to black box

b) where the chunk is big enough that it's worth paying the high bridge-latency-cost of going in and out of a wasm module



or 2) web workers

a) where work can be done simultaneously with other stuff  / where order of costly calculations don't matter

b) where we don't need to serialize / deserialize too much info if we were to send it to a worker & get a response back

c) where (like wasm)  the chunk is big enough that it's worth paying the cost of messaging to and from the worker



Wasm to me feels like it'll be an all-or-nothing sort of thing because of how intertwined so many things are in babylon.

Web workers might be easier to work in because they can use existing javascript code.



Do other people have ideas / opinions / specialty knowledge? Do you guys spot some large areas that would be easy to isolate & either execute asynchronously or just optimize with wasm?

[Sebavan]

About

1) yes this would require to rebuild most of the engine in wasm

2) Unfortunately as long as SharedArrayBuffer are disabled due to Spectre and Meltdown, we won t be able to rely on it as well.

There are usually plenty of other tricks that could apply for perf improvment and the community can definitely help addressing some of your issues.

[fmmoret]

I think SharedArrayBuffers just got reenabled for Chrome. I don't know how far other browsers are

[jerome]

\o/  for SAB !

That said, the usage of webworkers with SAB is not that simple about their synchronization. Please have a read at this last year experiment :





As sebavan said about wasm, the best implementation would be that the major parts of the framework would be ported to wasm AND the user logic would also be coded in wasm to avoid the communication issues (data passing back and forth, multiple wasm calls from js, etc). Note that, they intend, some day, to implement the multi-threading wasm side and the question of the performance gain will then be capital.

Meanwhile, maybe are there other ways to improve your very own case ? ... reducing the draw call number, reducing the globally the computation required (don't compute what's not visible, what's not pertinent, etc), reducing the number of loops, iterations, the amount of data ? well, just leads as we don't really know what you're trying to achieve ?

[fmmoret]

I do all collision / physics server side & just send state over for babylon to transition to.

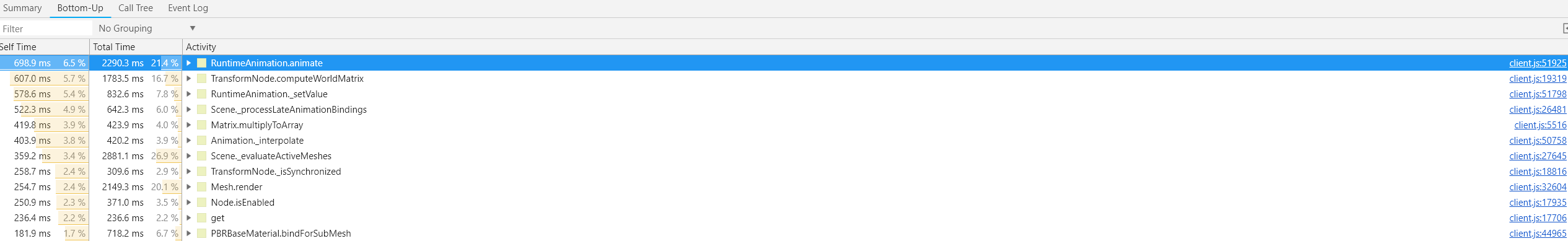

Here's a profile on my game if you're curious:

Click on the thumbnail to see a clearer version.

[Sebavan]

looks like you have a lot of animations running, maybe some of them could be skeleton animations to defer a bit of load on the GPU ???

This really depends on your scene so not sure it could apply in your case.

[JCPalmer]

Looking at your screen shot, _evaluateActiveMeshes, 26.9% total, is where computeWorldMatrix gets called, 16.7% total, is called.  While this is required if the scaling, location, or rotation changed since the last frame, if you know of meshes that are never going to move, this can be eliminated for them.  No amount of this automated optimization can ever know that.  FreezingWorldMatrix of background meshes is the kind of overhead that can be taken out without sacrificing or redesigning the scene.

One other area without sacrifice / redesign is merging meshes of the same material, which also do not move, scale or rotate.  After that, much of the low hanging fruit has been picked.

[fmmoret]

@Sebavan they are skeleton animations in blender.

Do the shader ones work with weights & blending?

I'm exporting via the gltf exporter and don't know if that exports a shader for the animations.

[Guest]

Well so the GPU is already used for bones. I think @JCPalmer is on something



Did you read that doc btw? http://doc.babylonjs.com/how_to/optimizing_your_scene

[dbawel]

@JCPalmer if you are working on an extension, please let us all know. Otherwise, perhaps this is an extension we need to take on specifically for the BJS framework. I'm actually not sure why I'm writing this post, as all the info is available in the browser dev tools. But everyone want's the EASY way. I wish I had it so easy in the early days of making console games.

DB

[JCPalmer]

I am not working in this area.  MergingMeshes of the same material already works with both meshes & clones.  One area which might make it easier is optimizing materials.  It is just a loop thru scene.meshes, but why should everyone need to do it.

Maybe, a method on Material.mergeMeshes(exclude? : array<Mesh>) : void.

If you had a bunch of tree meshes or clones, call it like: scene.getMaterialByName("tree_material").mergeMeshes();

If no one uses it, then it would be more bloat.

Strawman, not validated:

public mergeMeshes(exclude : array<Mesh> = []) : void {
    const selected = new Array<Mesh>();
    for (m in this._scene.meshes) {
        if (m.material === this) {
            let ignore = false;
            for (e in exclude) {
                if (m === e) {
                    ignore = true;
                    break;
                }
            }
            if (!ignore) selected.push(m);
        }
    }
    Mesh.MergeMeshes(selected);
}





[Guest]

This can be done automatically by the SceneOptimizer: http://doc.babylonjs.com/how_to/how_to_use_sceneoptimizer
