gLTF Exporter Fur Material issue

[Pab144]

Hey there Babylonians,

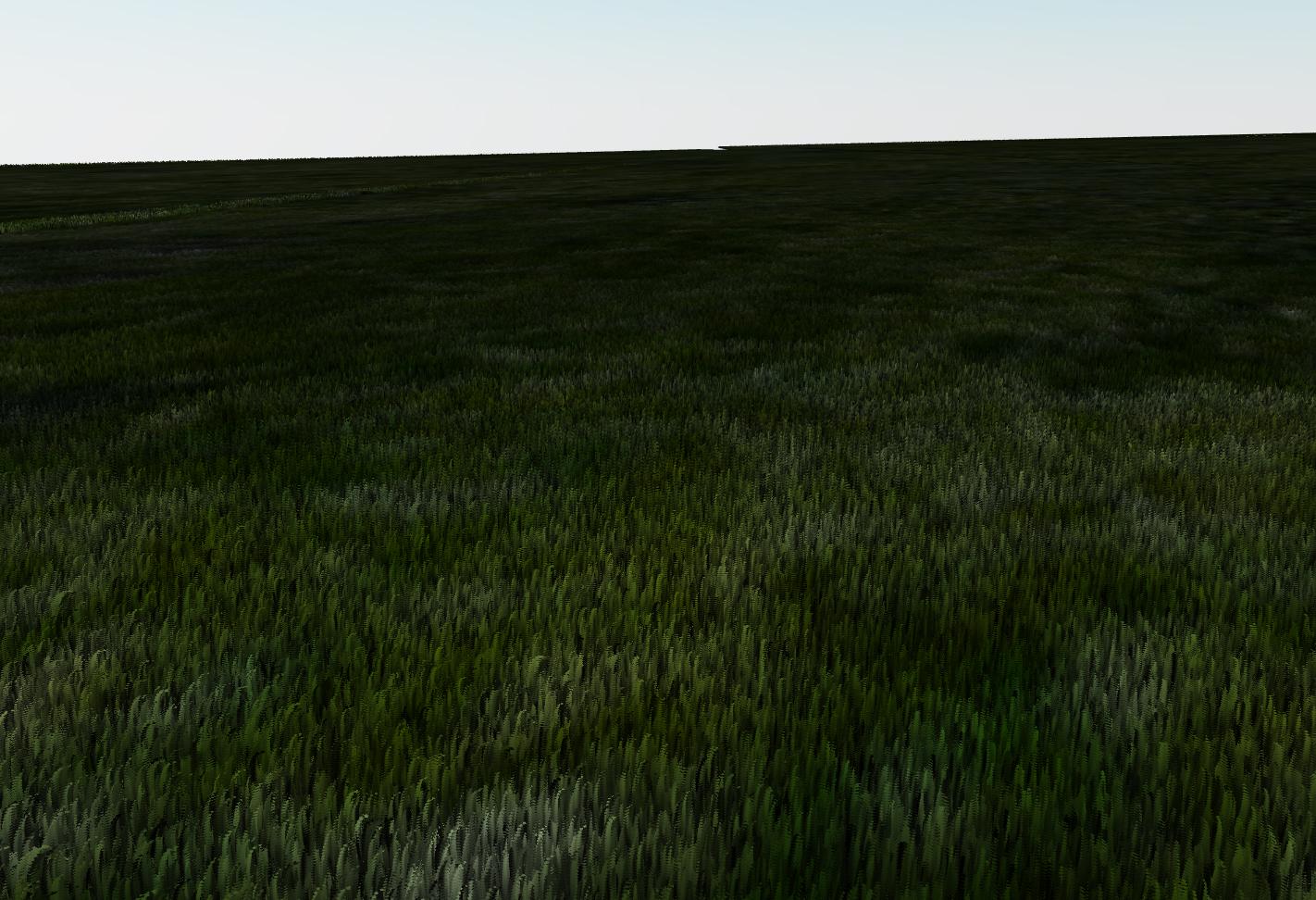

I'm having an issue with the gLTF exporter for 3dsMax 2017 and FUR MATERIAL, It would seem that when I add the FUR MATERIAL to the mesh exported using gLTF the faces get flipped or something. I tried exporting the same geometry using just the .babylon file format and it worked nicely picture below.

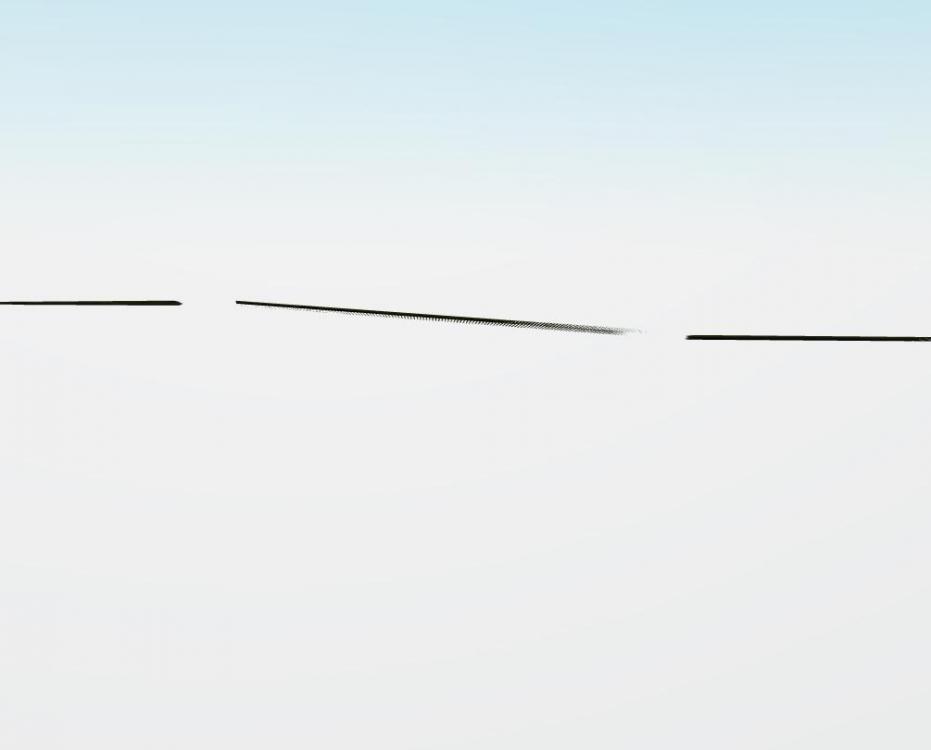

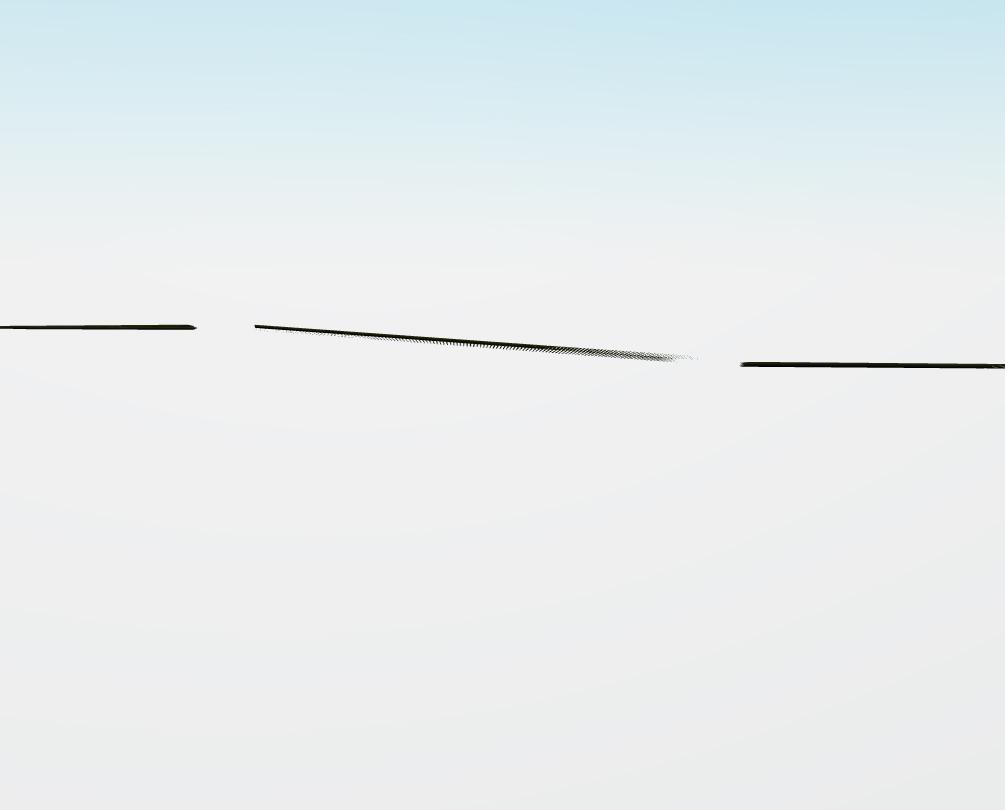

However when I export with .gltf format it looks like this.

I've tried flipping the faces inside of 3dsmax but so far no luck. Also I've noticed that the gltf exporter rotated my mesh 180 degrees on the y-axis for some reason.

Any help or advice would be of great help.

Regards,

[Pab144]

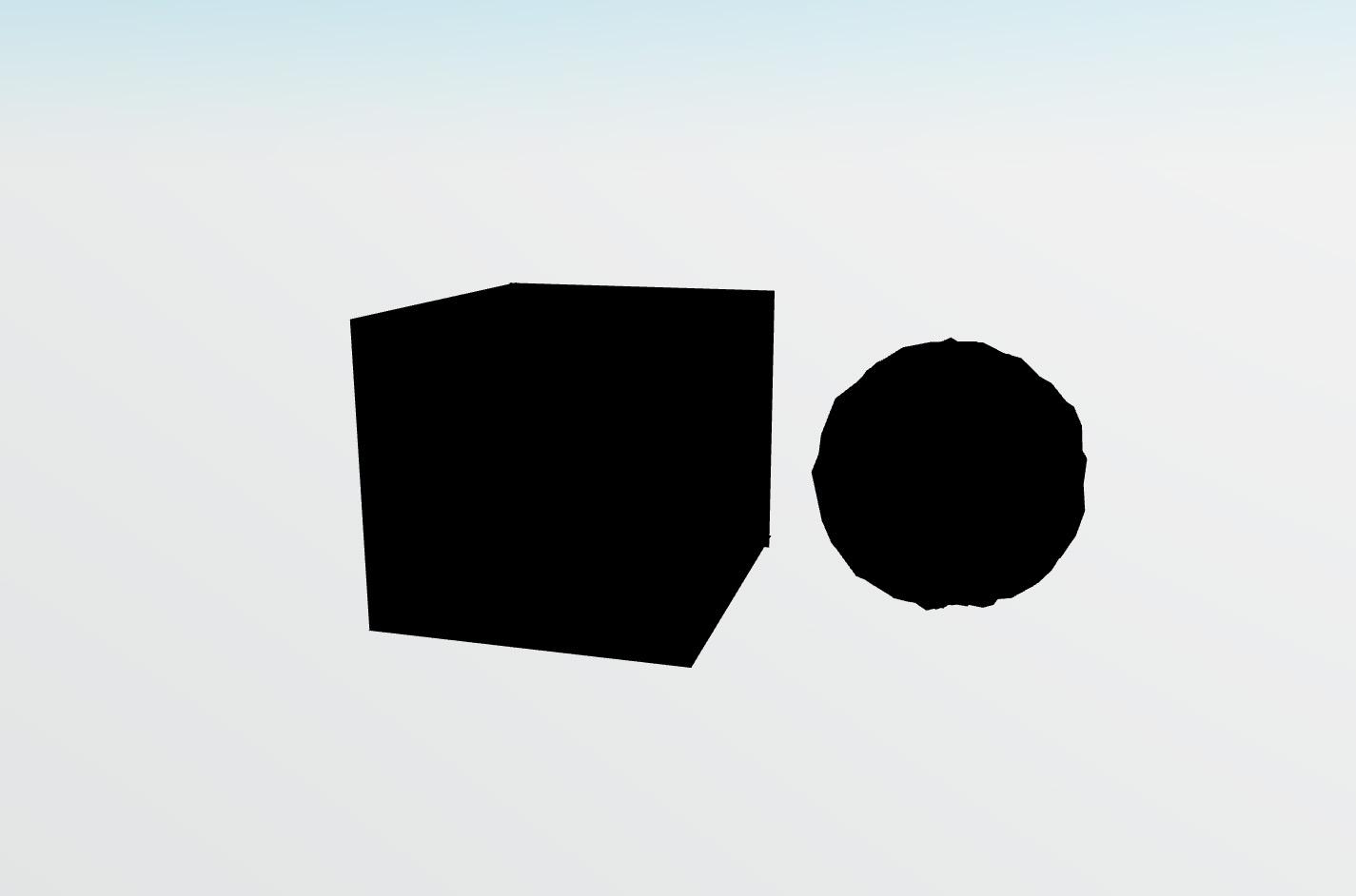

I did some "testing" with 3dsmax primitive shapes to see if the issue is was just a geometry problem with my mesh, bu the error came up again.

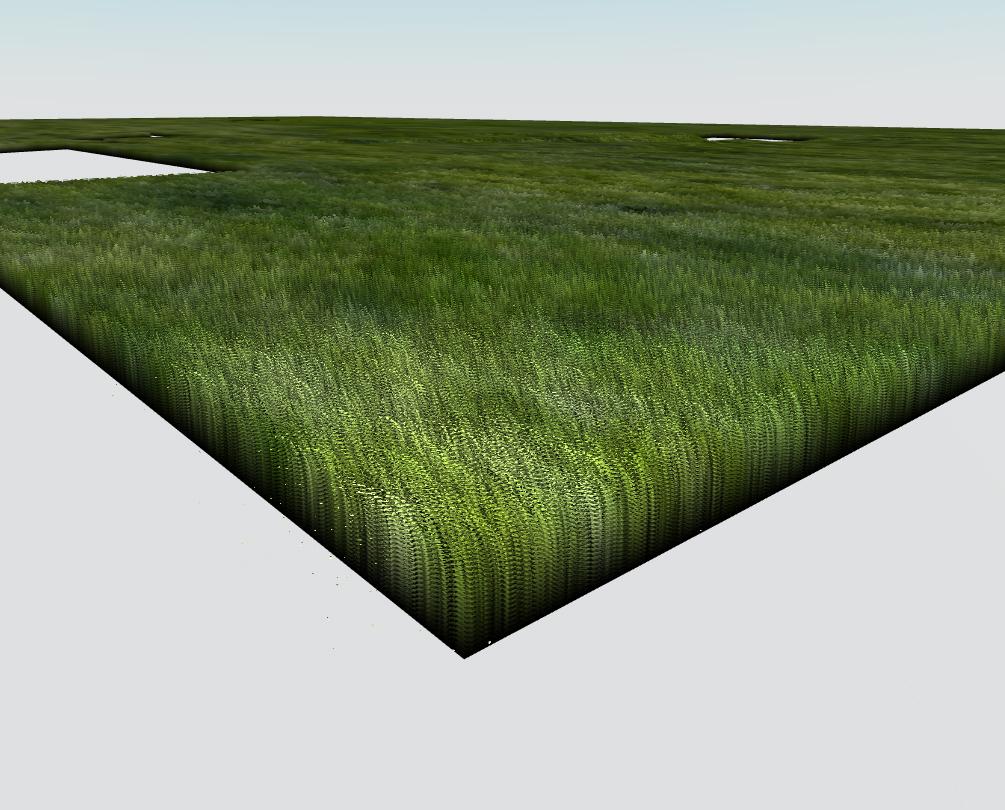

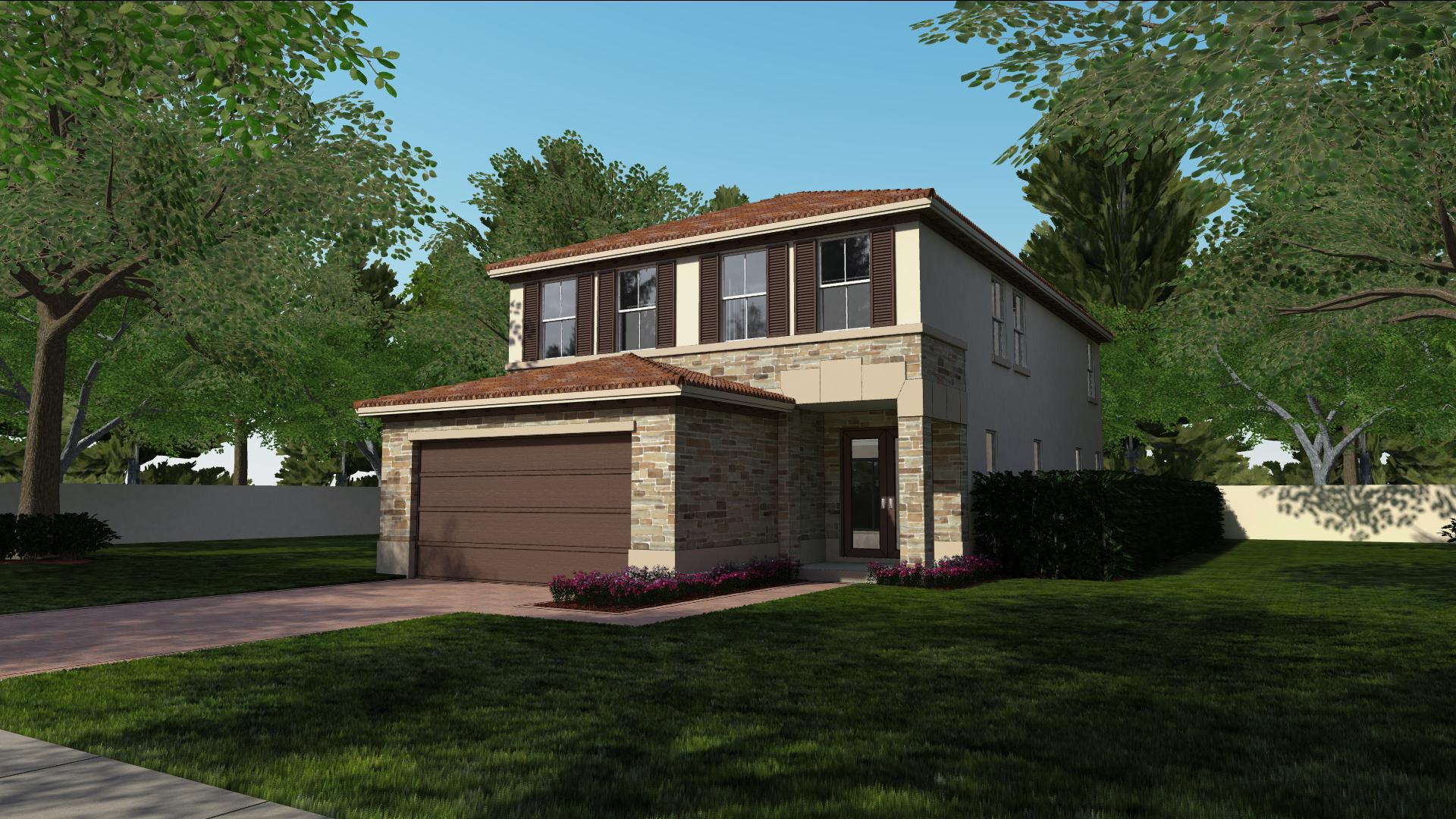

I'm trying to use BJS for architectural presentations and so far it's been real great. I'm trying to build the scenes and export them from 3dsmax using .gltf to use pbr materials for better realistic results but my solution for generating realistic grass doesn't export well. Here's a pic of the scene using .babylon file format and Standard Materials.

Any help or guidance would be greatly appreciated.

[Guest]

This is really beautiful

Do you know that PBR works in Babylon.js as well?

But nevermind, regarding your glTF issue let me ping @noalak



[Pab144]

I know the .babylon supports Physical Material form 3DsMax, but I was trying out .gLTF for some of the file size advantages.

[Jaskar]

Hey @Pab144 ,

@noalak is sick, so someone else in the exporter team is currently working on this issue.

We'll let you know about the progress, or if we have any question.

[rlouvat]

Hi Pab144,

I'm looking at your issue :). Can you tell me on which exporter version you are working ?

Also can you provide me a sample ? So I can test on my side too.

[Pab144]

Hey  @Jaskar,

I appreciate the help, if there's anything I can do to help let me know.

Regards,

[Jaskar]

@Pab144

Can you tell me on which exporter version you are working ?

Also could you provide a sample please ? So we could test on our side too.

Feel free to PM me if you don't want to share your assets.



Edit : I posted this awaiting the @rlouvat post.

[Pab144]

Hey guys,

I'll send you a link to the files and assets via PM.

I'm using 3dsMax 2017 so my exporter version of max2babylon v.1.2.18

Thank you so much for the help!

[rlouvat]

Hi @Pab144

You are right there is a 180 degrees on the y-axis rotation on the glTF export. It is due to the change of the coordinate system (from 3DS Max to Babylon and from Babylon to glTF).
Plus changing a mesh material doesn't work (even if it's not a fur one). I suspect it is related to the uv...

I created a issue on github. Here is the link https://github.com/BabylonJS/Exporters/issues/276

As soon as I found something, I will tell you.

[Pab144]

Cool thanks for the all help man, I'm glad you guys are on it.

[rlouvat]

Hi @Pab144

The issue is related to the loader so I created a new issue on github in the right section: https://github.com/BabylonJS/Babylon.js/issues/4833

Sorry I didn't find a solution nor a workaround yet.

[Pab144]

No big guys, keep up the great work, I appreciate all the help.

[rlouvat]

Hi @Pab144

Did you see the answer of bghgary on github? He said that you have to set the material sideOrientation to ClockWiseSideOrientation. So in your code you should add something like this:

grass.material = grassMaterial;
grass.sideOrientation = BABYLON.Material.ClockWiseSideOrientation;

var quality = 30;
var shells = BABYLON.FurMaterial.FurifyMesh(grass, quality);
for (var i = 0; i < shells.length; i++) {
    shells[i].material.sideOrientation = BABYLON.Material.ClockWiseSideOrientation;
}



[Pab144]

Hi @rlouvat,

I Just tried the solution, and it worked quiet well see pic

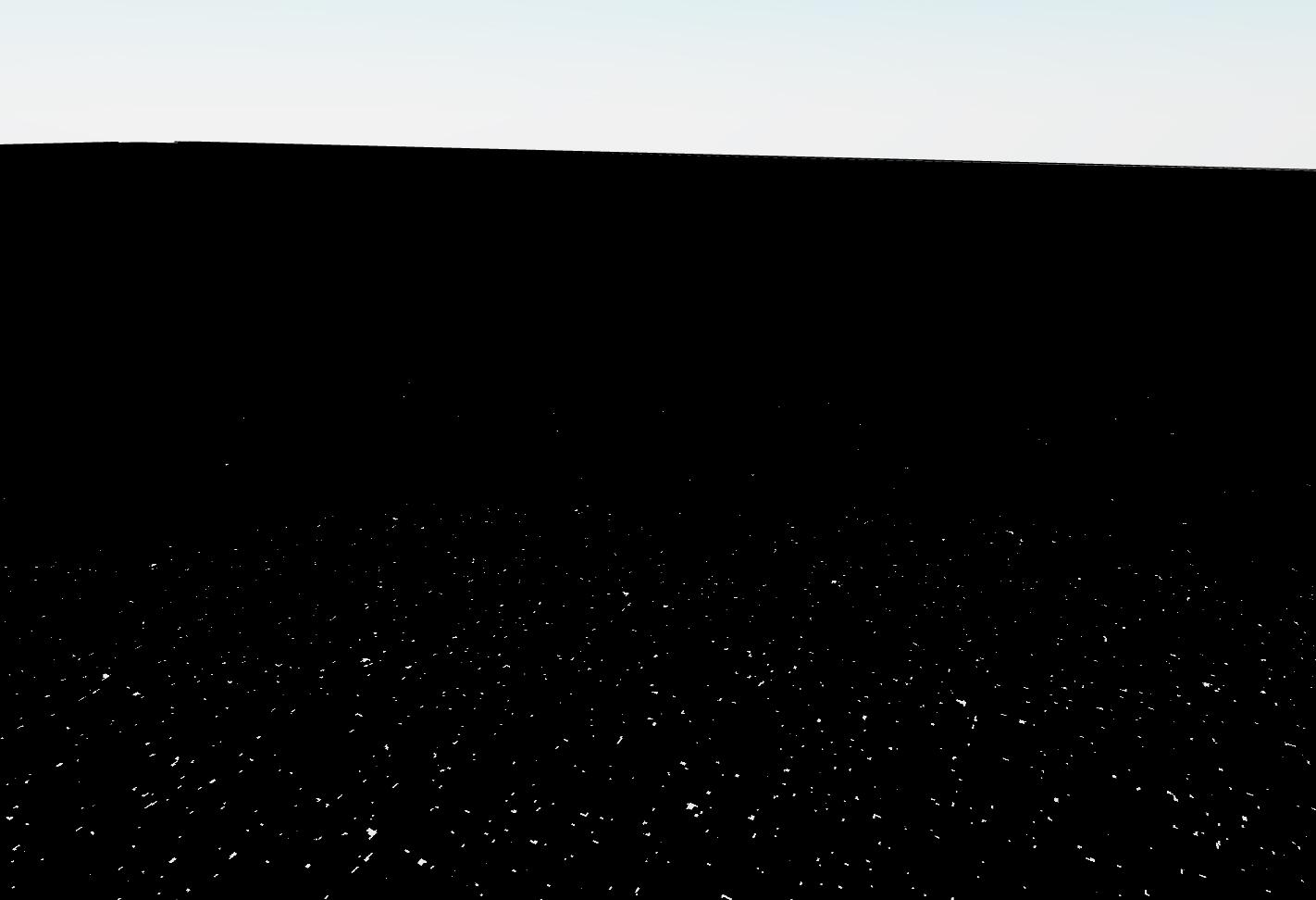

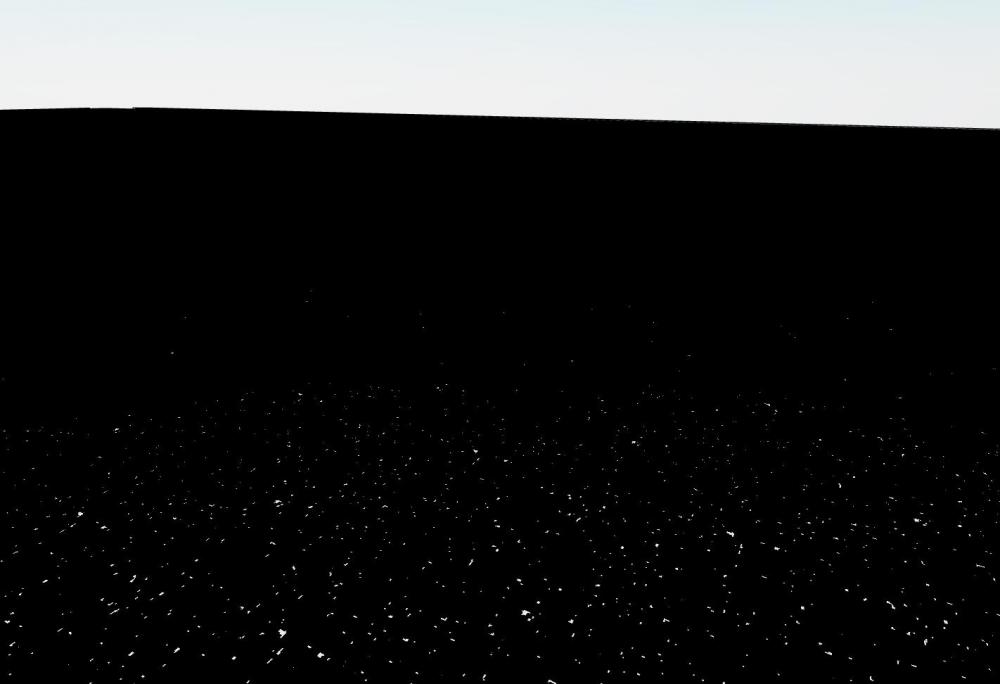

But when I move around in the space and rotate the camera it flashes black.

Any ideas?

[Guest]

Can you repro in the PG?

[rlouvat]

Hi @Pab144

As I was unable to reproduce the bug in the playground, I though that it was related to some dependencies. So I replace the scripts in the index.html

  <script type="text/javascript" src="babylon/babylon.custom.js"></script>
  <script type="text/javascript" src="babylon/babylon.inspector.bundle.js"></script>
  <script type="text/javascript" src="babylon/babylon.furMaterial.min.js"></script>

by

  <script src="https://preview.babylonjs.com/babylon.js"></script>
  <script src="https://preview.babylonjs.com/inspector/babylon.inspector.bundle.js"></script>
  <script src="https://preview.babylonjs.com/loaders/babylonjs.loaders.min.js"></script>
  <script src="https://preview.babylonjs.com/materialsLibrary/babylonjs.materials.min.js"></script>

And it works :)

Can you tell me if it's 0k for you?

[Pab144]

Hi @rlouvat,

Yup that fixed it man. it's perfect now, thank you so much for all the help guys it's been invaluable.

Cheers to you all!

[rlouvat]

Hi @Pab144

You are welcome. Thanks to you I learned new things about gltf and the fur texture
