Nockawa Posted July 4, 2018 Share Posted July 4, 2018 This one is for @Sebavan, I use this material (a lot) and I would really appreciate if it could receive cast shadows. Currently I'm creating two surfaces displayed alpha blended, a second one with a standard material to display the shadows but Depth Fight occurs a lot and it's not something I can solve by tweaking as I have many different scales in many different objects. Could you tell me if it's something that can be done without much trouble and could be in future (beta, near ? ) releases? Or if it's too much work that I have to lost hope on it? Maybe you have a more tangible workaround in the meantime? I'm playing with zOffset in the Material and the scale of the second surface, but it's not working 100%... Thanks ! Quote Link to comment Share on other sites More sharing options...
Sebavan Posted July 5, 2018 Share Posted July 5, 2018 Hello ? This could be added to the material by taking example on the shadow only material. basically mixing the shadowonlymaterial code in the gridmaterial. The main issue would then be to support lights in the material cause shadows without lit area might give weird results. Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 5, 2018 Share Posted July 5, 2018 hi @Sebavan can you show me grid material fragment code i can mix that by custommaterial Quote Link to comment Share on other sites More sharing options...
Sebavan Posted July 5, 2018 Share Posted July 5, 2018 This is all here: https://github.com/BabylonJS/Babylon.js/tree/master/materialsLibrary/src/grid NasimiAsl 1 Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted July 5, 2018 Share Posted July 5, 2018 I have no way of validating this script but I figured id post it for someone with more time then me at this moment. #extension GL_OES_standard_derivatives : enable #define SQRT2 1.41421356 #define PI 3.14159 precision highp float; uniform vec3 mainColor; uniform vec3 lineColor; uniform vec4 gridControl; uniform vec3 gridOffset; uniform vec3 vEyePosition; uniform float alpha; // Varying #ifdef TRANSPARENT varying vec4 vCameraSpacePosition; #endif varying vec3 vPosition; varying vec3 vNormal; #include<__decl__lightFragment>[0..maxSimultaneousLights] #include<lightsFragmentFunctions> #include<shadowsFragmentFunctions> #include<clipPlaneFragmentDeclaration> #include<fogFragmentDeclaration> float getVisibility(float position) { // Major grid line every Frequency defined in material. float majorGridFrequency = gridControl.y; if (floor(position + 0.5) == floor(position / majorGridFrequency + 0.5) * majorGridFrequency) { return 1.0; } return gridControl.z; } float getAnisotropicAttenuation(float differentialLength) { const float maxNumberOfLines = 10.0; return clamp(1.0 / (differentialLength + 1.0) - 1.0 / maxNumberOfLines, 0.0, 1.0); } float isPointOnLine(float position, float differentialLength) { float fractionPartOfPosition = position - floor(position + 0.5); // fract part around unit [-0.5; 0.5] fractionPartOfPosition /= differentialLength; // adapt to the screen space size it takes fractionPartOfPosition = clamp(fractionPartOfPosition, -1., 1.); float result = 0.5 + 0.5 * cos(fractionPartOfPosition * PI); // Convert to 0-1 for antialiasing. return result; } float contributionOnAxis(float position) { float differentialLength = length(vec2(dFdx(position), dFdy(position))); differentialLength *= SQRT2; // Multiply by SQRT2 for diagonal length // Is the point on the line. float result = isPointOnLine(position, differentialLength); // Add dynamic visibility. float visibility = getVisibility(position); result *= visibility; // Anisotropic filtering. float anisotropicAttenuation = getAnisotropicAttenuation(differentialLength); result *= anisotropicAttenuation; return result; } float normalImpactOnAxis(float x) { float normalImpact = clamp(1.0 - 3.0 * abs(x * x * x), 0.0, 1.0); return normalImpact; } void main(void) { #include<clipPlaneFragment> vec3 viewDirectionW=normalize(vEyePosition-vPositionW); #ifdef NORMAL vec3 normalW=normalize(vNormalW); #else vec3 normalW=vec3(1.0,1.0,1.0); #endif // Scale position to the requested ratio. float gridRatio = gridControl.x; vec3 gridPos = (vPosition + gridOffset) / gridRatio; // Find the contribution of each coords. float x = contributionOnAxis(gridPos.x); float y = contributionOnAxis(gridPos.y); float z = contributionOnAxis(gridPos.z); // Find the normal contribution. vec3 normal = normalize(vNormal); x *= normalImpactOnAxis(normal.x); y *= normalImpactOnAxis(normal.y); z *= normalImpactOnAxis(normal.z); // Create the grid value by combining axis. float grid = clamp(x + y + z, 0., 1.); // Create the color. vec3 color = mix(mainColor, lineColor, grid); #ifdef FOG #include<fogFragment> #endif #ifdef TRANSPARENT float distanceToFragment = length(vCameraSpacePosition.xyz); float cameraPassThrough = clamp(distanceToFragment - 0.25, 0.0, 1.0); float opacity = clamp(grid, 0.08, cameraPassThrough * gridControl.w * grid); vec3 diffuseBase=vec3(0.,0.,0.); lightingInfo info; float shadow=1.; float glossiness=0.; #include<lightFragment>[0..1]; float sVal = (1.0-clamp(shadow,0.,1.))*alpha; gl_FragColor = vec4(mix(color.rgb, vec3(0.), sVal), opacity); #ifdef PREMULTIPLYALPHA gl_FragColor.rgb *= opacity; #endif #else // Apply the color. gl_FragColor = vec4(color.rgb, 1.0); #endif } ------------------------------------- precision highp float; // Attributes attribute vec3 position; attribute vec3 normal; // Uniforms uniform mat4 projection; uniform mat4 world; uniform mat4 view; uniform mat4 worldView; // Varying #ifdef TRANSPARENT varying vec4 vCameraSpacePosition; #endif varying vec3 vPosition; varying vec3 vNormal; #include<fogVertexDeclaration> void main(void) { #ifdef FOG vec4 worldPos = world * vec4(position, 1.0); #endif #include<fogVertex> #include<shadowsVertex>[0..maxSimultaneousLights] vec4 cameraSpacePosition = worldView * vec4(position, 1.0); gl_Position = projection * cameraSpacePosition; #ifdef TRANSPARENT vCameraSpacePosition = cameraSpacePosition; #endif vPosition = position; vNormal = normal; } If it is valid then here is the PR: https://github.com/BabylonJS/Babylon.js/pull/4684 Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 5, 2018 Share Posted July 5, 2018 https://www.babylonjs-playground.com/#UXCB15#49 i just not attach TRANSPARENT Mode in this https://www.babylonjs-playground.com/#UXCB15#50 Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 5, 2018 Share Posted July 5, 2018 https://www.babylonjs-playground.com/#UXCB15#51 Nockawa and Arte 2 Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 6, 2018 Author Share Posted July 6, 2018 Ideally I'd like the surface area where there's no line not to be transparent at all, but be able to set an opacity level and have shadow casted there. I didn't have time to check your progress, I really have to go to bed right now, I'll check tomorrow first in the morning. Thanks all for your help! Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 6, 2018 Author Share Posted July 6, 2018 Wow @NasimiAsl I just saw your last PG, it looks awesome ! I believe I going to try and import your shader code directly in my project and see if it works so well (no reason it shouldn't), many thanks to you! It just would take 1 to 2 days, currently the code path using the grid material with shadow is being rewritten and I need to finish it to get result on screen. I couldn't take time to go down in customizing shaders again, I've not done that for a moment, it got GC out of my brain since a while.. Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 11, 2018 Author Share Posted July 11, 2018 @NasimiAsl thanks again for your help, I've tried your version of the Grid Material and apparently the lighting is not behaving the same. You can take a look at this modified version of your PG: https://www.babylonjs-playground.com/#UXCB15#52, comment line 167 to enable your material. I took a quick look but couldn't find why there's a difference.. Thanks Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 11, 2018 Share Posted July 11, 2018 ok i check it now Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 11, 2018 Share Posted July 11, 2018 mm you most check this parameter material.getEffect().setVector3('mainColor', new BABYLON.Vector3(1,0.5,0.)); material.getEffect().setVector3('lineColor', new BABYLON.Vector3(0,0.5,1.)); material.getEffect().setVector4('gridControl',new BABYLON.Vector4(0.5,0.0,1.,0.)); material.getEffect().setVector3('gridOffset',new BABYLON.Vector3(1,0.5,0.)); https://www.babylonjs-playground.com/#UXCB15#53 gridControl is important setting but for correct answer i most ping @Sebavan Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 11, 2018 Author Share Posted July 11, 2018 yes, I did, I look at the Material's implementation on GitHub to know how to set the gridControl parameter, and in the PG I gave the settings of both your custom material and the Grid Material are the same (at least for the grid settings). Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 11, 2018 Share Posted July 11, 2018 r u see this ? https://www.babylonjs-playground.com/#UXCB15#53 Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 11, 2018 Author Share Posted July 11, 2018 I don't know what you changed between version 51 and 53. If you look at my version (52) and switch the material on line 167 you will see the original GridMaterial is much brighter. Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 11, 2018 Share Posted July 11, 2018 51 : material.getEffect().setVector4('gridControl',new BABYLON.Vector4(1,0.5,0.,0.)); 53 : material.getEffect().setVector4('gridControl',new BABYLON.Vector4(0.5,0.0,1.,0.)); Quote Link to comment Share on other sites More sharing options...

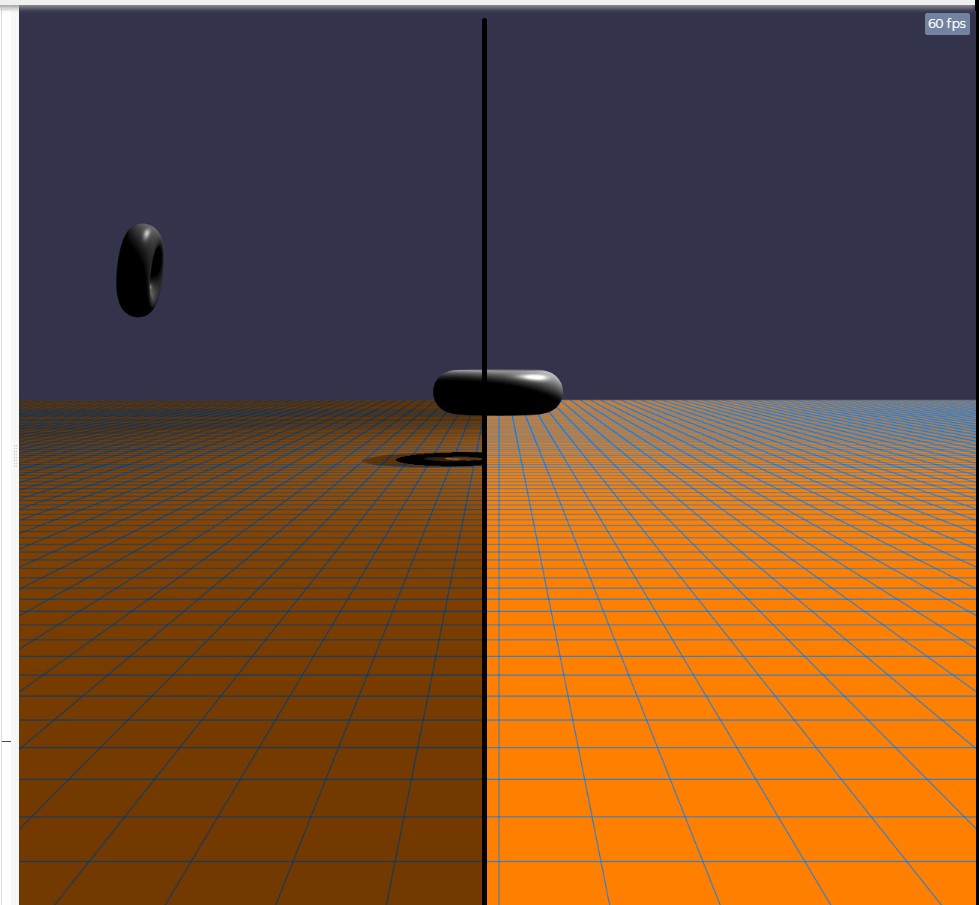

Nockawa Posted July 11, 2018 Author Share Posted July 11, 2018 These are the settings to change the Grid line spacing. I'm talking about the color of the material, look at the screenshot below Left part is your shader, right part is the GridMaterial, it's much brighter.v Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 11, 2018 Share Posted July 11, 2018 that is all about light and shadow effect attached to color Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 11, 2018 Author Share Posted July 11, 2018 5 minutes ago, NasimiAsl said: that is all about light and shadow effect attached to color but the rendering should be the same if I use the same material color and light properties, right? Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted July 11, 2018 Share Posted July 11, 2018 dear @Nockawa that is result with out light and shadow https://www.babylonjs-playground.com/#UXCB15#57 use with customMaterial so i think the light change that same as standard material but you can channage it before fragcolor too material.Fragment_Before_FragColor(` float f1 = 1.2; if(vPositionW.x > 0.){ color.x = pow(color.x,f1)*f1; color.y = pow(color.y,f1)*f1; color.z = pow(color.z,f1)*f1; color.w = 1.; } `); https://www.babylonjs-playground.com/#UXCB15#56 Quote Link to comment Share on other sites More sharing options...
Nockawa Posted July 11, 2018 Author Share Posted July 11, 2018 ok thank you, I now understand better. I think the GridMaterial's implementation has a different lighting model, more simple than Standard/Custom material. I'll try take a closer look at how I could emulate the same result. Thanks again for you help, time and patience! NasimiAsl 1 Quote Link to comment Share on other sites More sharing options...
