Shadow95 Posted March 11, 2018 Share Posted March 11, 2018 Hello, I have an image which I created bits by bits with hand includes only black and white areas to use in heightmap creation. Also, I have two spheres named as cat and rat. When I disabled the physics the spawn for cat and rat is correct, but when I have enabled with HeightmapImpostor and SphereImpostor, cat is correctly spawned but rat is not the coordinate what I want. You can think of heightmap as a maze only. I want to use its walls only to handle collisions. I did try normal plane and heightmap with different y coordinates, but it did not work. I think only problem is the Impostors. Because I did try Plane and spheres and their impostors without heightmap and it worked. What can I do to create the maze which I want it for only its walls, so I can construct plane + walls + spheres, and no sphere spawn error. Note: I have chosen heightmap because it is simple, with blocks(cupes) walls can be created, but I could not place the cubes on the plane. If you explain how to read from image and understand the color, and how to use plane to place the cubes or not, I believe I can create walls. I have tried canvas and image, but only value I can get is 0,0,0,0 which is nonsense by the way because there are other colors in the image Forgot to mention I have tried to change ellipsoid and ellipsoidOffset, believing maybe work but they did not I am using CannonJS, you can suggest another for above mentioned problem to solve Quote Link to comment Share on other sites More sharing options...
Wingnut Posted March 11, 2018 Share Posted March 11, 2018 Hiya s95! Ya gotta look at this thing... from user @BitOfGold I think. It is SO nice... that any maze game programmer SHOULD look it over. No physics... but darned good collisions. For YOUR maze.. you need to convert black and white image... to walls of maze (let's start by using boxes, like the PG demo above). So, you can temporarily turn OFF physics and heightmaps. Let's concentrate first... on creating basic box walls... FROM your black and white image. Luckily, a BJS founding father/user named @davrous did a strange project called "QR-Code Maze"... and I'm pretty sure... is uses a black and white image... to create maze walls. But, I didn't read it. He might be using an array for the QR-Code image. https://www.davrous.com/2014/02/19/coding4fun-tutorial-creating-a-3d-webgl-procedural-qrcode-maze-with-babylon-js/ I'm a little busy right now, but this is something, at least. I am quite sure that we CAN use black and white pixels from your image... as a 'map' to produce mesh in wanted positions. The "canvas and image" thing you tried... WILL work. A simple mistake of some kind... caused your 0,0,0,0 results for all pixel values. Possibly, the image was not yet .isReady when you tried reading pixels from its buffer. Perhaps it silently 404'd, too. *shrug* I have not done much work with imageBuffers and other context2d things... except maybe this: https://www.babylonjs-playground.com/#11JINV#58 It just gathers an imageBuffer from a BabylonJS GUI-control canvas, fills it with random colors, and puts it back. Perhaps helpful, perhaps not. I will do some study on this, soon. I'm sure others have comments and helpful playgrounds, too. An in-playground-code search for 'getContext' might produce a pile of playgrounds where others have played-with context 2d stuff. http://doc.babylonjs.com/playground?code=getContext Your project is very cool and interesting! Stay tuned. Let's build/position boxes from your image, first. Later we will add physics and heightmaps... if wanted. One issue at a time, perhaps. Talk soon. Quote Link to comment Share on other sites More sharing options...
Shadow95 Posted March 12, 2018 Author Share Posted March 12, 2018 thanks for reply I will try your suggestions Quote Link to comment Share on other sites More sharing options...
BitOfGold Posted March 12, 2018 Share Posted March 12, 2018 @Wingnut thanks for the mention, this is the maze playgorund: http://www.babylonjs-playground.com/#LYCSQ#250 I started it but its now at version 265 I think? Others are re-working it. Quote Link to comment Share on other sites More sharing options...
BitOfGold Posted March 12, 2018 Share Posted March 12, 2018 About the heightmap: the BABYLON physics plugins make a heightmap body out of the "ground" body, but only an approximation, so it only works if the terrain is "soft" (no big height changes). I think it is better to use boxes for the maze, and heightmap (or a box) for a "soft" terrain. Quote Link to comment Share on other sites More sharing options...
RaananW Posted March 12, 2018 Share Posted March 12, 2018 Hi @BitOfGold, not sure what you mean by that? Babylon's cannon plugin (not oimo, as oimo doesn't support heightmap) uses cannon's heightmap, which is actually a wonderful heightmap implementation. It is true that the heightmap should be prepared in a certain way, otherwise the physics engine will not be able to udnerstand it, but it is very accurate. Do you have any example where it is not so? Quote Link to comment Share on other sites More sharing options...
BitOfGold Posted March 12, 2018 Share Posted March 12, 2018 @RaananW I agree, Cannon heightmap is good - the problem is with the algorithm that makes a Cannon heightmap from a mesh. I made a racetrack with blender, sculpted and about 40k vertices. The vertices are not at all at a regular grid, and the mesh is not rectangular. Maybe that is the problem, BABYLON's ground works much better in his situation! The resulting Cannon heightmap was not at all usable, because it had "bumps" where the plugin filled the (sparse) heights. I'm trying to make an example, because I ported a code from cannon to SHOW the heightmap: https://github.com/schteppe/cannon.js/blob/569730f94a1d9da47967a24fad0323ef7d5b4119/build/cannon.demo.js#L977 Also I made a better create cannon heightmap that fills the "holes" in the heightmap with a variation of Dijkstra map. It works much better (for me), maybe someone can use it for a similar problem. Showing is the best telling so I'm back in a few hours... Wingnut and RaananW 2 Quote Link to comment Share on other sites More sharing options...
Wingnut Posted March 12, 2018 Share Posted March 12, 2018 Good thinkings, guys. Thx for the help. @RaananW... do you remember if any of the entries from the maze-making contest... used a heightmap for its walls? That would be good to see. We SHOULD be able to get good no-taper corners and 90 degree angles... with a heightMap... if the heightMap image has good, clean, no-dither/no-aliasing gray-scale color demarcations at height-change points. Let's try one. https://www.babylonjs-playground.com/#131CZC#1 Yeah, ALMOST vertical walls. *shrug* The image I chose MIGHT have color dithering/anti-aliasing between colors. Shadow95, perhaps you could try YOUR image in that playground... see what you think. Using the image to produce a heightmap-based maze... would be easiest. Other methods are available, just maybe not as easy as this one. But there are interesting challenges... when using physics for collisions... mainly in navigating the player character. Quote Link to comment Share on other sites More sharing options...
RaananW Posted March 12, 2018 Share Posted March 12, 2018 Babylon's heightmap calculator makes a few assumptions - the mesh is square, and that the vertices are sorted in the way CreateGround is sorting them. This is true. The problem is that otherwise it is (almost) impossible to automate. The solution for that would be to use the MeshImpostor, which will work as well. If anyone wants to find a way to automate babylon-mesh to cannon-heightmap without those prerequisites, we all will be very happy! Quote Link to comment Share on other sites More sharing options...
BitOfGold Posted March 12, 2018 Share Posted March 12, 2018 Here it is, press SPACE to show debug mesh on ground. https://www.babylonjs-playground.com/#131CZC#27 This shows that create cannon heightmap works well with a groundmesh (as expected) Quote Link to comment Share on other sites More sharing options...

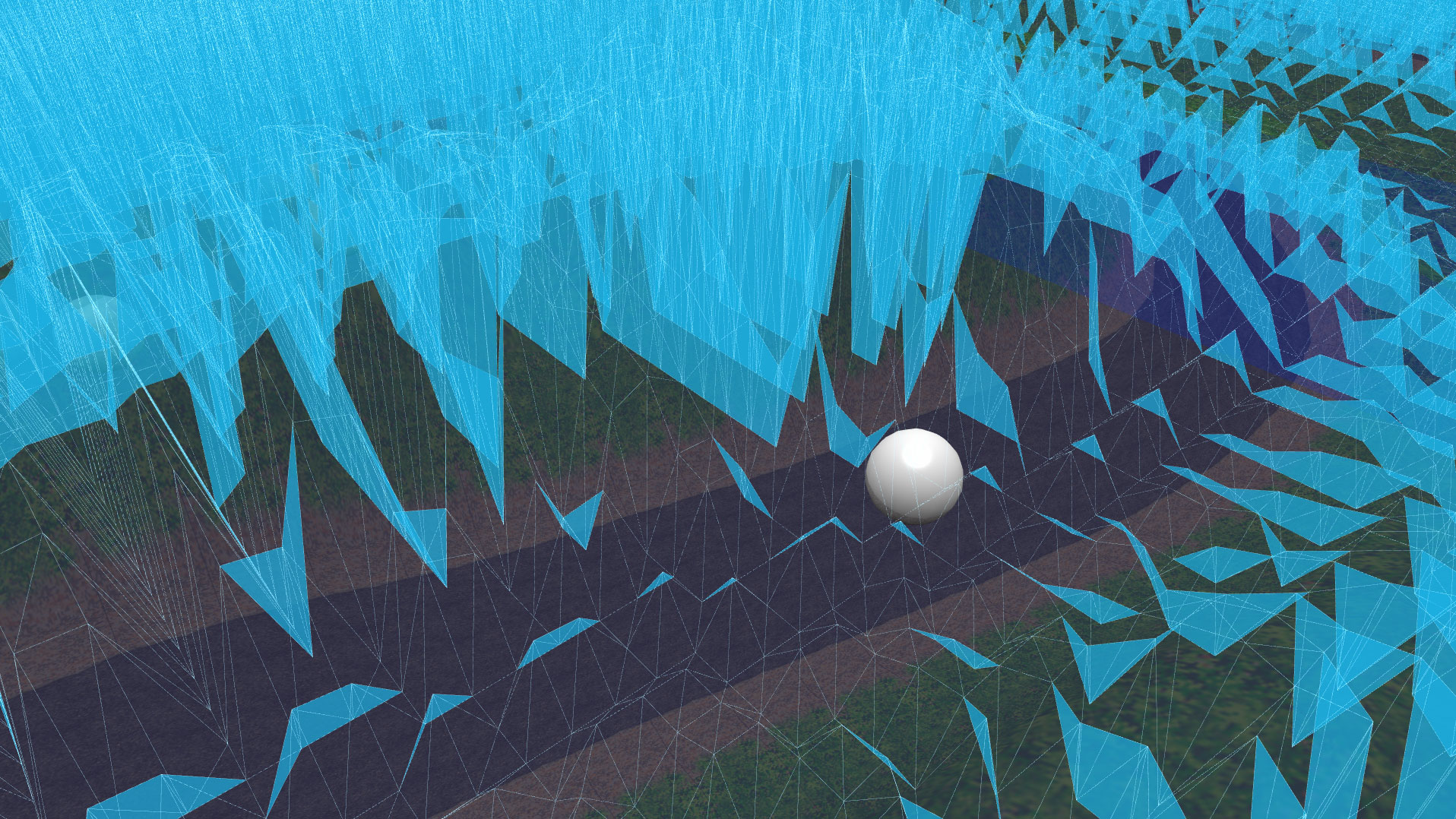

BitOfGold Posted March 12, 2018 Share Posted March 12, 2018 This loads my little racetrack. SPACE starts the heightfield debug (Take caution it can freeze the browser for a minute) https://www.babylonjs-playground.com/#131CZC#34 As you see from the image, the cannon heightfield is not usable, it has bumps and objects fall over. Wingnut 1 Quote Link to comment Share on other sites More sharing options...
RaananW Posted March 12, 2018 Share Posted March 12, 2018 this is mainly due to the limitations stated above. have you tried MeshImpostor? or was it too complex? Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted March 12, 2018 Share Posted March 12, 2018 I tried meshimposter and its too complex kills the scene (even with timeset adjustments) and objects still drop through. Quote Link to comment Share on other sites More sharing options...
BitOfGold Posted March 12, 2018 Share Posted March 12, 2018 Yes, even cannon heightmap is too slow (for my game, 8 vehicles + many obstacles, powerups and bullets, on a 4-5 yo laptop it runs with 4fps, on my PC 60fps) I'm now working on Bullet physics on the server side (Node-js , with the wonderful colyseus library) My code is here but I can't get it to work. (It works better, fillse the holes and bumps, but I did not use the physics plugin, so this needs some rework) Maybe after some sleep... https://www.babylonjs-playground.com/#131CZC#37 Quote Link to comment Share on other sites More sharing options...
Wingnut Posted March 13, 2018 Share Posted March 13, 2018 https://www.babylonjs-playground.com/#131CZC#38 Still broke but dumps possibly-useful traceback to console. Quote Link to comment Share on other sites More sharing options...
