solved Doubt about inverted texture

[Pryme8]

Use A and D

[none-9999]

7 minutes ago, Pryme8 said:

https://pryme8.github.io/LSBAG/

A-D for left and right, space to fire.

This shows how to set up a ship with particles like you want.

https://github.com/Pryme8/LSBAG/blob/gh-pages/js/game.js

yes, i can... at first it not moved the ship

[Pryme8]

What browser are you using? Everything seems to work fine for me on chrome.  I never really tested it though, I tossed this example together in like 20 mins for a guy a while back so Im not sure if there are any bugs.

[none-9999]

3 minutes ago, diyo-games said:

yes, i can... at first it not moved the ship

Maybe the lights should be off while the ship is not moving ..?

[Pryme8]

That's all personal preference and you could easily tailor that... This just shows the structure and how to accomplish what you were asking with the particles.

You would just multiply the emit rate by the current engine output or what ever.

[none-9999]

3 minutes ago, Pryme8 said:

What browser are you using? Everything seems to work fine for me on chrome.  I never really tested it though, I tossed this example together in like 20 mins for a guy a while back so Im not sure if there are any bugs.

I think I pressed the keys but I did not keep them pressed, and since it's very slow, the acceleration is not noticeable, so I thought I was not moving (and that's why I tell you about the lights)

[none-9999]

2 minutes ago, Pryme8 said:

Esa es toda la preferencia personal y podría adaptarla fácilmente ... Esto solo muestra la estructura y cómo lograr lo que estaba pidiendo con las partículas.

Simplemente multiplicaría la tasa de emisión por la salida actual del motor o lo que sea.

aa ok, thanks

[Pryme8]

it should be running at 60 fps,  is it not?  Please explain slow so I can fix.

[Sebavan]

@diyo-games you have to invert the sprite orientation on U as well.

In naves.js line 21 add this.flash.invertU = true;

I am marking as solved and please create other thread for other issues.

[none-9999]

1 hour ago, Sebavan said:

@diyo-games you have to invert the sprite orientation on U as well.

In naves.js line 21 add this.flash.invertU = true;

I am marking as solved and please create other thread for other issues.

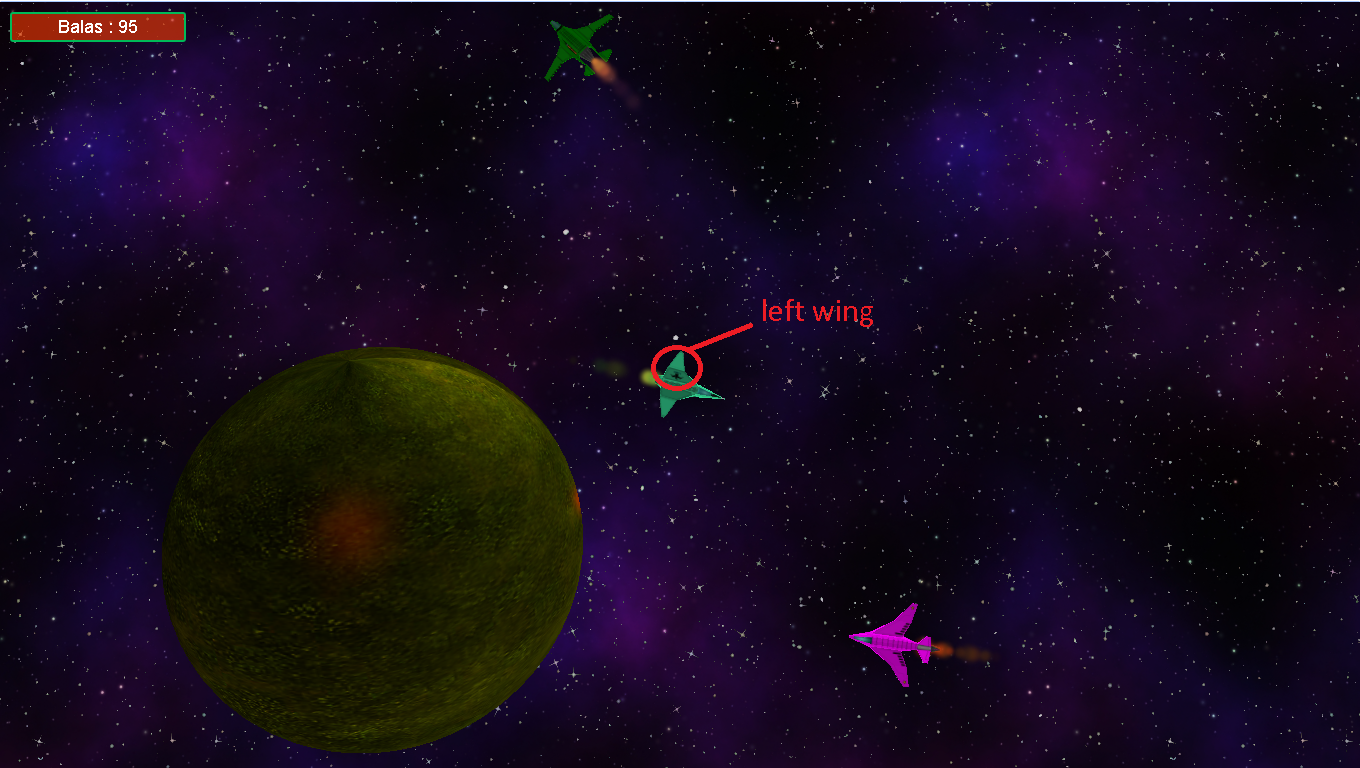

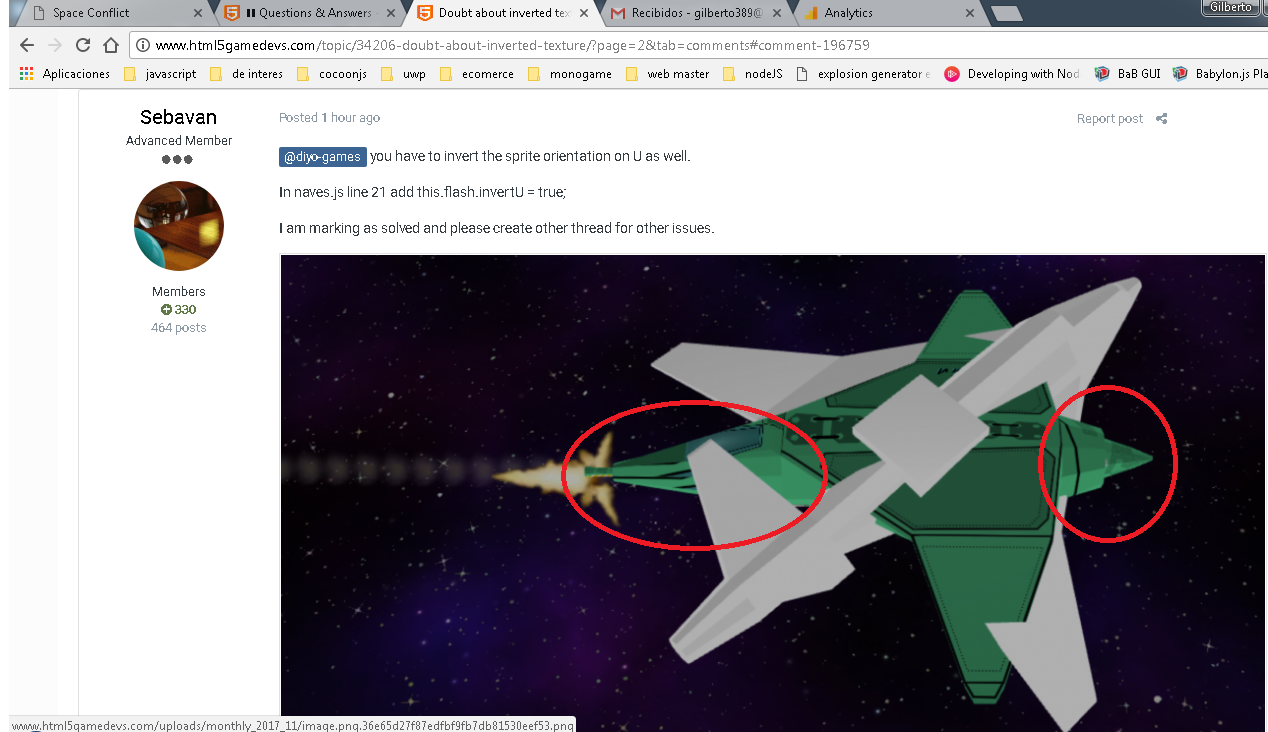

not it is solved :

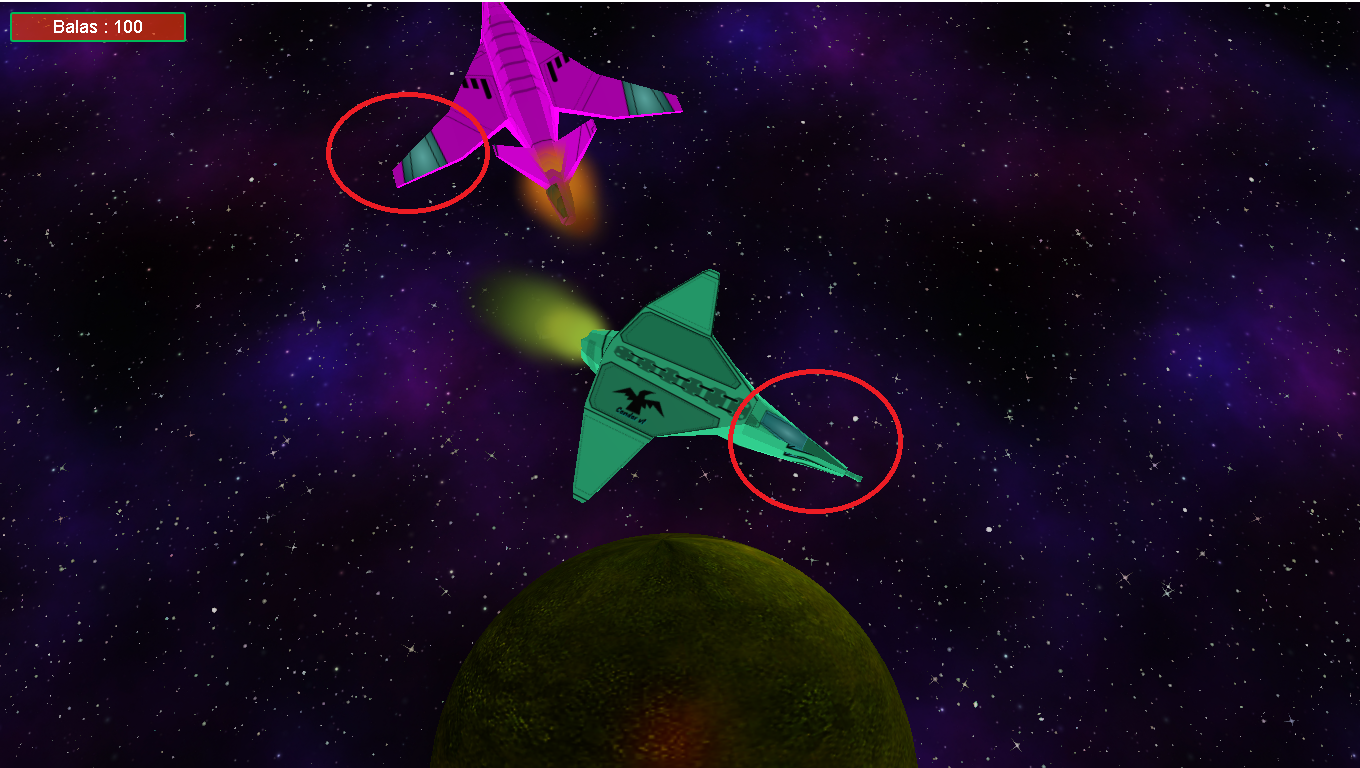

yes, the logo appears on the right wing, but the front and back are damaged.



[Pryme8]

Fix your UV on your model then prior to importing it to BJS in your modeling software.

[none-9999]

16 hours ago, Pryme8 said:

Fix your UV on your model then prior to importing it to BJS in your modeling software.

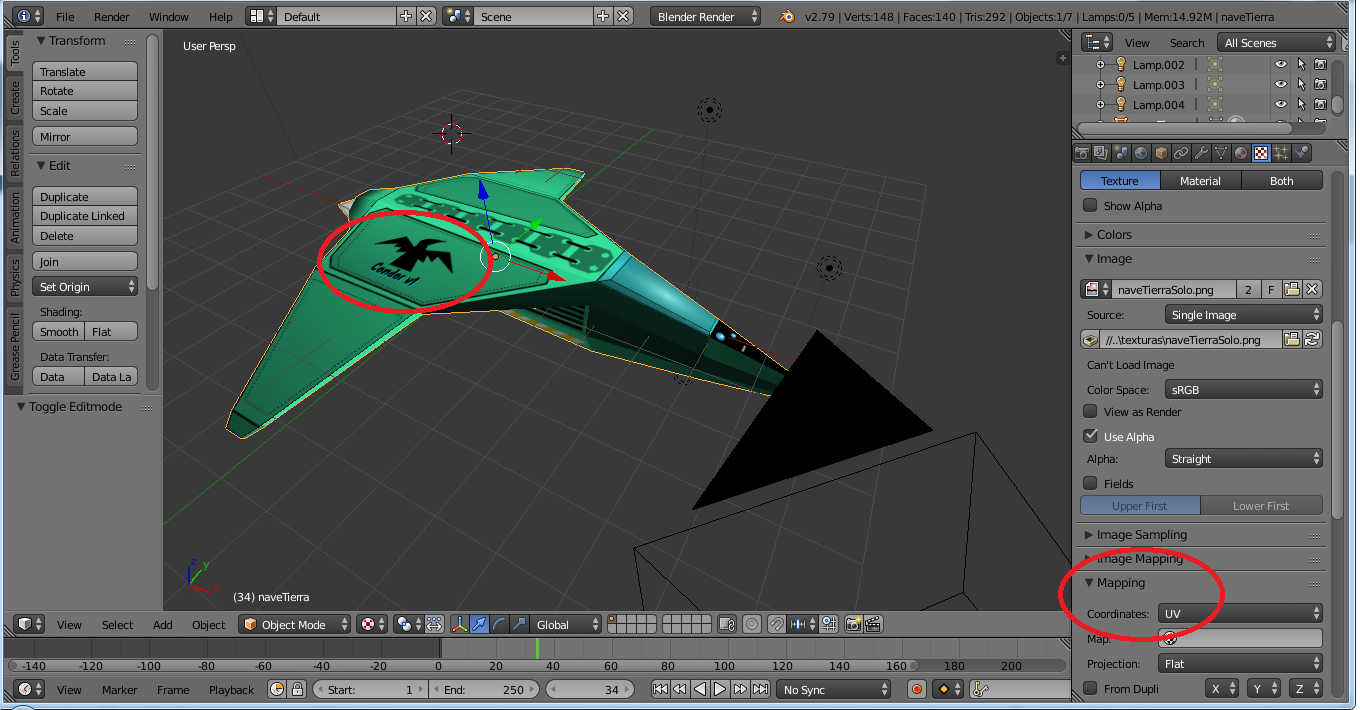

hi, this is good, in blender it is ok

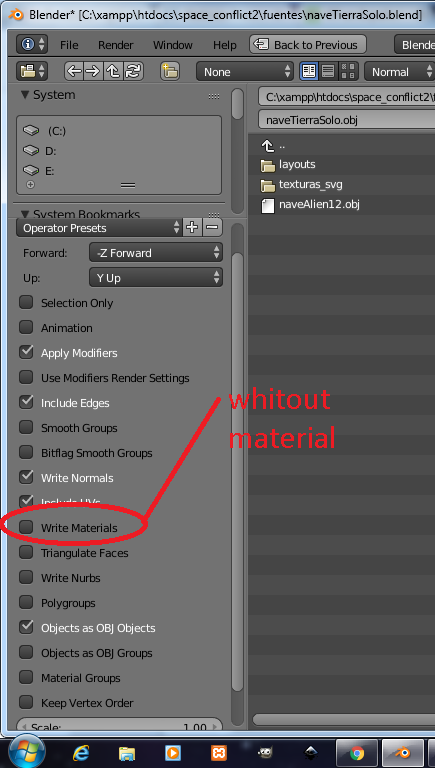

export :





even if I export the material, (the texture is in the obj directory) it also flips

[Pryme8]

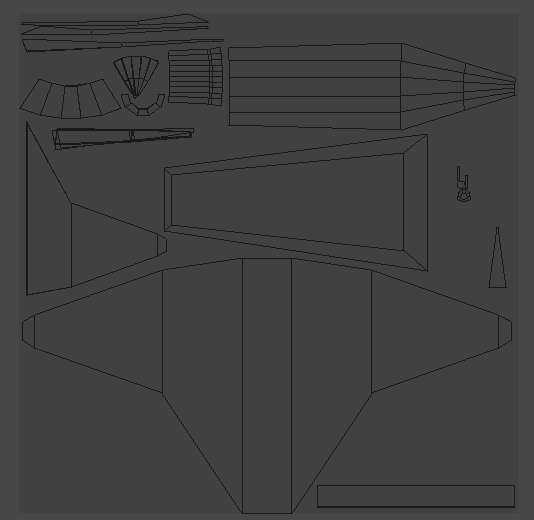

Well here is your UV, what does your texture look like?


*EDIT*

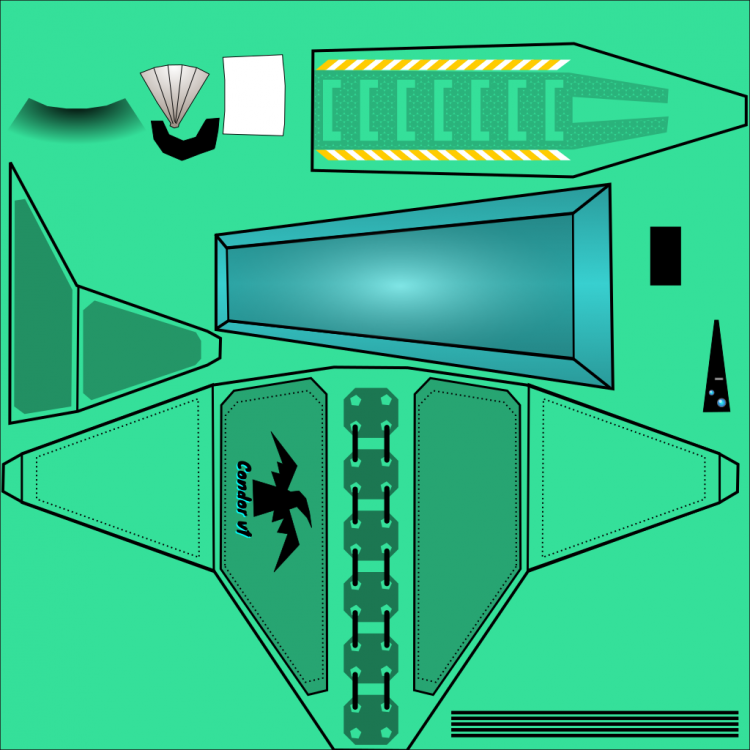

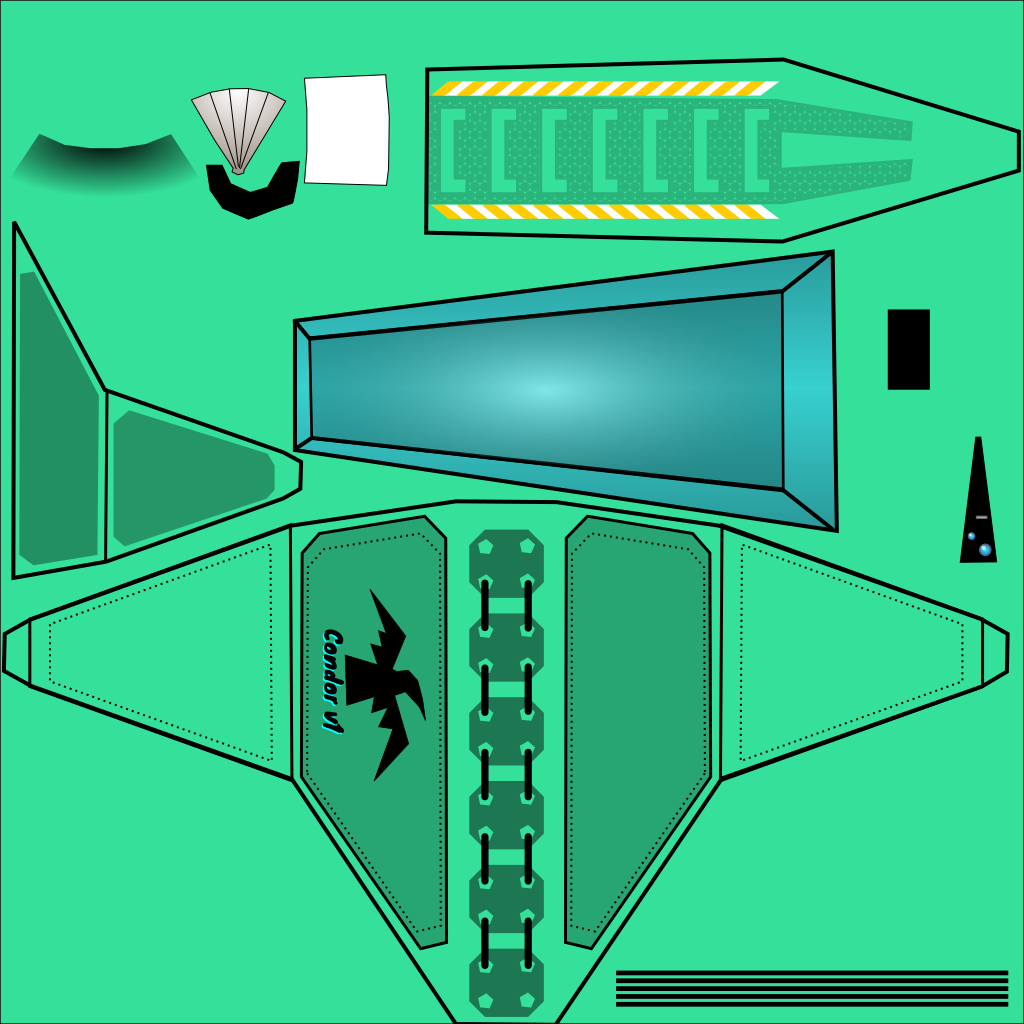

Well here is the texture:

Actually not too sure why its off after looking at this.  I would need to dig deeper, Im thinking its gotta be a UV on the model error though even though I can not see where at this moment.

[Pryme8]

Ohh dumb dumb dumb do you have BABYLON.OBJFileLoader.OPTIMIZE_WITH_UV = true;
set?

[Sebavan]

@JCPalmer do you ever had this?

[Pryme8]

@diyo-games

add this to your scene BABYLON.OBJFileLoader.OPTIMIZE_WITH_UV = true;
before you import any obj's and see if its fixes it.

I have a sneaking suspicion it will.



@Sebavan  Do you know the specifics behind using this flag and not?

[JCPalmer]

Yea, as soon as I saw this I had a pretty good idea what the problem was, but saw they were using a different Blender output option, so I moved on.  This was not my problem.

FYI, the default setting for the invertY arg of the Texture constructor is TRUE. In fact, there is no way inside the structure of a .babylon file to not default.  Guess the shaders were just designed to access textures inverted.

I noticed when doing a fully scale test of compressed textures using the mansion scene that things were off.  The grave stone writing was upside down.

[none-9999]

3 minutes ago, Pryme8 said:

@diyo-games

add this to your scene BABYLON.OBJFileLoader.OPTIMIZE_WITH_UV = true;
before you import any obj's and see if its fixes it.

I have a sneaking suspicion it will.



@Sebavan  Do you know the specifics behind using this flag and not?

nothing, equal

[Pryme8]

Nothing equal?

[none-9999]

3 minutes ago, Pryme8 said:

Nothing equal? (it did not work)

[Pryme8]

With adding this we are not looking at the wings we are looking to fix the glitchs of the graphics on the fuselage.

[none-9999]

4 minutes ago, Pryme8 said:

With adding this we are not looking at the wings we are looking to fix the glitchs of the graphics on the fuselage.

??



The nickname of the player and the flag of their country will be placed on the wings.

[Pryme8]

Thats fine, but if you look at:



You will see that the wings are fine.  Im trying to see if the BABYLON.OBJFileLoader.OPTIMIZE_WITH_UV = true; line fixs these glitchs on the front and back.

If so then you use that and flip your U and everything should be fixed.

[none-9999]

4 minutes ago, Pryme8 said:

Thats fine, but if you look at:



You will see that the wings are fine.  Im trying to see if the BABYLON.OBJFileLoader.OPTIMIZE_WITH_UV = true; line fixs these glitchs on the front and back.

If so then you use that and flip your U and everything should be fixed.

OK I will try it

[none-9999]

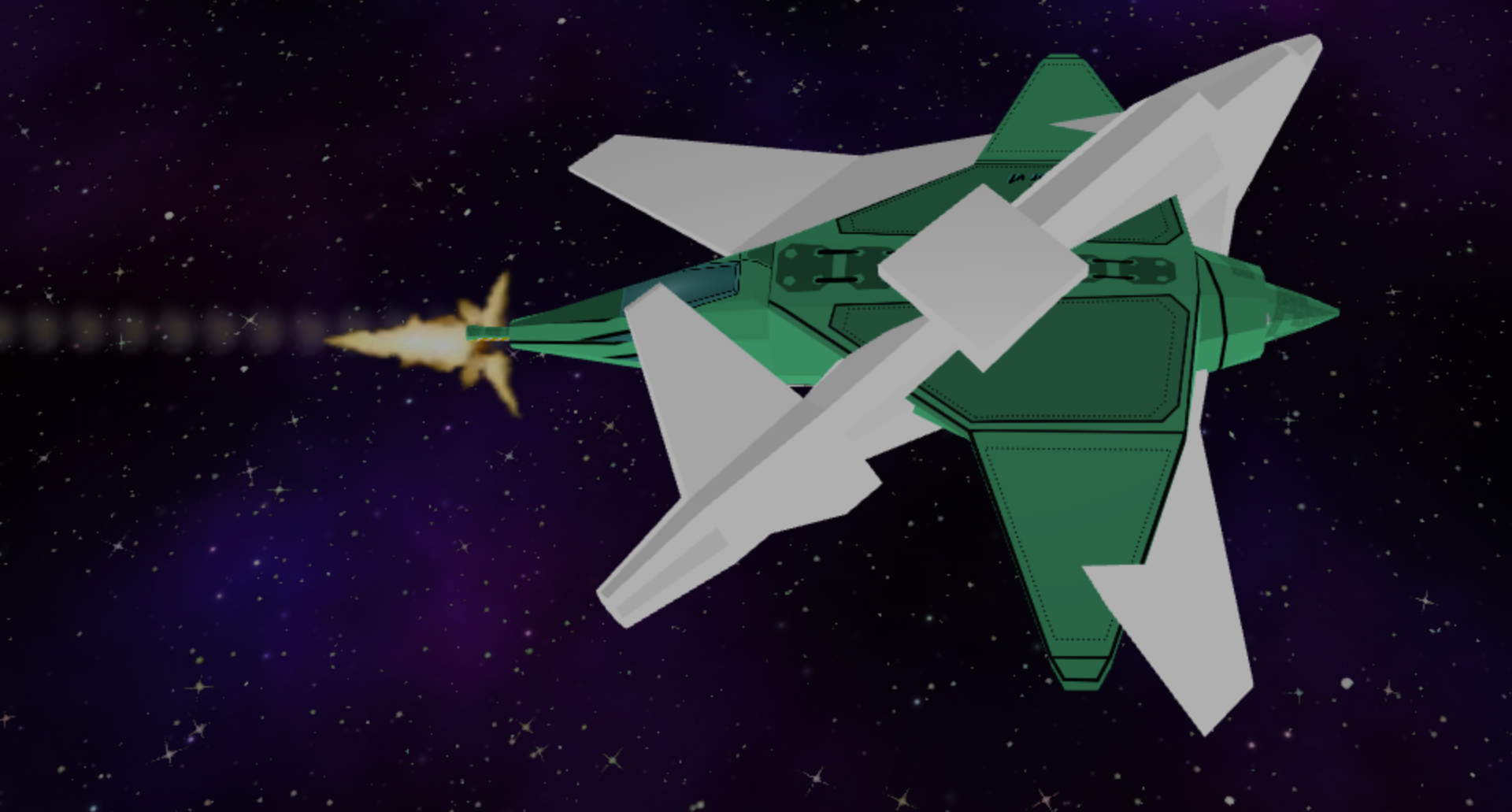

bad..



this.mesh ={};
	this.material= new BABYLON.StandardMaterial(this.name+"_material", scene);
	this.material.diffuseColor = new BABYLON.Color3(0.8, 0.8, 0.8);
	this.material.specularColor = new BABYLON.Color3(0.05, 0.05, 0.05);
	//this.material.invertU = -1;
	if(textureMat != null){
		//this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene);
		this.material.diffuseTexture = new BABYLON.Texture("texturas/"+textureMat, scene, false, false);
		this.material.diffuseTexture.uScale = -1; // Mirror Horizontally
		this.material.diffuseTexture.vScale = -1; // Mirror Vertically
	}

i tried all combinations
