Texture Scale

[Robin]

  Hi guys, I am confused about texture uScale and vScale, and need some help.

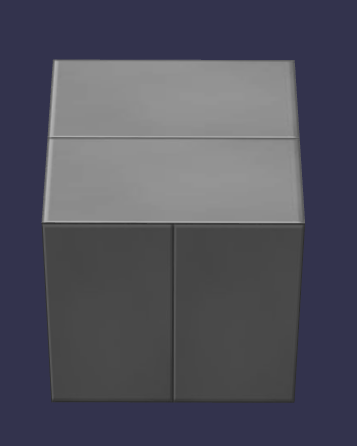

Below is my code and a screenshot of the result, which is opposited to what I expect. For my understanding, uScale=2 will repeat image twice along x axis.

Thank you.

var groundMat = new BABYLON.StandardMaterial("ground",  game.scene);
groundMat.diffuseTexture = new BABYLON.Texture("assets/ground.png", game.scene);
groundMat.diffuseTexture.uScale = 2;





[Pryme8]

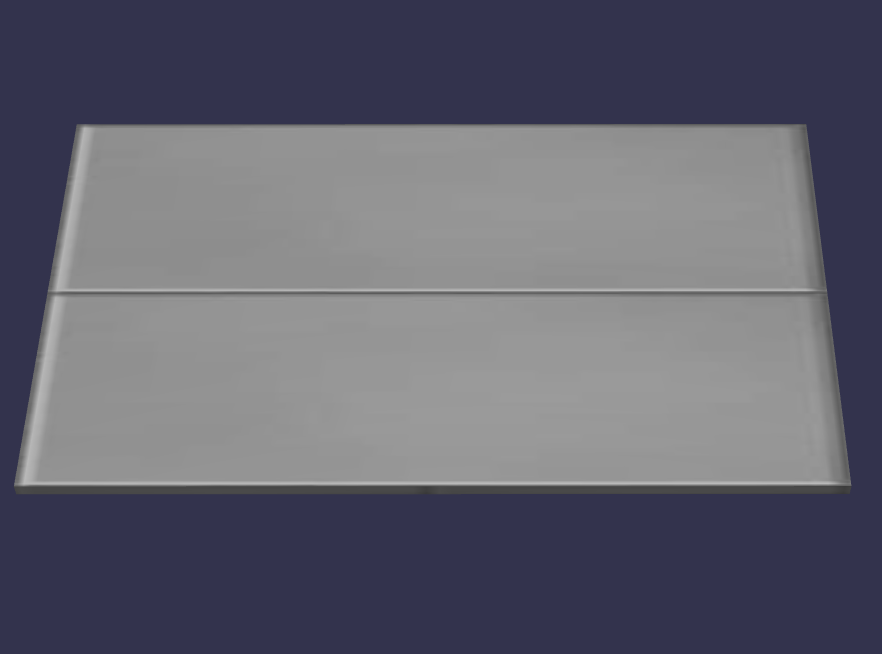

http://www.babylonjs-playground.com/#XJHNXG

Your camera is just aligned wrong.

[Robin]

 Thank you for the reply. My camera is located same with the demo. But I used a box and scaled the y axis instead of calling the ground function. (Because I want the ground has a little thick)

As u know, box has six faces; a ground has only one. What I can guess is, uScale=2 indeed repeat  texture twice  along u axis. For the box, the u axis of its front face is along x axis; while the u axis of its top face may along y axis.

Correct me if I am wrong. Thank you.





[Pryme8]

You just need to construct your own cube then and have the uv’s aligned in the manor that will work for you.

[GameMonetize]

More about custom UV:http://doc.babylonjs.com/how_to/createbox_per_face_textures_and_colors#box-faceuv

[jerome]

I'll add the parameter to allow to build the box with custom UVs soon
