How to move the camera in front of a mesh

[MehdiZagouri]

Hello ,

It's my first post in the forum.

I need your help.

When i click in a mesh , i need the camera get in front of the Mesh.

Thanks for your answers.

[Raggar]

Maybe you could create a playground example to show us what you want?

Here's a simple example: http://playground.babylonjs.com/#GSPKL6

But that doesn't take camera rotation into account, and only changes the camera's X-position.

[MehdiZagouri]

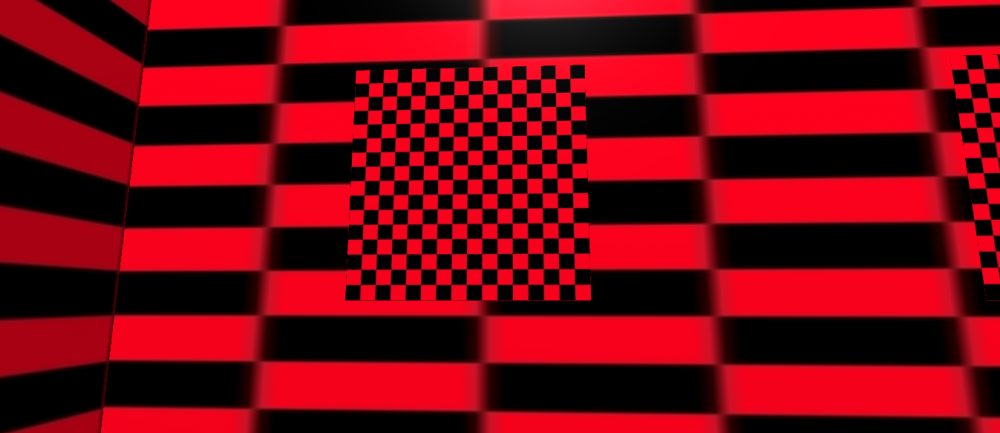

This is my scene , it's a musuem !

with meshes (Pictures)

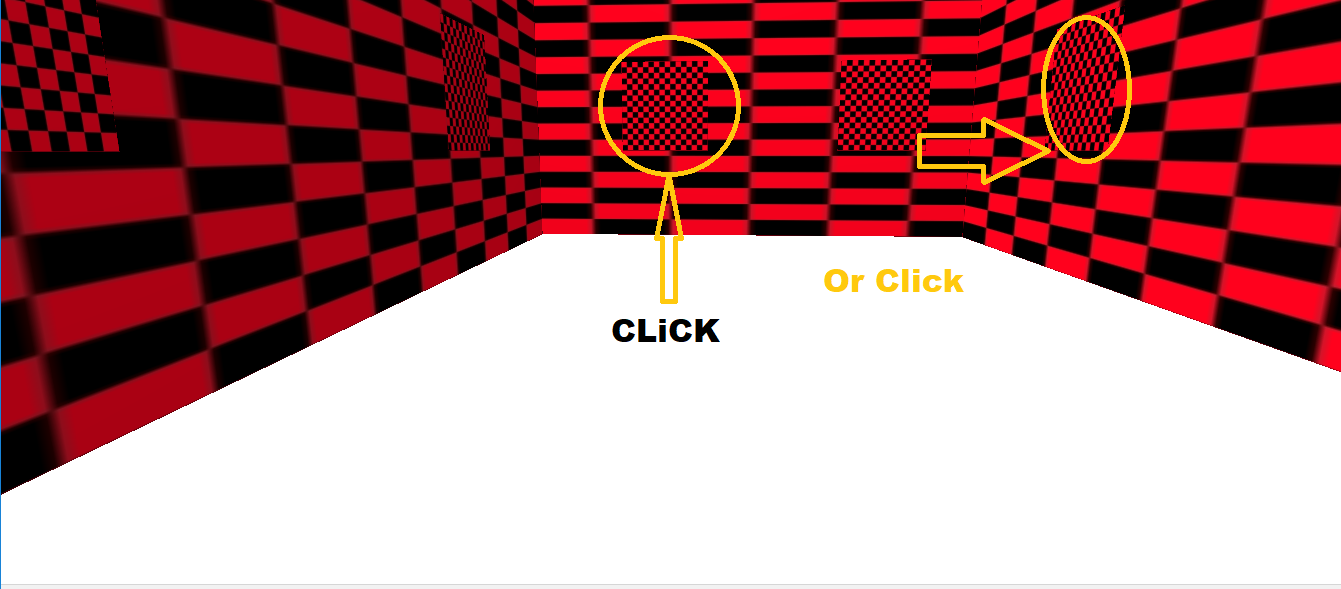

When i click into a mesh , i need the camera move in front of the picture , in order to see it " like a visitor "

[Arte]

Hi @MehdiZagouri

move camera to you position:

camera.setPosition(new BABYLON.Vector3(x,y,z));

and

camera.target = picture.position;

[MehdiZagouri]

Hi @Arte

I really appreciate your help !

I tried this solution before , the issue is that , when i click in mesh "picture"' , the camera get the position of the mesh , that's not what i need , i need the camera just in front of the picture with a distance.

so when camera.position = picture.position ; i cannot see the picture , but i'm in the picture if you know what i mean !

Thank you so much.

[adam]

Something like this should work:

var dir = pictureMesh.getDirection(pictureLocalForwardAxis);

camera.setPosition(dir.scale(distInFront).add(picture.position));

[jerome]

or by using FacetData : http://doc.babylonjs.com/how_to/how_to_use_facetdata#facet-normal

[Arte]

Or predefined visitor position like:

picture.metadata.visitorPosition = x,y,z;

[MehdiZagouri]

Thanks for all your answers !

I tried your solutions, but sometimes i don't know how to use them ,so i get a lot of unknown errors !

I tried this solution ! so i get  next to the mesh, know i need only to focus the direction of the camera in to the mesh " picture '" wich is Tableau[t] in my code :



                     if (pickResult.pickedMesh==Tableau[t])
                        {
                         console.log("Coucou");

                            while (BABYLON.Vector3.Distance(camera.position,Tableau[t].position) > 5)
                            {

                                console.log(BABYLON.Vector3.Distance(camera.position,Tableau[t].position));

                                if (camera.position.x >Tableau[t].position.x + 2 )
                                {
                                    camera.position.x -= 0.5;
                                }
                                else if (camera.position.x <Tableau[t].position.x + 2 )
                                {
                                    camera.position.x += 0.5;
                                }

                                if (camera.position.z >Tableau[t].position.z +2)
                                {
                                    camera.position.z -= 0.5;
                                }
                                else if (camera.position.z <Tableau[t].position.z +2 )
                                {
                                    camera.position.z += 0.5;
                                }


                            }

                             //camera.setTarget = Tableau[t].position;


                        }

[Arte]

@MehdiZagouri

My working option PG.

I hope this will help you.



*************

Edited:

Sorry i forgot line camera.target=pickInfo.pickedMesh.position;

playground.babylonjs.com/#DG8ETH#1

[MehdiZagouri]

Thank you very much @Arte,

Your solution is great, it works properly , without bugs

I really appreciate your help.
