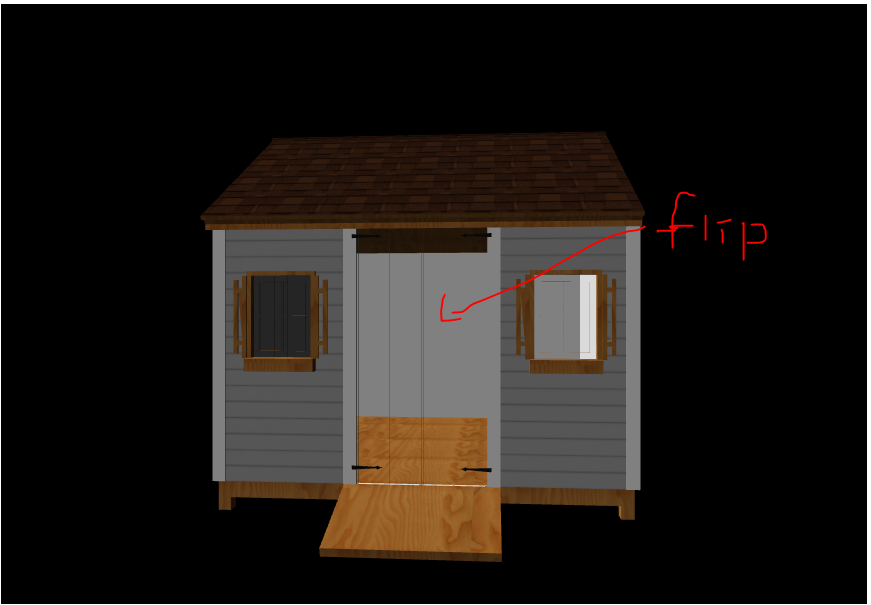

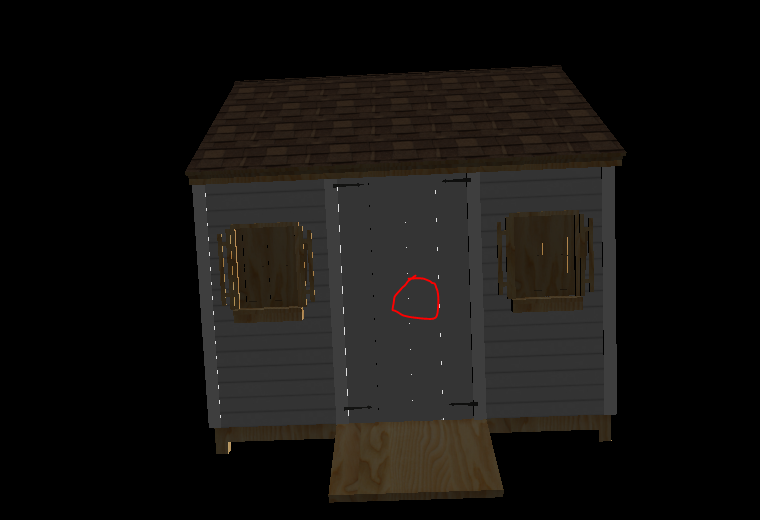

lingkernyurk. Posted October 20, 2017 Share Posted October 20, 2017 Hi. I am babylonjs beginer. I am going to develop viewer to loading obj file using babylon.js however. face flip is happened in work. normal vector was reversed. I don't know why that happen. this is image using assimp viewer. next: using babylon.js pleas help me! I believe your capacity. Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted October 20, 2017 Share Posted October 20, 2017 Can you share your obj? Quote Link to comment Share on other sites More sharing options...
lingkernyurk. Posted October 21, 2017 Author Share Posted October 21, 2017 Hi. Deltakosh Thanks your Replay. please check http://shedbuilder.cmux.co/sheds/ send My file. I believe you will help me. best regards. THE PONDEROSA.rar Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted October 23, 2017 Share Posted October 23, 2017 Thanks ! I created the issue here: https://github.com/BabylonJS/Babylon.js/issues/3004 We will have a look asap! Quote Link to comment Share on other sites More sharing options...
Temechon Posted October 24, 2017 Share Posted October 24, 2017 Hello @lingkernyurk., It seems your OBJ file don't have the correct normals for the door. I downloaded your OBJ and opened it with 3DSMax, here is what I can see : See the dark red color ? It indicates the normals are flipped. It's the same for the other part of the door (you can compare with the lighter red on the house) : For me it doesn't look as a bug. One way to disable it Babylon side would be to set the corresponding material like this: scene.getMaterialByName('JoinedMaterial__3').backFaceCulling = false; GameMonetize 1 Quote Link to comment Share on other sites More sharing options...
