[solved] Use ArcRotateCamera with imported STL file

ziguri · September 19, 2017

Hi,

i am loading a STL file as described in https://doc.babylonjs.com/extensions/stl

My aim is to use the ArcRotateCamera to view, rotate, zoom the 3D Modell.

Is based my code on this example (http://www.babylonjs-playground.com/#1GM4YQ) and replaced the Import Mesh part with the STL import. Therefore hand.js and babylon.stlFileLoader.js are imported. The STL files are in binary and ascii (i tried both). Please find the example STL files (just a cube) attached.

Here the code:

<!DOCTYPE html>
<html>
    <head>
        <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />

        <title>Babylon.js sample code</title>
        <!-- Babylon.js -->
		<script src="lib/dist/babylon.js"></script>
		<script src="lib/dist/loaders/babylon.stlFileLoader.js"></script>
        <script src="handjs/bin/hand.js"></script>

		<script src="https://preview.babylonjs.com/cannon.js"></script>
        <script src="https://preview.babylonjs.com/oimo.js"></script>

        <style>
            html, body {
                overflow: hidden;
                width: 100%;
                height: 100%;
                margin: 0;
                padding: 0;
            }

            #renderCanvas {
                width: 100%;
                height: 100%;
                touch-action: none;
            }
        </style>
    </head>
<body>
    <div id="canvasZone">
        <canvas id="renderCanvas"></canvas>
    </div>
    <script>
        var canvas = document.getElementById("renderCanvas");
        var engine = new BABYLON.Engine(canvas, true);

        var createScene = function () {
            var scene = new BABYLON.Scene(engine);



            //Adding a light
            var light = new BABYLON.PointLight("Omni", new BABYLON.Vector3(20, 20, 100), scene);

            //Adding an Arc Rotate Camera
            var camera = new BABYLON.ArcRotateCamera("Camera", 0, 0.8, 100, BABYLON.Vector3.Zero(), scene);
            camera.attachControl(canvas, false);

            // The first parameter can be used to specify which mesh to import. Here we import all meshes
            //BABYLON.SceneLoader.ImportMesh("", "scenes/", "skull.babylon", scene, function (newMeshes) {
                // Set the target of the camera to the first imported mesh
            //    camera.target = newMeshes[0];
            //});

			BABYLON.SceneLoader.Load("stlfiles/", "blockstla.stl", engine, function (newScene) {
					newScene.activeCamera.attachControl(canvas, false);
					engine.runRenderLoop(function () {
						newScene.render();
					});
				});


            // Move the light with the camera
            scene.registerBeforeRender(function () {
                light.position = camera.position;
            });

            return scene;
        }

        var scene = createScene();

        engine.runRenderLoop(function () {
            scene.render();
        });

        // Resize
        window.addEventListener("resize", function () {
            engine.resize();
        });
    </script>
</body>
</html>

The STL model is loading as expected but the ArcRotateCamera is not working as expected. I have the feeling that I only have the functionalities of the FreeCamera.

Please find the result here: http://www.ferrisol.com/apo/stl3.html

Are there any known incompatibilities with the STL Loader and the ArcRotateCamera?

Did i make a mistake?

Thx for your help

blockstl.stl

blockstla.stl

Arte · September 19, 2017

Hi @ziguri and welcome to forum,

You need set active camera.

newScene.activeCamera=camera;

All code:

<script>
    var camera;
    var canvas = document.getElementById("renderCanvas");
    var engine = new BABYLON.Engine(canvas, true);

    var createScene = function () {
        var scene = new BABYLON.Scene(engine);
        var light = new BABYLON.PointLight("Omni", new BABYLON.Vector3(20, 20, 100), scene);

        //Adding an Arc Rotate Camera
        camera = new BABYLON.ArcRotateCamera("Camera", 0, 0.8, 100, BABYLON.Vector3.Zero(), scene);
        camera.attachControl(canvas, false);

        BABYLON.SceneLoader.Load("lib/test/", "blockstla.stl", engine, function (newScene) {
            camera.setPosition(new BABYLON.Vector3(-25,10,-50));
            newScene.activeCamera=camera;

            engine.runRenderLoop(function () {
                newScene.render();
            });
        });
        return scene;
    }

    var scene = createScene();

    // Resize
    window.addEventListener("resize", function () {
        engine.resize();
    });
</script>

ziguri · September 20, 2017

Hi @Arte

Thank you for the warm welcome and your help. This fixed my initial problem. I am now able to use the ArcRotateCamera.

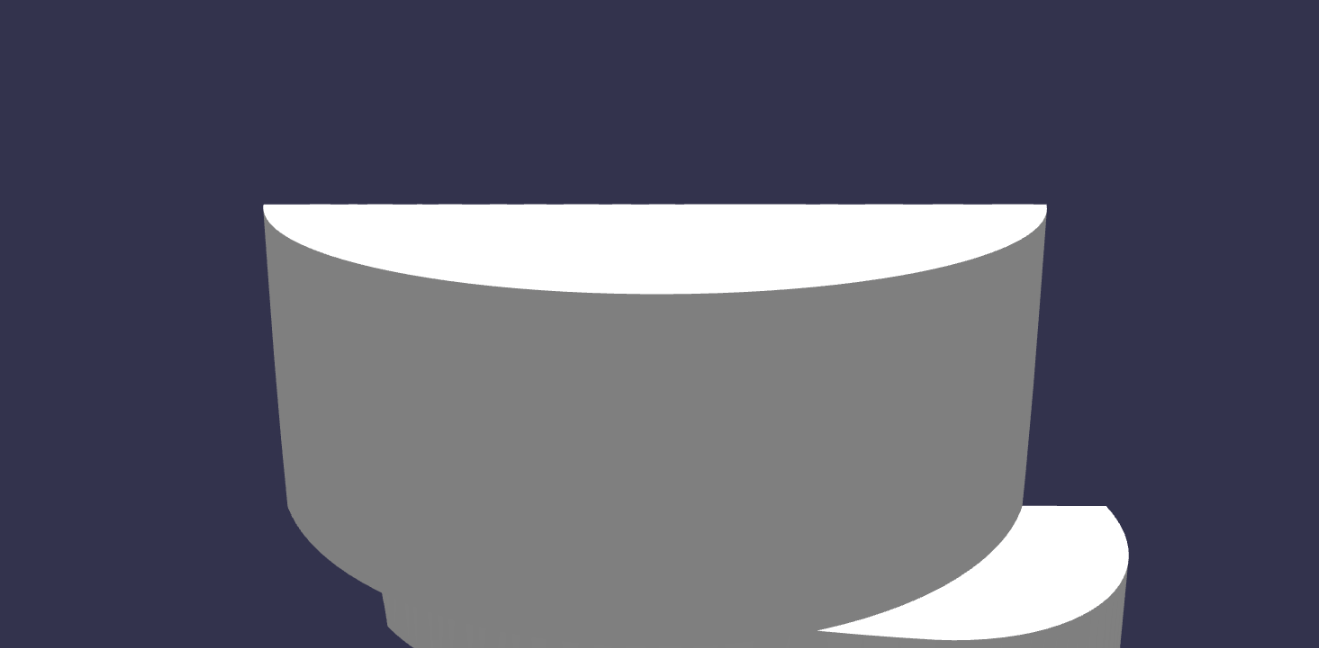

But loading another bigger STL shape I have the problem that parts of the STL are cut and kind of hiding behind the background. Please find the STL as well as a screenshot to document the issue attached.

Here the code snippet:

var createScene = function () {
	var scene = new BABYLON.Scene(engine);

	//Adding a light
    var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);

	//Adding an Arc Rotate Camera
	var camera = new BABYLON.ArcRotateCamera("Camera",0, 0, 0, BABYLON.Vector3.Zero(), scene);
	camera.attachControl(canvas, false);

	BABYLON.SceneLoader.Load("", "shape.stl", engine, function (newScene) {
		camera.wheelPrecision = 0.2; //Zoom Speed Desktop
		camera.pinchPrecision = 1.7; //Zoom Speed Mobile
		camera.angularSensibilityX = 2500;
		camera.angularSensibilityY = 2000;
		camera.setPosition(new BABYLON.Vector3(-0.5,1.3,-10000));
		newScene.activeCamera = camera;

		engine.runRenderLoop(function () {
			newScene.render();
		});
	});

	// Move the light with the camera
	scene.registerBeforeRender(function () {
		light.position = camera.position;
	});
	return scene;
}

I guess its a reposition problem of the camera. How do I find the correct camera position if I don't know the size of the STL object to load?

Second issue: Is there a way to scale a loaded STL? I tried to

newScene.scaling = new BABYLON.Vector3(0.5,0.5,0.5);

which is not working.

Can you give me a short hint?

shape.stl

Arte · September 20, 2017

@ziguri Play with camera.maxZ= 20000;

ziguri · September 21, 2017

Hi @Arte

You are great. Thx for the hint. That helps a lot.

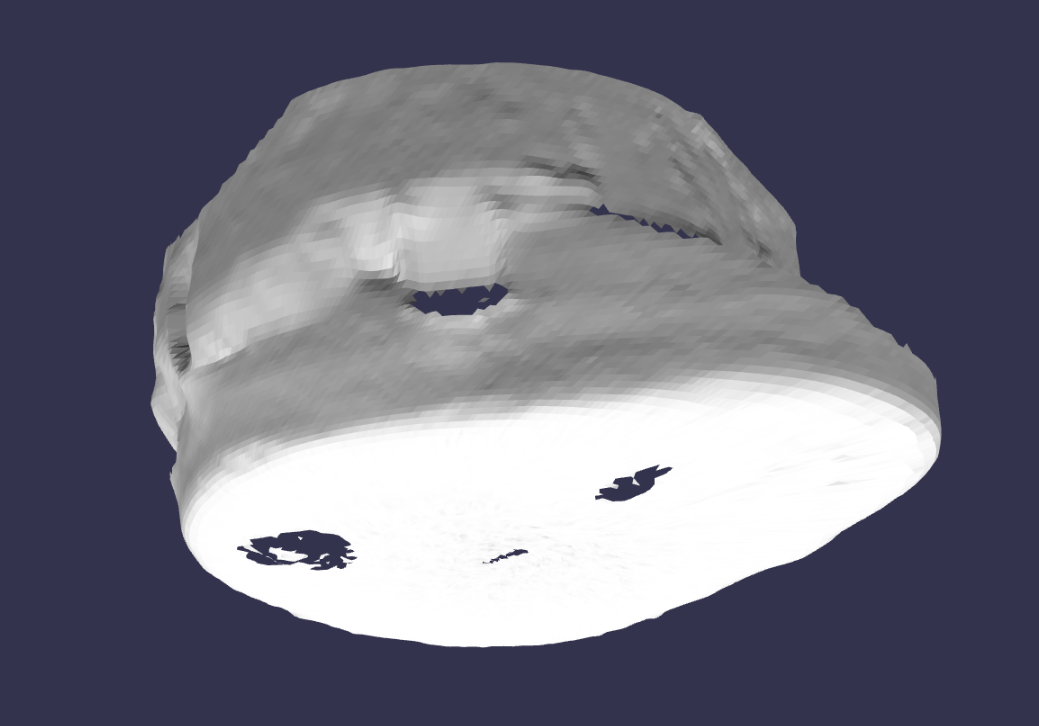

I now have the issue that a loaded object is visible and solid if I look to in from the BOTTOM OUTSIDE.

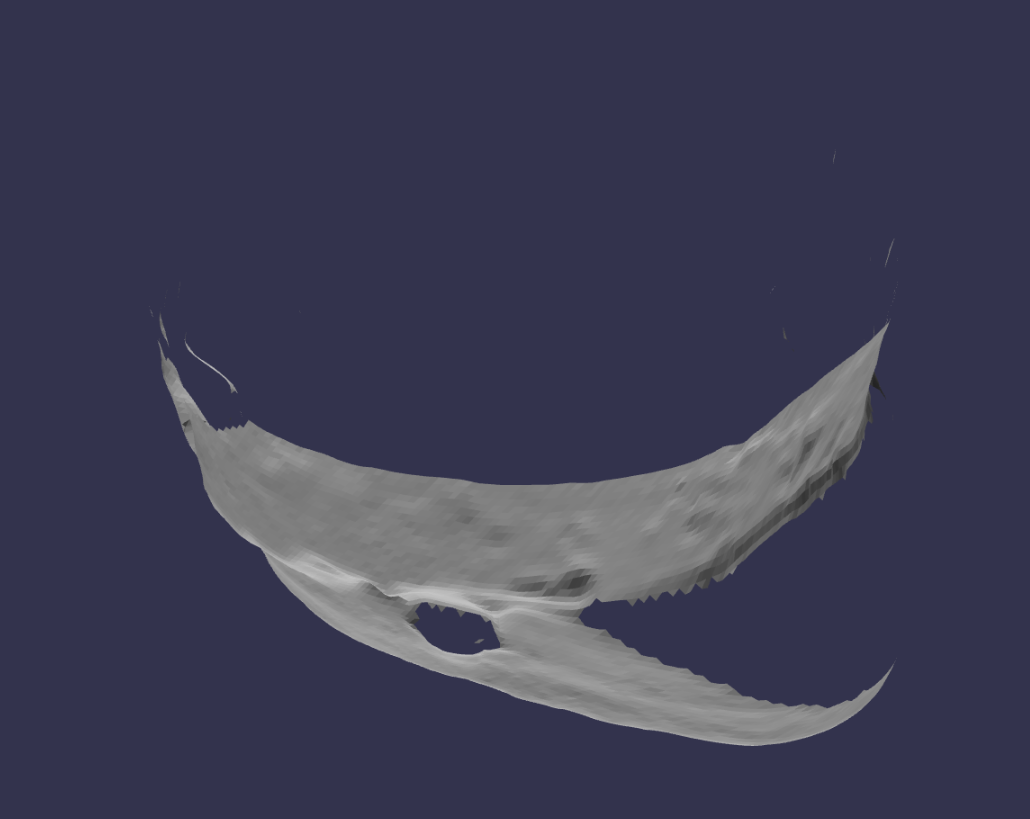

But if I take a look from the TOP to the INSIDE (it's not a closed mesh) some parts become invisible.

Ideally, i want to have everything visible. If that's not possible the view from the TOP to the INSIDE is more important than the BOTTOM OUTSIDE view.

Is that a light position issue? Or something else?
If you have another hint would be great.

Thx in advance

GameMonetize · September 21, 2017

Did you try to remove backface culling with mesh.material.backFaceCulling = false?

ziguri · September 21, 2017

Hi @Deltakosh

Yes i tried the backFaceCulling but i probably applied it wrong?!

Heres the code:

var createScene = function () {
	var scene = new BABYLON.Scene(engine);

	//Adding a light
        var light = new BABYLON.HemisphericLight("light1", new BABYLON.Vector3(0, 1, 0), scene);

	//Adding an Arc Rotate Camera
	var camera = new BABYLON.ArcRotateCamera("Camera",0, 0, 0, BABYLON.Vector3.Zero(), scene);
	camera.attachControl(canvas, false);

        var model = BABYLON.SceneLoader.Load("stlfiles/", "2037009_2_highRes.stl", engine, function (newScene) {
			camera.target = new BABYLON.Vector3(0, -2000, 0);
			camera.lowerBetaLimit = NaN;
			camera.upperBetaLimit = NaN;
			camera.wheelPrecision = 0.1; //Zoom Speed Desktop
			camera.pinchPrecision = 0.2; //Zoom Speed Mobile
			camera.angularSensibilityX = 2500;
			camera.angularSensibilityY = 2000;
			camera.maxZ = 50000;

			camera.setPosition(new BABYLON.Vector3(6635,-6550,-9130));

			newScene.activeCamera = camera;

			engine.runRenderLoop(function () {
				newScene.render();
				});
		});
        model.backFaceCulling = false;


	// Move the light with the camera
	scene.registerBeforeRender(function () {
		light.position = camera.position;
	});
	return scene;
}

How can i apply stuff like that to something loaded from STL?

Arte · September 21, 2017

scene.meshes.YouMesh.material.backFaceCulling = false ???

ziguri · September 22, 2017

Thanks @Arte

For a reason, I don't know, I cant apply the backFaceCulling setting.

I reproduced my issue in the Playground:

https://www.babylonjs-playground.com/#T7ED1A

Any further hints?

Arte · September 22, 2017

Not perfect but PlayGround ?

Lines: 28-30

RaananW · September 22, 2017

Just my 2 cents here - ImportMesh would be better than an entire scene load. ImportMesh only import meshes, whereas Load is creating a whole new scene (hence the need to render the scene using the engine.

Here is a quick example:

https://www.babylonjs-playground.com/#T7ED1A#2

GameMonetize · September 22, 2017

You can't do that:

var model = BABYLON.SceneLoader.Load

as the Load is async. you have to reach the model inside the callback. Furthermore the backFaceCulling is a property of the material

ziguri · September 26, 2017

Thanks for all the hints.

@Artes lines fixed the issue for now.

Thx @RaananW and @Deltakosh for your suggestions.

Great support out here!

Arte · September 26, 2017

ziguri · November 3, 2017

On 9/22/2017 at 4:10 PM, RaananW said:

Just my 2 cents here - ImportMesh would be better than an entire scene load. ImportMesh only import meshes, whereas Load is creating a whole new scene (hence the need to render the scene using the engine.

Here is a quick example:

https://www.babylonjs-playground.com/#T7ED1A#2

1

@RaananW Thx for your 2 cents.

I just tried to use ImportMesh. It's much faster in terms of FPS on mobile devices - but it does not look as accurate as the STL File.

Is there a way to let the imported mesh look like the imported STL?

Is there a way to increase the number of triangles in the mesh to increase accuracy

GameMonetize · November 3, 2017

the importMesh and all importation tools do not change the imported data.

So perhaps your STL is incomplete? You can try to import it in Blender to check this specific point
