Need help with wheel rotation

[wexing]

Hey(sorry for bad english), i started learning babylon framework few days ago and encountered one problem. I have some vehicles model from internet, and trying to spin his wheel unsuccessfullly.  Wheel is rotating but unfortunately his pivot isn't correct. How shoud i fix that? Here is example: www.baloo.lt.

And here is  my code(cound't put it on playground becouse of external 3d model):



var canvas = document.getElementById('canvas');

    var engine = new BABYLON.Engine(canvas, true);
    engine.enableOfflineSupport = false; // Dont require a manifest file


    var createScene = function(){
        var scene = new BABYLON.Scene(engine);
        scene.clearColor = new BABYLON.Color3.White();

        BABYLON.SceneLoader.ImportMesh("","lamb/","lamborghini-aventador-irridescent-paint.babylon",
            scene, function(newMeshes) {
            	scene.car = newMeshes[0];
            	camera.target = scene.car;

        scene.internalMesh = scene.getMeshByID("FR_Wheel");

    	scene.registerBeforeRender(function () {
		     scene.internalMesh.rotate (BABYLON.Axis.Z, 0.14, BABYLON.Space.LOCAL);
        });

		//scene.internalMesh.setPivotMatrix(BABYLON.Matrix.Translation(scene.internalMesh.x, scene.internalMesh.y, scene.internalMesh.z));


    	console.log(scene.internalMesh.position);

        console.log(scene.internalMesh)

        });

        var camera = new BABYLON.ArcRotateCamera("arcCam",
                BABYLON.Tools.ToRadians(45),
                BABYLON.Tools.ToRadians(45),
                10.0, BABYLON.Vector3(1, 2, 1),scene);

       	camera.lowerBetaLimit = 0.1;
	    camera.upperBetaLimit = (Math.PI / 2) * 0.99;
	    camera.lowerRadiusLimit = 5;

	    camera.attachControl(canvas, true);

        var light = new BABYLON.PointLight("pointLight",new BABYLON.Vector3(
        0, 0, 0),scene);
        light.parent = camera;
        light.diffuse = new BABYLON.Color3(1,1,1);



        var light2 = new BABYLON.PointLight("pointLight",new BABYLON.Vector3(
        0, 10, 0),scene);
        light.parent = camera;
        light.diffuse = new BABYLON.Color3(1,1,1);            return scene;
    }

    var scene = createScene();
    engine.runRenderLoop(function(){
       scene.render();
    });
});





[brianzinn]

Hi, Nice car Without looking at your .babylon file - are you sure 'fr_wheel' is the wheel itself and not a parent of the wheel?  Otherwise, have you considered changing, if you use a 3d model program, the center origin/point of the wheel in the model?

[wexing]

Thank you for reply   I think you are right, just dowloaded blender app and checked this model. It seems that wheel have child, but how to reach it on babylon?

[Wingnut]

Hi Wexing.  After the model is loaded, you can use:  var mything = scene.getMeshByName(meshname);

The BabylonJS Scene Object has a ton of fun knobs and switches.  It might be the beefiest object in all of Babylonia.



[brianzinn]

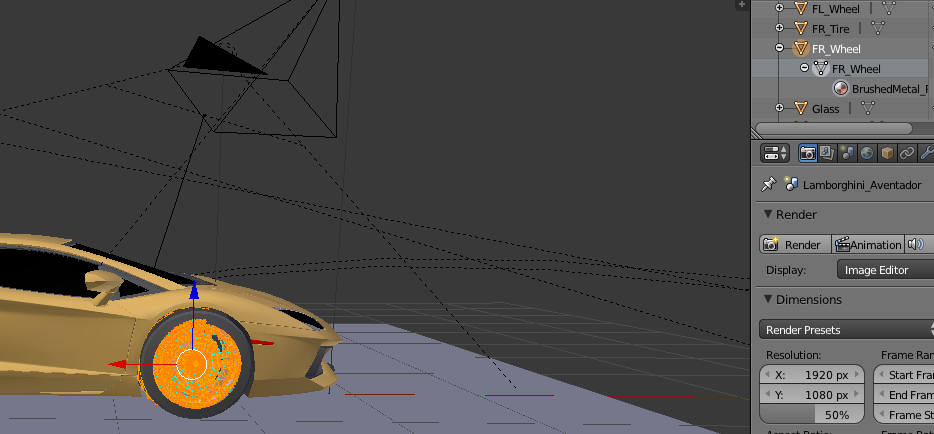

From the Blender screenshot it looks like your center of origin is in the middle of the wheel (I think the red+blue arrows go from your pivot point).  Now, looks like you have two meshes with same name and the parent of the wheel has the same name.  I think you will have something like "front_wheel_1" or something as the one that you want.  did you inspect all the values in your variable "newMeshes" (the .name property should be passed into scene.getMeshByName(..))?
