Mesh array issue

[shaharyar.ahmed]

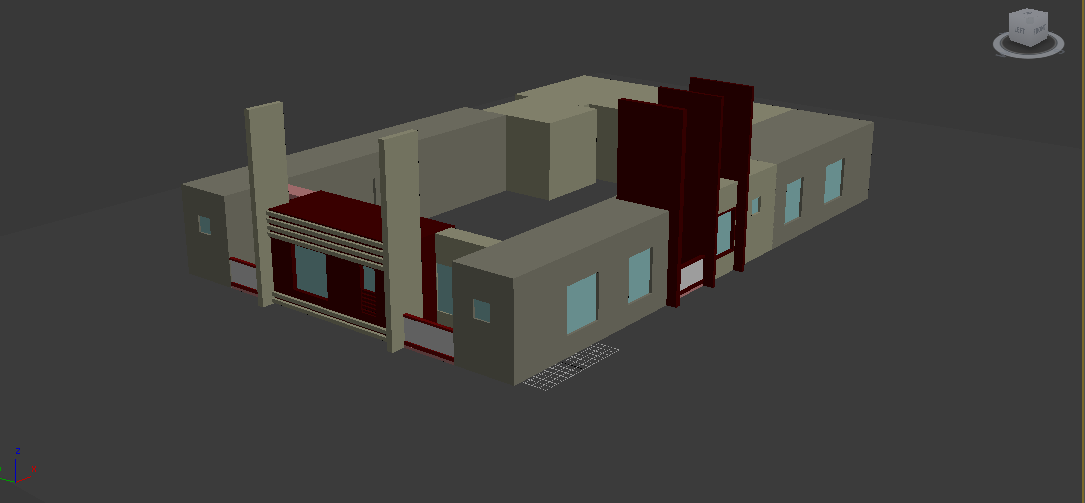

I have a scene created on 3dsmax containing about 60 objects.





but when I convert it to .babylon, I find just 11 meshes in the array

scene1.meshes.length

and when I select their names:

scene1.meshes[2].name

I get many names in just one string:



# Right_Pillar_2Box15Box17Right_Pillar_1Right_Pillar_3Box03Box40Box41Box42Box43Box44Box45Box05





these are many objects but when I click on one of them, I get the above string containing many objects names. So I think it is merging the meshes.



You can try it live as well.



I need to get every object as a separate mesh. I have to apply textures to them, and then select them on click event. Kindly help me to solve this problem.

[gwenael]

Which exporter do you use?

[GameMonetize]

I assume this is the FBX one



But the exporter does not merge objects, it only set name according to hierarchy

[shaharyar.ahmed]

I use .obj exporter. Because .fbx gives me errors of geometry objects, and I am using 3dsmax 2010.

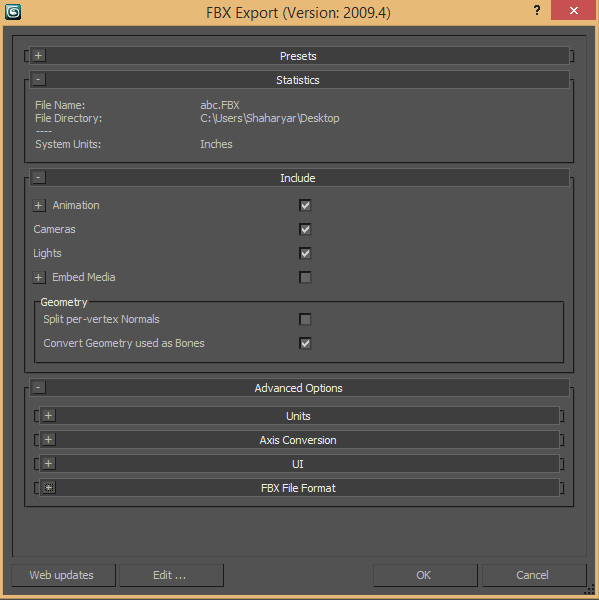

FBX settings:





The error:

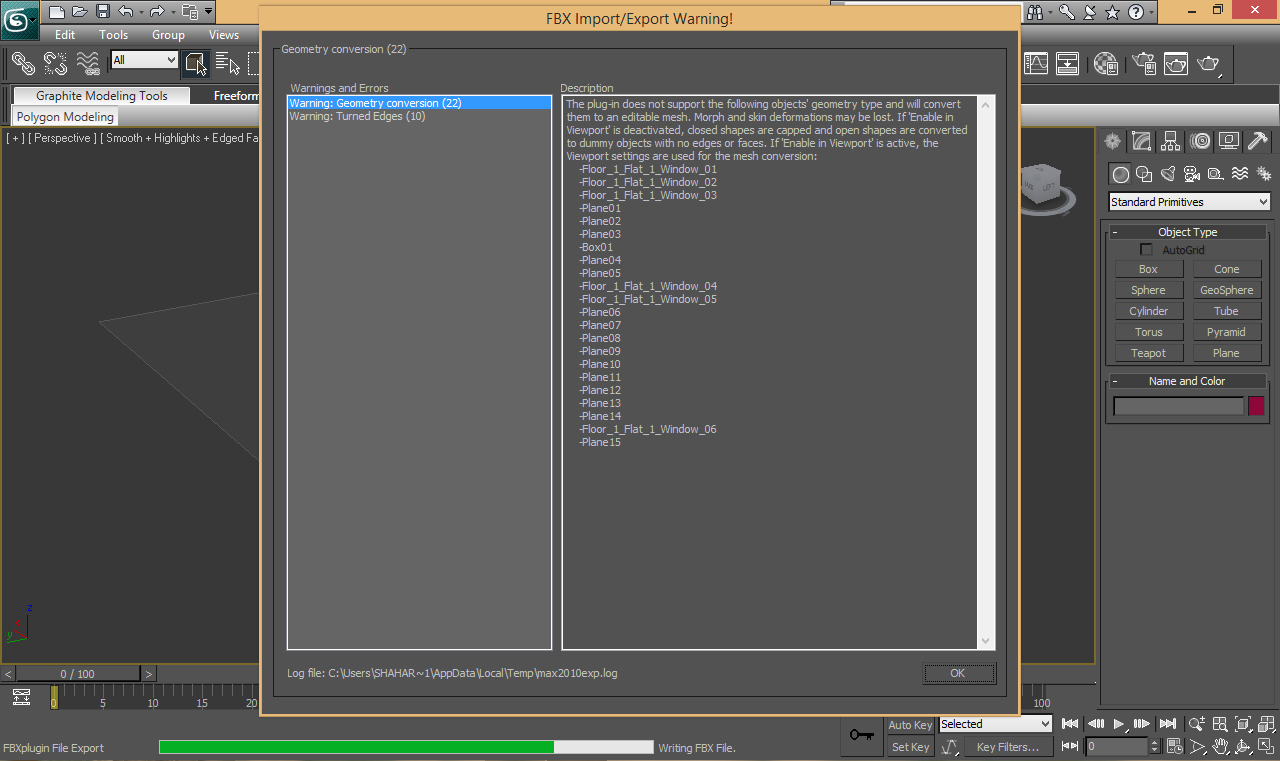

Error 1:

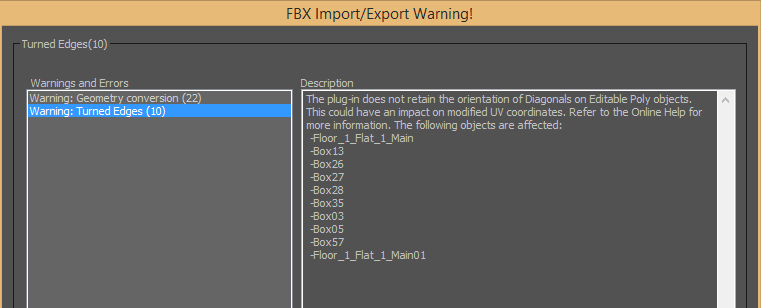

Error 2:



You can see the errors are on the planes also,



And when I set simple diffuse texture to the objects, the online babylon converter gives the error in the output file:



Device is not ready.



 Thats why I was trying to set textures at runtime.



I also downloaded the latest version of .fbx for 3dsmax 2010, but still the same results.

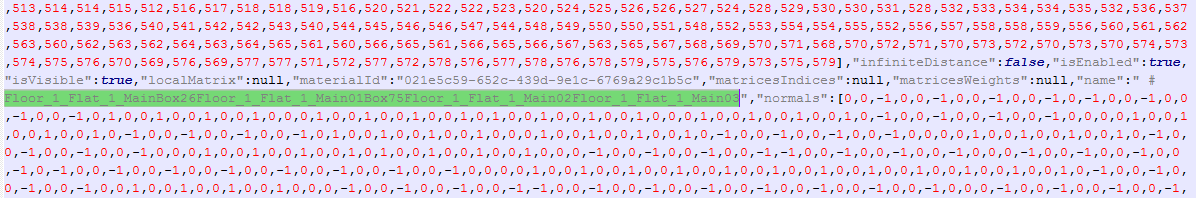

Here is the .babylon file converted from .obj file:



original object names are:

Floor_1_Flat_1_Main

Box26

Floor_1_Flat_1_Main01

Box75

Floor_1_Flat_1_Main02

Floor_1_Flat_1_Main03



But it has converted them to just one object.



They has been merged at the time of conversion to .babylon. Every thing was fine in the .obj file.



Please look into this matter.

[shaharyar.ahmed]

I have found the problem. It is merging same colour objects, and its happening at the time of conversion to the .babylon file. .obj exporter doesn't do it.



How can I prevent it to merge the meshes?

[Dad72]

Try with the export FBX 2012 or 1013. It has often solved problems for me.

[shaharyar.ahmed]

Try with the export FBX 2012 or 1013. It has often solved problems for me.





But it is the babylon converter problem. It is merging all the same colour objects. I have tested it on many other scenes as well.

[Dad72]

Yes, but you export your scene in '.fbx' with 3ds max, if you export with the export fbx 2013 3ds max and then with the converter of Babylon for having the ' .Babylon', this perhaps should be solve your problem.

Sorry for my bad english.



[GameMonetize]

I wrote the .obj importer long time ago but as far as I can remember I think I tried to reduce the number of objects by merging objects sharing the same material:

Here is the code:

https://github.com/BabylonJS/Babylon.js/blob/master/Exporters/XNA%20-%20OBJ/BabylonExport.Core/Exporters/OBJ/ObjExporter.cs



Perhaps you should use the fbx importer to get rid of this problem
