rockleaf99 Posted June 26, 2017 Share Posted June 26, 2017 I've been having a look through the phaser tutorials for json tiled maps and I've noticed that it's not clear on how to create a json tiled map that is 'phaser ready'. After creating a tiled map in tiled and following the code examples I've been unable to get passed the following error. Cannot read property '2' of undefined line phaser.js:98679 // find the relevant tileset sid = map.tiles[tile.index][2]; set = map.tilesets[sid]; version: 2.6.2 Is there anything obviously wrong with the code or the exported json tile map? Maybe there is a special way to export maps from tiled? Help would be appreciated. Thanks. game = new Phaser.Game(600, 600, Phaser.AUTO, '', { preload: preload, create: create, update: update }); function preload() { game.load.tilemap('map', 'assets/map.json', null, Phaser.Tilemap.TILED_JSON); game.load.image('tmw_desert_spacing', 'assets/tmw_desert_spacing.png'); } function create() { map = game.add.tilemap('map'); map.addTilesetImage('tmw_desert_spacing'); layer = map.createLayer('Tile Layer 1'); } { "height":14, "layers":[ { "data":[0, 0, 0, 40, 40, 40, 40, 40, 40, 40, 40, 0, 0, 0, 0, 0, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 0, 0, 40, 40, 40, 40, 0, 0, 40, 40, 0, 0, 40, 40, 40, 0, 40, 40, 0, 40, 0, 0, 40, 40, 0, 0, 0, 40, 40, 40, 40, 40, 40, 0, 0, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 0, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 0, 40, 0, 40, 40, 40, 0, 40, 40, 40, 40, 40, 40, 40, 0, 40, 0, 40, 0, 40, 40, 40, 40, 40, 0, 40, 40, 40, 0, 40, 40, 0, 40, 0, 40, 40, 0, 40, 0, 40, 40, 40, 0, 0, 40, 40, 40, 0, 40, 40, 40, 40, 40, 40, 40, 40, 0, 0, 40, 40, 40, 40, 40, 40, 40, 40, 40, 0, 0, 40, 40, 40, 40, 40, 40, 40, 40, 40, 40, 0, 0, 0, 0, 0, 40, 40, 40, 40, 40, 40, 40, 0, 0, 0, 40, 0, 0, 0, 0, 0, 0, 0, 0, 0, 40, 0, 0, 40, 40, 40], "height":14, "name":"Tile Layer 1", "opacity":1, "type":"tilelayer", "visible":true, "width":14, "x":0, "y":0 }], "nextobjectid":1, "orientation":"orthogonal", "renderorder":"right-down", "tiledversion":"1.0.1", "tileheight":32, "tilesets":[ { "firstgid":1, "source": { "columns":8, "image":"tmw_desert_spacing.png", "imageheight":199, "imagewidth":265, "margin":0, "name":"tmw_desert_spacing", "spacing":0, "tilecount":48, "tileheight":32, "tilewidth":32, "type":"tileset" } }], "tilewidth":32, "type":"map", "version":1, "width":14 } Link to comment Share on other sites More sharing options...
gcardozo Posted June 27, 2017 Share Posted June 27, 2017 Hi, Is your tileset "tmw_desert_spacing" and tilemap JSON inside the same folder? Because in your tilemap property "tilesets", looks like it's expecting to be in the same folder: "image":"tmw_desert_spacing.png", I didn't understand what you're trying to achieve here: sid = map.tiles[tile.index][2]; set = map.tilesets[sid]; map.tiles returns the property "tiles" from your tilemap json, and I didn't see any "tiles" property there. If your're trying to get an specific tile, you can do it using: var tile = map.getTile(x, y, layer, true); Bonus: //to get the tileset ID (number): var tilesetID = map.getTilesetIndex("tmw_desert_spacing"); Link to comment Share on other sites More sharing options...
rockleaf99 Posted June 27, 2017 Author Share Posted June 27, 2017 6 hours ago, gcardozo said: Hi, Is your tileset "tmw_desert_spacing" and tilemap JSON inside the same folder? Because in your tilemap property "tilesets", looks like it's expecting to be in the same folder: "image":"tmw_desert_spacing.png", I didn't understand what you're trying to achieve here: sid = map.tiles[tile.index][2]; set = map.tilesets[sid]; map.tiles returns the property "tiles" from your tilemap json, and I didn't see any "tiles" property there. If your're trying to get an specific tile, you can do it using: var tile = map.getTile(x, y, layer, true); Bonus: //to get the tileset ID (number): var tilesetID = map.getTilesetIndex("tmw_desert_spacing"); 1. The tile set is in the same folder. 2. That is the line where the phaser library is failing. Link to comment Share on other sites More sharing options...
rockleaf99 Posted June 27, 2017 Author Share Posted June 27, 2017 Im using tiled version 1.0.1 which was released june 13th 2017. Maybe phaser does not support the json format of the new tiled? What version of tiled is the norm to use with phaser? Link to comment Share on other sites More sharing options...
rockleaf99 Posted June 27, 2017 Author Share Posted June 27, 2017 For anyone interested after downgrading tiled to v0.18.2 i got the game to work. It seems that phaser does not support json maps that are exported by tiled v1.0.1. This was a tricky one as the code was correct, glad I can move on. I think this should be documented somewhere and there could be a schema for the json objects that are accepted by the phasers tile map parser. Unless it already exists? tiled download link v0.18.2 gesichtsfelsen 1 Link to comment Share on other sites More sharing options...
samme Posted June 28, 2017 Share Posted June 28, 2017 You need to use the Embed Tileset button. ApeAaron and zanzabar 1 1 Link to comment Share on other sites More sharing options...
sebastomass Posted June 28, 2017 Share Posted June 28, 2017 I'm having the same issue. It seems to be the new Tiled update. Quote Uncaught TypeError: Cannot read property '2' of undefined at Object.parseTiledJSON (phaser.js:100871) at Object.parse (phaser.js:100252) at new Phaser.Tilemap (phaser.js:96875) at Phaser.GameObjectFactory.tilemap (phaser.js:47701) at Object.create (main.js:31) at Phaser.StateManager.loadComplete (phaser.js:28669) at Phaser.Loader.finishedLoading (phaser.js:75664) at Phaser.Loader.processLoadQueue (phaser.js:75619) at Phaser.Loader.asyncComplete (phaser.js:75691) at Phaser.Loader.fileComplete (phaser.js:76574) Link to comment Share on other sites More sharing options...
sebastomass Posted June 28, 2017 Share Posted June 28, 2017 Thanks for the url man! On 2017-6-27 at 10:35 PM, rockleaf99 said: tiled download link v0.18.2 Link to comment Share on other sites More sharing options...
jsonify Posted June 29, 2017 Share Posted June 29, 2017 8 hours ago, samme said: You need to use the Embed Tileset button. Can you give a screenshot where this button is located? I'm having a hard time finding it. Thanks. Link to comment Share on other sites More sharing options...

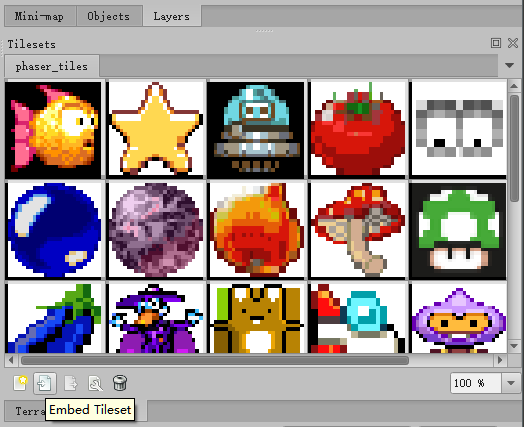

samme Posted June 29, 2017 Share Posted June 29, 2017 jpdev, rockleaf99 and SovietSenpai23 2 1 Link to comment Share on other sites More sharing options...
samme Posted July 4, 2017 Share Posted July 4, 2017 phaser-ce/issues/273 Link to comment Share on other sites More sharing options...
bryantmakesprog Posted June 6, 2018 Share Posted June 6, 2018 On 6/28/2017 at 5:01 PM, samme said: You need to use the Embed Tileset button. This did the trick for me. Easy to miss Link to comment Share on other sites More sharing options...

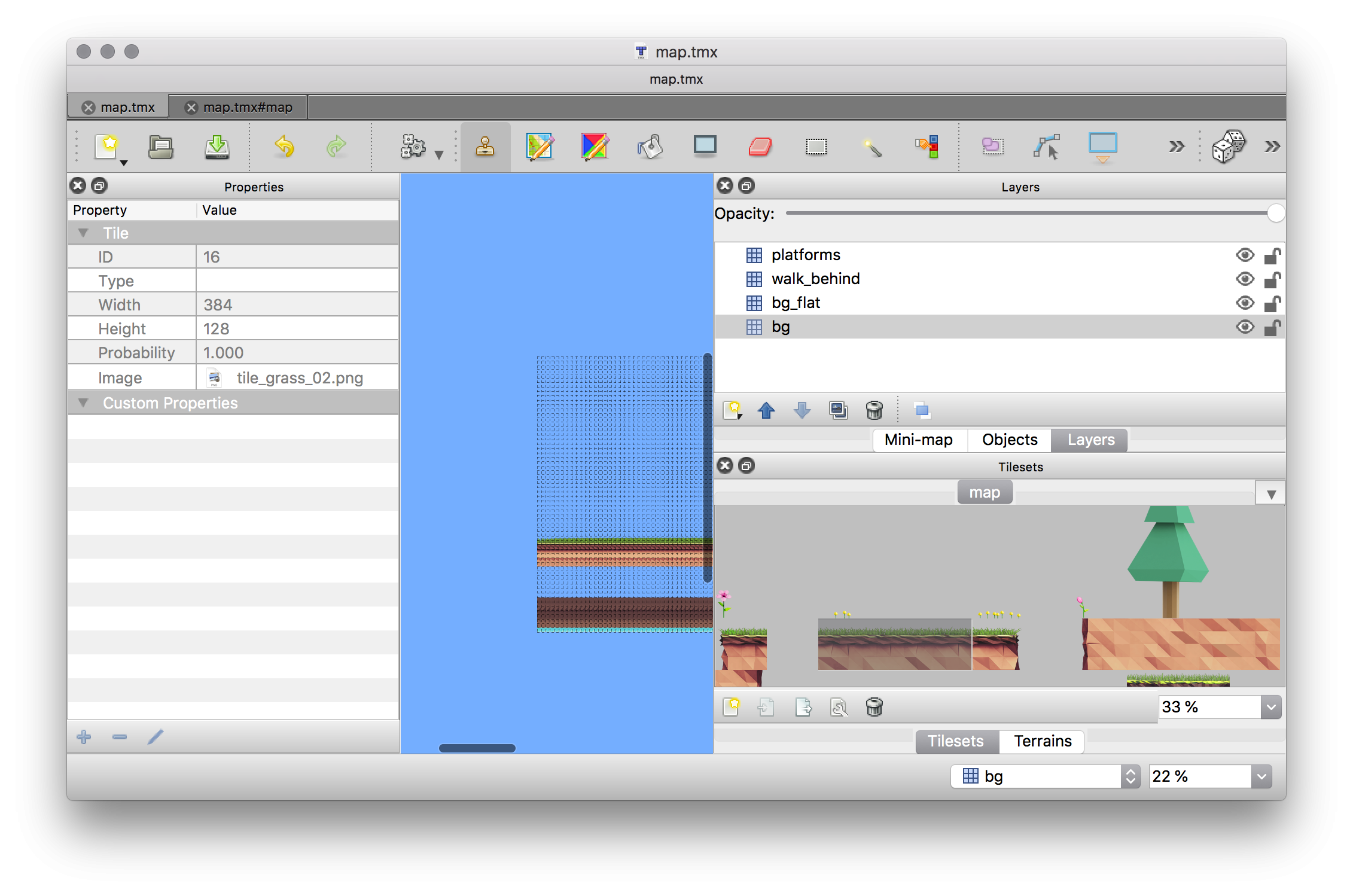

cdaringe Posted September 1, 2018 Share Posted September 1, 2018 i'm using "Embed Tileset" yet the error persists. maybe tiled exporting is busted? the map.json output continues to yield: "tileheight":16, "tilesets":[ { "columns":0, "firstgid":1, "grid": { "height":1, "orientation":"orthogonal", "width":1 }, "margin":0, "name":"map", "spacing":0, "tilecount":23, "tileheight":382, "tiles": { "10": { "image":"assets\/horse_of_spring\/Tile\/Flower\/flower-open.png", "imageheight":73, "imagewidth":43 }, ... Phaser parses this as an ImageCollection, vs a Tileset Link to comment Share on other sites More sharing options...
cdaringe Posted September 1, 2018 Share Posted September 1, 2018 hmm. i'm looking inside the .tmx file. even after selecting embed, there doesn't seem to be any metadata indicating as such. <tileset firstgid="1" name="map" tilewidth="256" tileheight="128" tilecount="1" columns="0"> <grid orientation="orthogonal" width="1" height="1"/> <tile id="0"> <image width="256" height="128" source="assets/horse_of_spring/Tile/Tile Waterfall/tile-fall_0.png"/> </tile> </tileset> Link to comment Share on other sites More sharing options...
t1gor Posted December 11, 2018 Share Posted December 11, 2018 Having same issue here. > ... there doesn't seem to be any metadata indicating as such Do you know what has to be there? Phaser v3.15.1 Tiled v1.2.1 Link to comment Share on other sites More sharing options...
