Update shape with heightmap

[Xav]

Hi,

I am trying to find out if it is possible to adapt this 'sphere.applyDisplacementMap ("/ assets / amiga.jpg", 0, 1.5);' of this example https://www.babylonjs.com/demos/displacementmap/ on an object create in blender with the adapted uvs.
To make it simple I would like to be able to change the shape of my object with a heightmap. I do not need to animate it.
I do not find a track to create this effect so I ask the question as to whether it is really possible.

Thank you

[GameMonetize]

Hey, unless I do not understand your point, what you describe is clearly the goal of the displacementMap



can you tell me what you want to do which is not supported by the current API?

[Xav]

Ok sorry,

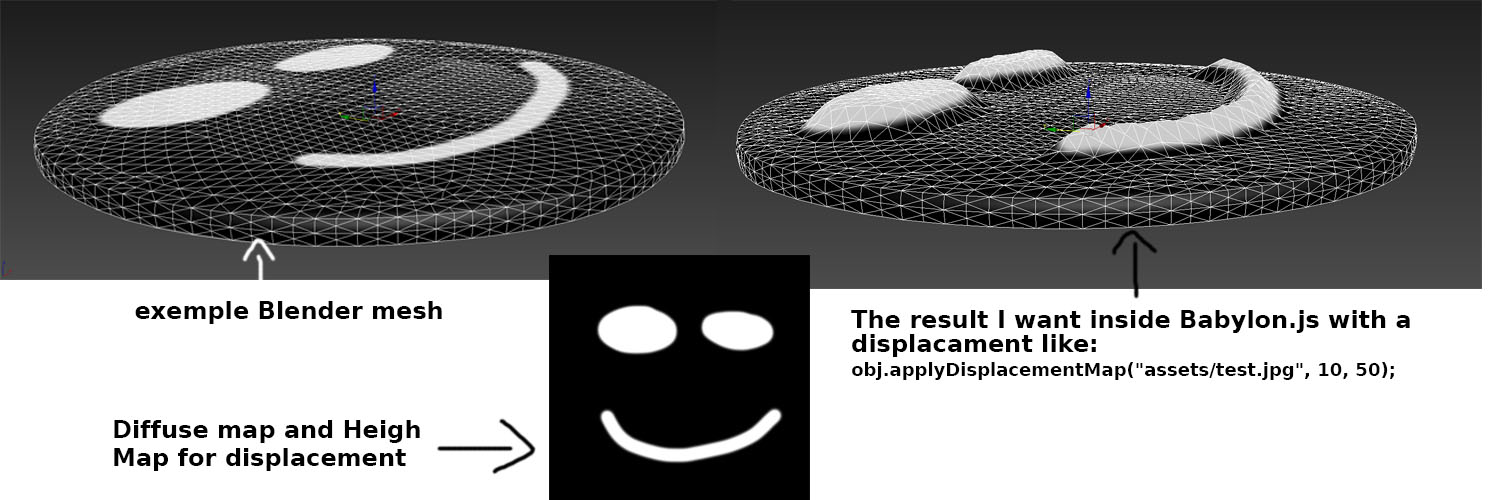

An exemple on picture exemple.jpg.

It works very well with:

var sphere = BABYLON.Mesh.CreateSphere("Sphere", 32, 3, scene, true);
sphere.applyDisplacementMap("Assets/test.jpg", 0, .2);

When i want to apply this on an obj create in blender it no longer works...

Is my question clearer?

Thanks



[Xav]

I continued my research on this subject.
The problem would not it come that my mesh is not Updatable? As specified In the doc: "The mesh must be set as updatable. Its internal geometry is directly modified, no new buffer are allocated."

I found this post :

Is it possible to make a mesh updatable if it was created in an external softaware, to modify its mesh with a Heigth map?

Thanks

[GameMonetize]

It should work

Do you mind creating a playground repro? It's gonna be easier to fix it then

[Xav]

Hello,

Like this: http://www.babylonjs-playground.com/index.html#WS3Z9A

Thanks.

[Xav]

Hello,

I found the solution:

            var obj = scene.getMeshByName("piece001");

            var positions = obj.getVerticesData(BABYLON.VertexBuffer.PositionKind);
            var vb = obj.getVertexBuffer(BABYLON.VertexBuffer.PositionKind);
            vb._buffer._updatable = true;
            obj.applyDisplacementMap("test/test.jpg", 0, 10 , function() {
                obj.updateVerticesData(vb);
                console.log("OK!");
            });



Babylon.js is PERFECT :)!!!!



I think is now possible to export this mesh to an .obj file with the updatable shape ?

Thanks.

[Xav]

Is possible to rotate and translate the displacement map inside the obj.applyDisplacementMap() ?

thanks

[Wingnut]

Hi Xav, good to see you again.  I know of ONE way... perhaps the WRONG way...

https://www.babylonjs-playground.com/#P9UZG#12

In the BJS framework, applyDisplacementMap uses a helper func called applyDisplacementMapFromBuffer.  BOTH have been "hijacked" into that playground... but...

...it is likely hijacked from OLD version of BJS.  You might wish to get fresher versions from here.

Take a look at lines 31-43 (a save/restore wrapping, there, worth studying someday).  But most important... rotation, translation, and scaling of the IMAGE used-for the displaceMap... can be done there.  Not sure about continuously-updating the context2d image, in a renderloop.  I think a bit of custom code could do it.

Hope this helps.  Others will comment soon, I'm sure.

[GameMonetize]

Thanks:) you can export to .obj with this: https://github.com/BabylonJS/Babylon.js/blob/master/dist/preview release/serializers/babylon.objSerializer.js

[Xav]

Hello
Thanks Wingnut I had actually started looking at this. I will continue to develop this idea in parallel and obviously if I get something convincing I would share it ;).
Thanks Deltakosh actually I saw this especially that there is a post on this subject that runs on the forum: http: //www.html5gamedevs.com/topic/29587-babylon-objects-to-obj-file/

Again thank you for the time you give us to answer. Babylon.js is really a great tool very polyvalent

Thank you for everything !

[Xav]

Hello,

I found time to explore this idea a bit more.
Sorry but I can not get the script to export a mesh to .obj extension for the playground.
This works perfectly on my local machine.

https://www.babylonjs-playground.com/#P9UZG#14

My question is how to save everything in a file mesh.obj and mesh.mtl? If possible locally at the moment.

If anyone has an idea or a track to do that.

Thank you
