Pryme8 Posted December 6, 2016 Share Posted December 6, 2016 Who wants it... If I have enough time to get at it today after my work Ill get at this... I already am parsing fbx's into my own file type so to get it over into BJS will be no problem. how do you guys want it? I can make it work right in BJS as an extension or I can do a secondary tool that you could just convert FBX's to .babylon files. Yall's choice, Im over OBJ format. Its not going to have everything at first (tags and bones you will have to wait for) but materials and mesh data no problem. Visam 1 Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted December 6, 2016 Share Posted December 6, 2016 Hello! I know that @ProfessorF is also working on a FBX loader Whoever implements it need only to create a loader like the ones fro gltf or obj: https://github.com/BabylonJS/Babylon.js/tree/master/loaders By the way I really appreciate that you take time to do this. It's gonna be a huge addition to our framework Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 10, 2016 Author Share Posted December 10, 2016 I should have time tommrow to work on this. Quote Link to comment Share on other sites More sharing options...
Visam Posted December 10, 2016 Share Posted December 10, 2016 On 06/12/2016 at 5:27 PM, Pryme8 said: Who wants it... If I have enough time to get at it today after my work Ill get at this... I already am parsing fbx's into my own file type so to get it over into BJS will be no problem. how do you guys want it? I can make it work right in BJS as an extension or I can do a secondary tool that you could just convert FBX's to .babylon files. Yall's choice, Im over OBJ format. Its not going to have everything at first (tags and bones you will have to wait for) but materials and mesh data no problem. thank you, Pryme8 looking forward for the FBX Loader! Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 10, 2016 Author Share Posted December 10, 2016 https://wiki.blender.org/index.php/User:Mont29/Foundation/FBX_File_Structure fun fun.... Definitely gonna need some coffee first... Quote Link to comment Share on other sites More sharing options...

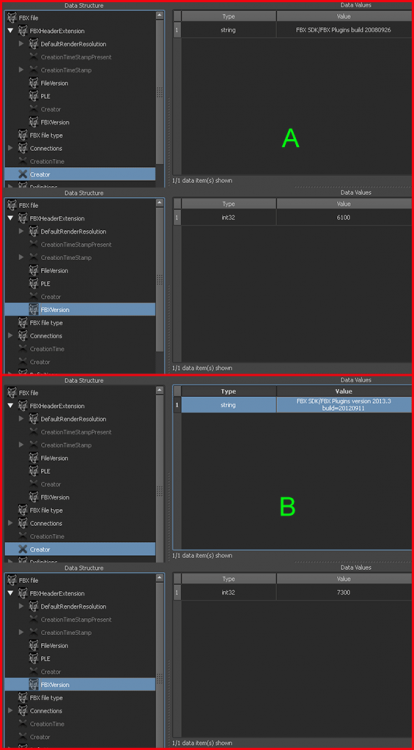

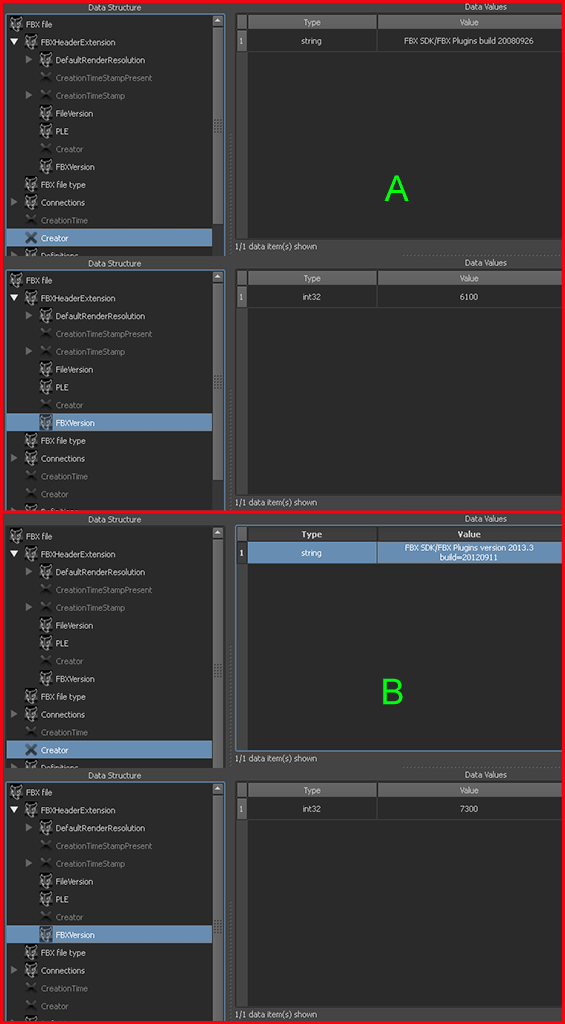

gryff Posted December 10, 2016 Share Posted December 10, 2016 42 minutes ago, Pryme8 said: Definitely gonna need some coffee first... @Pryme8 :well you might need a few pots of that coffee Pryme My recent experience with FBX and Blender is mixed. It imports the FBX in from binary format files - but exports them as ASCI. However, there seems to be different versions of the binary format - see image below. The model used for A data - won't load into Blender. The model used for B data - will load into Blender. So be careful cheers, gryff adam 1 Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 10, 2016 Author Share Posted December 10, 2016 Im going to focus on ASCII for right now, and FBX's exported from c4d in the 2016 format. Also The first steps of this are not going to port right into bjs, your going to need to open a secondary page which I am almost done with to serialize the fbx into my new file type of bjx, where it converts the fbx into JSON and then gives you options to edit all the stuff in real time in the browser with a preview. Should have the alpha up today for yall, unless I lose inspiration or something... but I got most of the footwork done already in past projects. As I develop it here I will make extensive comments, and then upload it to git for yall to jump on board and help me break it. Visam 1 Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 10, 2016 Author Share Posted December 10, 2016 https://github.com/Pryme8/FBeXporthttps://pryme8.github.io/FBeXport/ I need to break it down a little more now... but here is the base, nothing stopping us now. make sure to check your console, it will output a BJX.DATA object. the meat and beans are there. breakdown: So first the object is created and it verifies that there is a uri component for it to access. Once it loads that file as text it strips all comment lines out and then splits the whole thing down into an array by line. Next we ignore lines that are blank. Then we do some nifty regex to check if the value of that line is an object or a key, once we establish that we check for the the key on the data object and if its not there create it if its a value set it. Next step is to split down the values of each key because there are some subset items. Then onto identifying the items that we need like meshs their names, locations all the poly normal material info ect, and start building a new cleanData object that will be in a format that BJS likes. Load that into a scene preview to validate, then strap on some of my niftey widgets to edit it if you want in browser, then serialize and save out. So yeah by the end of this weekend if I have time I will be able to wrap this up seeing how I got this far from scratch in like 3 hours. I gotta get ready for a date with me lady now though! @gryff betedubs, you should drop blender and get c4d come to the dark side... Quote Link to comment Share on other sites More sharing options...
ProfessorF Posted December 11, 2016 Share Posted December 11, 2016 Yeah, I was going to work on an FBX importer this Christmas break. Just have to finish grading. My issue is skinned models w/ animations, they never import properly without a lot of massaging. But I'd love to compare notes. Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 11, 2016 Author Share Posted December 11, 2016 https://pryme8.github.io/FBeXport/ I had a little time today to start cleaning up the parsing... Im to the step now that I need to break down the property variables into their own objects now, which should not be hard at all. Could yall start testing FBX files and posting a screenshot of the output? It should not go all the way through right now but will give me a good idea of the values I will be passed. Also if someone could try a binary one that would be cool too, because as soon as I see the error it will drop, ill add a condition to parse it as binary instead of text when the file system loads it. Quote Link to comment Share on other sites More sharing options...
Visam Posted December 11, 2016 Share Posted December 11, 2016 3 hours ago, Pryme8 said: https://pryme8.github.io/FBeXport/ I had a little time today to start cleaning up the parsing... Im to the step now that I need to break down the property variables into their own objects now, which should not be hard at all. Could yall start testing FBX files and posting a screenshot of the output? It should not go all the way through right now but will give me a good idea of the values I will be passed. Also if someone could try a binary one that would be cool too, because as soon as I see the error it will drop, ill add a condition to parse it as binary instead of text when the file system loads it. Hi I am trying to upload this file https://www.dropbox.com/s/qajccuvjxb775cp/ExhibitionHall_01_Rev_1_ascii.fbx?dl=0 But I can see only the message "Loading..." on the screen after uploading the file. Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 11, 2016 Author Share Posted December 11, 2016 yeah weird it hangs for me too ill take a look tonight at whats happening. Oh its just taking a while to process, let it sit for a min. I will fix the process time here soon. FBXHeaderExtension FBXHeaderVersion1003 FBXVersion7100 CreationTimeStamp Version1000 Year2016 Month8 Day15 Hour12 Minute29 Second19 Millisecond0 Creator"FBXSDK/FBXPluginsversion2013.3" SceneInfo Type"UserData" Version100 MetaData Version100 Title"" Subject"" Author"" Keywords"" Revision"" Comment"" Properties70 P:"DocumentUrl","KString","Url","","D\PoulEngineering\MclennNorge\pRESENTATIONS\FinalPresentation_Norway\Architectural\ExhibitionHall\ExhibitionHall_01_Rev_1_ascii.fbx" P:"SrcDocumentUrl","KString","Url","","D\PoulEngineering\MclennNorge\pRESENTATIONS\FinalPresentation_Norway\Architectural\ExhibitionHall\ExhibitionHall_01_Rev_1_ascii.fbx" "Original""" "Original|ApplicationVendor""" "Original|ApplicationName""" "Original|ApplicationVersion""" "Original|DateTime_GMT""" "Original|FileName""" "LastSaved""" "LastSaved|ApplicationVendor""" "LastSaved|ApplicationName""" "LastSaved|ApplicationVersion""" "LastSaved|DateTime_GMT""" Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 12, 2016 Author Share Posted December 12, 2016 I should have time tommrow to work on this more, and I'll be able to finish the parsing. Then I'll have them load into the scene like I was talking about. From there it will just be expanding it. Quote Link to comment Share on other sites More sharing options...
Visam Posted December 12, 2016 Share Posted December 12, 2016 17 hours ago, Pryme8 said: yeah weird it hangs for me too ill take a look tonight at whats happening. Oh its just taking a while to process, let it sit for a min. I will fix the process time here soon. you can try this one also https://www.dropbox.com/s/rr8k9brbgdv1e9x/M20.fbx?dl=0 Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 12, 2016 Author Share Posted December 12, 2016 I will when I get home. I have a busy day today. I've been doing lots of research and I think I'm close to parsing the fbx no matter what format it's in into a Json object. I just want to make sure I have all the sub properties being identified correctly. Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 14, 2016 Author Share Posted December 14, 2016 https://pryme8.github.io/FBeXport/ Almost there... I need to fix the connections, and break down the arrays with the real info for vert and uv stuff... but for the most part this script should break down almost any fbx file into something readable and in JSON... so thats the main part of the battle done... the rest is really just busy work. FBXHeaderExtension FBXHeaderVersion1003 FBXVersion7500 CreationTimeStamp Version1000 Year2016 Month12 Day10 Hour10 Minute37 Second9 Millisecond577 Creator"FBXSDK/FBXPluginsversion2016.1.2" SceneInfo Type"UserData" Version100 MetaData Version100 Title"" Subject"" Author"" Keywords"" Revision"" Comment"" Properties70 "DocumentUrl""H:\FBeXport\Cube.fbx" "SrcDocumentUrl""H:\FBeXport\Cube.fbx" "Original""" "Original|ApplicationVendor""" "Original|ApplicationName""MAXONCINEMA4DStudio(R17)17.055" "Original|ApplicationVersion""" "Original|DateTime_GMT""10/12/201600:00:00.000" "Original|FileName""" "LastSaved""" "LastSaved|ApplicationVendor""MAXON" "LastSaved|ApplicationName""CINEMA4DR17" "LastSaved|ApplicationVersion""17.055" "LastSaved|DateTime_GMT""10/12/201600:00:00.000" GlobalSettings Version1000 Properties70 "UpAxis"1 "UpAxisSign"1 "FrontAxis"2 "FrontAxisSign"1 "CoordAxis"0 "CoordAxisSign"1 "OriginalUpAxis"-1 "OriginalUpAxisSign"1 "UnitScaleFactor"1 "OriginalUnitScaleFactor"1 "AmbientColor"0 "DefaultCamera""CINEMA_4D_Editor" "TimeMode"6 "TimeProtocol"2 "SnapOnFrameMode"0 "TimeSpanStart"0 "TimeSpanStop"46186158000 "CustomFrameRate"-1 "TimeMarker""" "CurrentTimeMarker"-1 Documents Count1 Document Properties70 "SourceObject""" "ActiveAnimStackName""" RootNode0 References Definitions Version100 Count8 ObjectType Count1 PropertyTemplate Properties70 "QuaternionInterpolate"0 "RotationOffset"0 "RotationPivot"0 "ScalingOffset"0 "ScalingPivot"0 "TranslationActive"0 "TranslationMin"0 "TranslationMax"0 "TranslationMinX"0 "TranslationMinY"0 "TranslationMinZ"0 "TranslationMaxX"0 "TranslationMaxY"0 "TranslationMaxZ"0 "RotationOrder"0 "RotationSpaceForLimitOnly"0 "RotationStiffnessX"0 "RotationStiffnessY"0 "RotationStiffnessZ"0 "AxisLen"10 "PreRotation"0 "PostRotation"0 "RotationActive"0 "RotationMin"0 "RotationMax"0 "RotationMinX"0 "RotationMinY"0 "RotationMinZ"0 "RotationMaxX"0 "RotationMaxY"0 "RotationMaxZ"0 "InheritType"0 "ScalingActive"0 "ScalingMin"0 "ScalingMax"1 "ScalingMinX"0 "ScalingMinY"0 "ScalingMinZ"0 "ScalingMaxX"0 "ScalingMaxY"0 "ScalingMaxZ"0 "GeometricTranslation"0 "GeometricRotation"0 "GeometricScaling"1 "MinDampRangeX"0 "MinDampRangeY"0 "MinDampRangeZ"0 "MaxDampRangeX"0 "MaxDampRangeY"0 "MaxDampRangeZ"0 "MinDampStrengthX"0 "MinDampStrengthY"0 "MinDampStrengthZ"0 "MaxDampStrengthX"0 "MaxDampStrengthY"0 "MaxDampStrengthZ"0 "PreferedAngleX"0 "PreferedAngleY"0 "PreferedAngleZ"0 "LookAtProperty""" "UpVectorProperty""" "Show"1 "NegativePercentShapeSupport"1 "DefaultAttributeIndex"-1 "Freeze"0 "LODBox"0 "LclTranslation"0 "LclRotation"0 "LclScaling"1 "Visibility"1 "VisibilityInheritance"1 "Color"0.8 "Position"0 "UpVector"0 "InterestPosition"0 "Roll"0 "OpticalCenterX"0 "OpticalCenterY"0 "BackgroundColor"0.63 "TurnTable"0 "DisplayTurnTableIcon"0 "UseMotionBlur"0 "UseRealTimeMotionBlur"1 "MotionBlurIntensity"1 "AspectRatioMode"0 "AspectWidth"320 "AspectHeight"200 "PixelAspectRatio"1 "FilmOffsetX"0 "FilmOffsetY"0 "FilmWidth"0.816 "FilmHeight"0.612 "FilmAspectRatio"1.33333333333333 "FilmSqueezeRatio"1 "FilmFormatIndex"0 "PreScale"1 "FilmTranslateX"0 "FilmTranslateY"0 "FilmRollPivotX"0 "FilmRollPivotY"0 "FilmRollValue"0 "FilmRollOrder"0 "ApertureMode"2 "GateFit"0 "FieldOfView"25.1149997711182 "FieldOfViewX"40 "FieldOfViewY"40 "FocalLength"34.8932762167263 "CameraFormat"0 "UseFrameColor"0 "FrameColor"0.3 "ShowName"1 "ShowInfoOnMoving"1 "ShowGrid"1 "ShowOpticalCenter"0 "ShowAzimut"1 "ShowTimeCode"0 "ShowAudio"0 "AudioColor"0 "NearPlane"10 "FarPlane"4000 "AutoComputeClipPanes"0 "ViewCameraToLookAt"1 "ViewFrustumNearFarPlane"0 "ViewFrustumBackPlaneMode"2 "BackPlaneDistance"4000 "BackPlaneDistanceMode"1 "ViewFrustumFrontPlaneMode"2 "FrontPlaneDistance"10 "FrontPlaneDistanceMode"1 "LockMode"0 "LockInterestNavigation"0 "BackPlateFitImage"0 "BackPlateCrop"0 "BackPlateCenter"1 "BackPlateKeepRatio"1 "BackgroundAlphaTreshold"0.5 "ShowBackplate"1 "BackPlaneOffsetX"0 "BackPlaneOffsetY"0 "BackPlaneRotation"0 "BackPlaneScaleX"1 "BackPlaneScaleY"1 "BackgroundTexture""" "FrontPlateFitImage"1 "FrontPlateCrop"0 "FrontPlateCenter"1 "FrontPlateKeepRatio"1 "ForegroundOpacity"1 "ShowFrontplate"1 "FrontPlaneOffsetX"0 "FrontPlaneOffsetY"0 "FrontPlaneRotation"0 "FrontPlaneScaleX"1 "FrontPlaneScaleY"1 "ForegroundTexture""" "DisplaySafeArea"0 "DisplaySafeAreaOnRender"0 "SafeAreaDisplayStyle"1 "SafeAreaAspectRatio"1.33333333333333 "Use2DMagnifierZoom"0 "2DMagnifierZoom"100 "2DMagnifierX"50 "2DMagnifierY"50 "CameraProjectionType"0 "OrthoZoom"1 "UseRealTimeDOFAndAA"0 "UseDepthOfField"0 "FocusSource"0 "FocusAngle"3.5 "FocusDistance"200 "UseAntialiasing"0 "AntialiasingIntensity"0.77777 "AntialiasingMethod"0 "UseAccumulationBuffer"0 "FrameSamplingCount"7 "FrameSamplingType"1 "BBoxMin"0 "BBoxMax"0 "PrimaryVisibility"1 "CastsShadows"1 "ReceiveShadows"1 "ShadingModel""Phong" "MultiLayer"0 "EmissiveColor"0 "EmissiveFactor"1 "AmbientColor"0.2 "AmbientFactor"1 "DiffuseColor"0.8 "DiffuseFactor"1 "Bump"0 "NormalMap"0 "BumpFactor"1 "TransparentColor"0 "TransparencyFactor"0 "DisplacementColor"0 "DisplacementFactor"1 "VectorDisplacementColor"0 "VectorDisplacementFactor"1 "SpecularColor"0.2 "SpecularFactor"1 "ShininessExponent"20 "ReflectionColor"0 "ReflectionFactor"1 "Description""" "LocalStart"0 "LocalStop"0 "ReferenceStart"0 "ReferenceStop"0 "Weight"100 "Mute"0 "Solo"0 "Lock"0 "BlendMode"0 "RotationAccumulationMode"0 "ScaleAccumulationMode"0 "BlendModeBypass"0 Objects NodeAttribute Properties70 "Position"600 "UpVector"-0.235455330940913 "InterestPosition"599.333246082028 "AspectRatioMode"2 "AspectWidth"800 "AspectHeight"600 "FilmWidth"1.41732283464567 "FilmHeight"1.06299212598425 "ApertureMode"3 "FieldOfView"53.130102354156 "FocalLength"36 "NearPlane"0.001 "FarPlane"10000 "AutoComputeClipPanes"1 TypeFlags"Camera" GeometryVersion124 Position600,300,600 Up-0.235455330940913,0.942932433561923,-0.235455330940913 LookAt599.333246082028,299.66701587765,599.333246082028 ShowInfoOnMoving1 ShowAudio0 AudioColor0,1,0 CameraOrthoZoom1 Geometry Vertices a-91,-100,91,91,-100,91,91,-100,-91,-91,-100,-91,-91,-97.3639610306789,97.3639610306789,91,-97.3639610306789,97.3639610306789,95.5,-97.3639610306789,95.5,97.3639610306789,-97.3639610306789,91,97.3639610306789,-97.3639610306789,-91,95.5,-97.3639610306789,-95.5,91,-97.3639610306789,-97.3639610306789,-91,-97.3639610306789,-97.3639610306789,-95.5,-97.3639610306789,-95.5,-97.3639610306789,-97.3639610306789,-91,-97.3639610306789,-97.3639610306789,91,-95.5,-97.3639610306789,95.5,-91,-91,100,91,-91,100,97.3639610306789,-91,97.3639610306789,100,-91,91,100,-91,-91,97.3639610306789,-91,-97.3639610306789,91,-91,-100,-91,-91,-100,-97.3639610306789,-91,-97.3639610306789,-100,-91,-91,-100,-91,91,-97.3639610306789,-91,97.3639610306789,-91,91,100,91,91,100,97.3639610306789,91,97.3639610306789,100,91,91,100,91,-91,97.3639610306789,91,-97.3639610306789,91,91,-100,-91,91,-100,-97.3639610306789,91,-97.3639610306789,-100,91,-91,-100,91,91,-97.3639610306789,91,97.3639610306789,-91,97.3639610306789,97.3639610306789,91,97.3639610306789,97.3639610306789,95.5,97.3639610306789,95.5,97.3639610306789,97.3639610306789,91,97.3639610306789,97.3639610306789,-91,95.5,97.3639610306789,-95.5,91,97.3639610306789,-97.3639610306789,-91,97.3639610306789,-97.3639610306789,-95.5,97.3639610306789,-95.5,-97.3639610306789,97.3639610306789,-91,-97.3639610306789,97.3639610306789,91,-95.5,97.3639610306789,95.5,-91,100,91,91,100,91,91,100,-91,-91,100,-91 PolygonVertexIndex a1,5,4,-1,5,17,16,-5,17,29,28,-17,29,41,40,-29,41,53,52,-41,6,5,-2,6,18,17,-6,18,30,29,-18,30,42,41,-30,42,53,-42,7,6,-2,7,19,18,-7,19,31,30,-19,31,43,42,-31,43,53,-43,2,8,7,-2,8,20,19,-8,20,32,31,-20,32,44,43,-32,44,54,53,-44,9,8,-3,9,21,20,-9,21,33,32,-21,33,45,44,-33,45,54,-45,10,9,-3,10,22,21,-10,22,34,33,-22,34,46,45,-34,46,54,-46,3,11,10,-3,11,23,22,-11,23,35,34,-23,35,47,46,-35,47,55,54,-47,12,11,-4,12,24,23,-12,24,36,35,-24,36,48,47,-36,48,55,-48,13,12,-4,13,25,24,-13,25,37,36,-25,37,49,48,-37,49,55,-49,0,14,13,-4,14,26,25,-14,26,38,37,-26,38,50,49,-38,50,52,55,-50,15,14,-1,15,27,26,-15,27,39,38,-27,39,51,50,-39,51,52,-51,4,15,-1,4,16,27,-16,16,28,39,-28,28,40,51,-40,40,52,-52,53,54,55,-53,3,2,1,-1 GeometryVersion124 LayerElementNormal Version102 Name"" MappingInformationType"ByPolygonVertex" ReferenceInformationType"Direct" Normals a0.189136937260628,-0.96356338262558,0.189136922359467,0.140449270606041,-0.704058945178986,0.696114242076874,-0.140449270606041,-0.704058945178986,0.696114242076874,-0.189136922359467,-0.96356338262558,0.189136937260628,0.140449270606041,-0.704058945178986,0.696114242076874,0.191961854696274,-0.191961854696274,0.962445497512817,-0.191961869597435,-0.191961869597435,0.962445497512817,-0.140449270606041,-0.704058945178986,0.696114242076874,0.191961854696274,-0.191961854696274,0.962445497512817,0.191961869597435,0.191961869597435,0.962445497512817,-0.191961869597435,0.191961869597435,0.962445497512817,-0.191961869597435,-0.191961869597435,0.962445497512817,0.191961869597435,0.191961869597435,0.962445497512817,0.14044925570488,0.704058945178986,0.696114242076874,-0.140449270606041,0.704058945178986,0.696114242076874,-0.191961869597435,0.191961869597435,0.962445497512817,0.14044925570488,0.704058945178986,0.696114242076874,0.189136922359467,0.96356338262558,0.189136937260628,-0.189136937260628,0.96356338262558,0.189136922359467,-0.140449270606041,0.704058945178986,0.696114242076874,0.494177132844925,-0.715246796607971,0.494177103042603,0.140449270606041,-0.704058945178986,0.696114242076874,0.189136937260628,-0.96356338262558,0.189136922359467,0.494177132844925,-0.715246796607971,0.494177103042603,0.693370819091797,-0.196147575974464,0.693370759487152,0.191961854696274,-0.191961854696274,0.962445497512817,0.140449270606041,-0.704058945178986,0.696114242076874,0.693370819091797,-0.196147575974464,0.693370759487152,0.693370819091797,0.196147590875626,0.693370819091797,0.191961869597435,0.191961869597435,0.962445497512817,0.191961854696274,-0.191961854696274,0.962445497512817,0.693370819091797,0.196147590875626,0.693370819091797,0.49417707324028,0.715246737003326,0.49417707324028,0.14044925570488,0.704058945178986,0.696114242076874,0.191961869597435,0.191961869597435,0.962445497512817,0.49417707324028,0.715246737003326,0.49417707324028,0.189136922359467,0.96356338262558,0.189136937260628,0.14044925570488,0.704058945178986,0.696114242076874, NormalsW a1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1 LayerElementUV Version101 Name"UVW" MappingInformationType"ByPolygonVertex" ReferenceInformationType"IndexToDirect" UV a0.927922010421753,0,0.927922010421753,0.0336160659790039,0,0.0336160659790039,0,0,0.927922010421753,0.0672320127487183,0,0.0672320127487183,0.927922010421753,0.932767987251282,0,0.932767987251282,0.927922010421753,0.966383993625641,0,0.966383993625641,0.927922010421753,1,0,1,0.963961005210876,0.0336160659790039,0.945941507816315,0,0.963961005210876,0.0672320127487183,0.963961005210876,0.932767987251282,0.963961005210876,0.966383993625641,0.945941507816315,1,1,0.0336160659790039,0.981980502605438,0,1,0.0672320127487183,1,0.932767987251282,1,0.966383993625641,0.981980502605438,1,0.927922010421753,0,0.927922010421753,0.0336160659790039,0,0.0336160659790039,0,0,0.927922010421753,0.0672320127487183,0,0.0672320127487183,0.927922010421753,0.932767987251282,0,0.932767987251282,0.927922010421753,0.966383993625641,0,0.966383993625641,0.927922010421753,1,0,1,0.963961005210876,0.0336160659790039,0.945941507816315,0,0.963961005210876,0.0672320127487183,0.963961005210876,0.932767987251282,0.963961005210876,0.966383993625641,0.945941507816315,1,1,0.0336160659790039,0.981980502605438,0,1,0.0672320127487183,1,0.932767987251282,1,0.966383993625641,0.981980502605438,1,0.927922010421753,0,0.927922010421753,0.0336160659790039,0,0.0336160659790039,0,0,0.927922010421753,0.0672320127487183,0,0.0672320127487183,0.927922010421753,0.932767987251282,0,0.932767987251282,0.927922010421753,0.966383993625641,0,0.966383993625641,0.927922010421753,1,0,1,0.963961005210876,0.0336160659790039,0.945941507816315,0,0.963961005210876,0.0672320127487183,0.963961005210876,0.932767987251282,0.963961005210876,0.966383993625641,0.945941507816315,1,1,0.0336160659790039,0.981980502605438,0,1,0.0672320127487183,1,0.932767987251282,1,0.966383993625641,0.981980502605438,1,0.927922010421753,0,0.927922010421753,0.0336160659790039,0,0.0336160659790039,0,0,0.927922010421753,0.0672320127487183,0,0.0672320127487183,0.927922010421753,0.932767987251282,0,0.932767987251282,0.927922010421753,0.966383993625641,0,0.966383993625641,0.927922010421753,1,0, UVIndex a0,1,2,3,1,4,5,2,4,6,7,5,6,8,9,7,8,10,11,9,12,1,13,12,14,4,1,14,15,6,4,15,16,8,6,16,17,8,18,12,19,18,20,14,12,20,21,15,14,21,22,16,15,22,23,16,24,25,26,27,25,28,29,26,28,30,31,29,30,32,33,31,32,34,35,33,36,25,37,36,38,28,25,38,39,30,28,39,40,32,30,40,41,32,42,36,43,42,44,38,36,44,45,39,38,45,46,40,39,46,47,40,48,49,50,51,49,52,53,50,52,54,55,53,54,56,57,55,56,58,59,57,60,49,61,60,62,52,49,62,63,54,52,63,64,56,54,64,65,56,66,60,67,66,68,62,60,68,69,63,62,69,70,64,63,70,71,64,72,73,74,75,73,76,77,74,76,78,79,77,78,80,81,79,80,82,83,81,84,73,85,84,86,76,73,86,87,78,76,87,88,80,78,88,89,80,90,84,91,90,92,86,84,92,93,87,86,93,94,88,87,94,95,88,96,97,83,98,75,99,100,101 LayerElementMaterial Version101 Name"MaterialLayer" MappingInformationType"ByPolygon" ReferenceInformationType"IndexToDirect" Materials a0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0 Layer Version100 LayerElement Type"LayerElementUV" TypedIndex0 Model Version232 Properties70 "ScalingMax"0 "DefaultAttributeIndex"0 "LclTranslation"600 "LclRotation"-153.461961110056 "LclScaling"1 ShadingY Culling"CullingOff" Material Version102 ShadingModel"phong" MultiLayer0 Properties70 "AmbientColor"0 "ShininessExponent"32 "ReflectionFactor"0 "Emissive"0 "Ambient"0 "Diffuse"0.8 "Specular"0.2 "Shininess"32 "Opacity"1 "Reflectivity"0 AnimationStack AnimationLayer Connections C"OO",418509248,228829472 Quote Link to comment Share on other sites More sharing options...
JCPalmer Posted December 14, 2016 Share Posted December 14, 2016 just my 2 cents. I looked at the FBX format briefly for something, and quickly decided to run the other way. I would suggest that the output of a .babylon has advantages: You need not write the process in Typescript, and might possibly use an SDK to eliminate parsing yourself (maybe even handle both binary & ascii). There would be an intermediate output to check your work. Offline processing might be faster than trying to do it in the scene. This also may allow you to do optimizations to reduce vertices. This is really helps both Blender & 3DSMax exporters. I think trying to do that optimization right in the scene might be a little aggressive. The only downside is you cannot do something a .babylon cannot do. I have a very divergent texture loading process for the source code generating exporter for Blender. Would only do 4 decimals of precision for a .bablyon. Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 14, 2016 Author Share Posted December 14, 2016 that's what I am doing... o_O I am making a tool that you do prior and it will structure it all and conform it to a new 3d object called a bjx that I am going to write the importer for as well for babylon. Once Im done with the restructure it will build into a scene where you can modify everything on the fly then export the bjx object, which will hopefully have a lot of the dynamic content embeded. Textures will be easy models ect, the animations are what im worried about. What you are seeing on that output, is the return of the fbx file that got broke down and structured correctly and took out all the P: an placed correct variable names, I just gotta do a break down and ordering of the connections and the actual vert arrays will be easy. Then its just starting to push it all into a scene to preview it (a unnecessary step but a nice feature). Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 15, 2016 Author Share Posted December 15, 2016 https://banexdevblog.wordpress.com/2014/06/23/a-quick-tutorial-about-the-fbx-ascii-format/ by the way, if you don't like the blender docs, there is always this. Which kinda includes the stuff Im gonna just have in the alpha release of this by hopefully this weekend. Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 17, 2016 Author Share Posted December 17, 2016 well, I got this like 80% done... there are a few bugs... but seeing how no one really was interested I think I may sit on this for a while. ****THREAD DEAD.... Quote Link to comment Share on other sites More sharing options...
adam Posted December 17, 2016 Share Posted December 17, 2016 2 minutes ago, Pryme8 said: but seeing how no one really was interested Are we on the same forum? On 12/10/2016 at 3:42 AM, iTekVR said: thank you, Pryme8 looking forward for the FBX Loader! On 12/6/2016 at 0:04 PM, Deltakosh said: By the way I really appreciate that you take time to do this. It's gonna be a huge addition to our framework On 12/10/2016 at 9:11 PM, ProfessorF said: But I'd love to compare notes. Visam 1 Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 17, 2016 Author Share Posted December 17, 2016 @adam Im in a pissy mood today... I need to stop being a b****... Sorry guys :-( I will wrap this up as soon as I get a chance I have the objects loading and all the subobjects being identified and the connections being made... so its like pretty much done I just am having a bad week I guess and am being a poon... I think I just need to take a break for the weekend and refocus... Quote Link to comment Share on other sites More sharing options...
adam Posted December 17, 2016 Share Posted December 17, 2016 Sounds like a good idea. Take care of yourself. Quote Link to comment Share on other sites More sharing options...
Pryme8 Posted December 17, 2016 Author Share Posted December 17, 2016 Thanks Adam, you kinda snapped me out of it I appreciate it dude. Hope you have fun this Holiday Season, stay safe! Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted December 18, 2016 Share Posted December 18, 2016 Man don't be upset we are all interested by your work! I guess this forum was clearly happy about your idea. Keep up the good work man. But take care of you first Visam 1 Quote Link to comment Share on other sites More sharing options...
