Terrain Material is dark at texture transitions

[aWeirdo]

Hi guys, i notised that when using terrain material, the transition between two materials is very dark and not very pretty to look at..

I found out that you can fix it by throwing in 1-2 pixels of the two meeting colors mixed together 50/50, e.g. red & green = yellow

But doing that manually on a large scale is rather time consuming so i wanted to ask here if anyone knows if the "darkening" can be avoid via coding.

examples:

//The terrain material PG with flat ground, the darkness is very visible around the small spot of bricks.
http://www.babylonjs-playground.com/#E6OZX#55

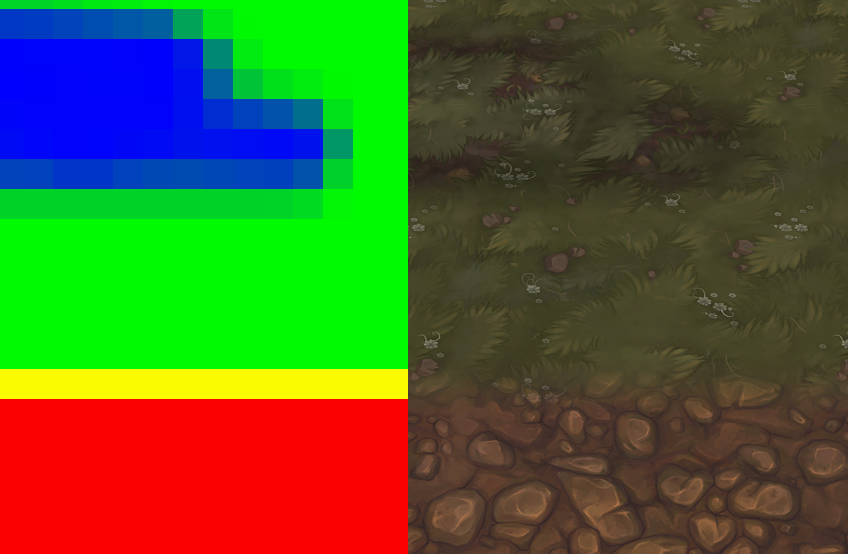

//Side by side comparison, you can see where the yellow line is added, there is no darkness between the textures, but where it changes between blue & green the edges are darkend slightly.

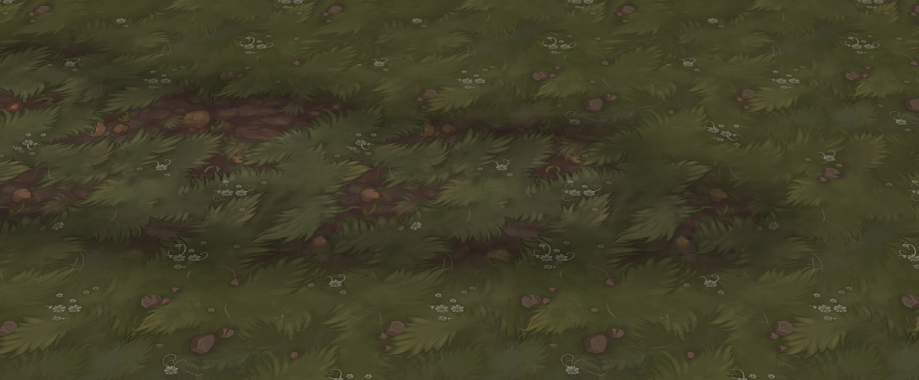

//Better visiblity of the darkness, Here the dark "outline" is very distinct

[NasimiAsl]

hi

this is your alternative solution if you can not find your solution in standard material you can fix that with customshader

http://www.babylonjs-playground.com/#E6OZX#58



[aWeirdo]

@NasimiAsl That is awesome

[NasimiAsl]

you welcome for complete this ask anything you want

[julien-moreau]

Hello @aWeirdo

Actually, the terrain material mixes the 3 textures according to RBA (just a simple mix).
If I understand, do you prefer to mix only R and G if B is equal to 0 ? (for example)

Thanks !

[NasimiAsl]

in shaderBuilder you can mix 8 color

black ,red ,green ,blue, yellow ,cyan ,pink ,  white

and you can use step too  ( for example 0-255 > 0-50 , 50-100 , 100 - 150 , 150-200 , 200-255 )

usage

1. get Mixed Reference

.Reference( [ref number = 1] , BABYLONX.Helper().Map({ path:'mixMap' }).Build()  /* mak mix map material */ )

2.  replace your Color with your wanted Material

.Red( [ref number = 1] , BABYLONX.Helper(). [custom material ] .Build() , option  ) // You can use all 8 color

3. option :

export interface IReplaceColor {

rangeStep: any, // control your color area 0.4888 (nan range) -0.4888 (full range)
rangePower: any // control your color power 0. (default)



colorIndex: number, // choose color index 0-4
colorStep: number, // count of color level for example 5 => 0-51 ,52 - 102 , ...
indexToEnd: boolean, // if that is true fill your color from index to end of color

}

[aWeirdo]

4 hours ago, Luaacro said:

Hello @aWeirdo

Actually, the terrain material mixes the 3 textures according to RBA (just a simple mix).
If I understand, do you prefer to mix only R and G if B is equal to 0 ? (for example)

Thanks !

Hi @Luaacro

What i ment was that if you go strait from red to blue or blue to green or green to red, the transition between the textures are darkend,

if you look at my second picture in the original post,
you can see a clear dark outline where the textures transition between grass and grass with dirt spots
