Webpage crashes when loading obj file

[cxiao1]

Hello,

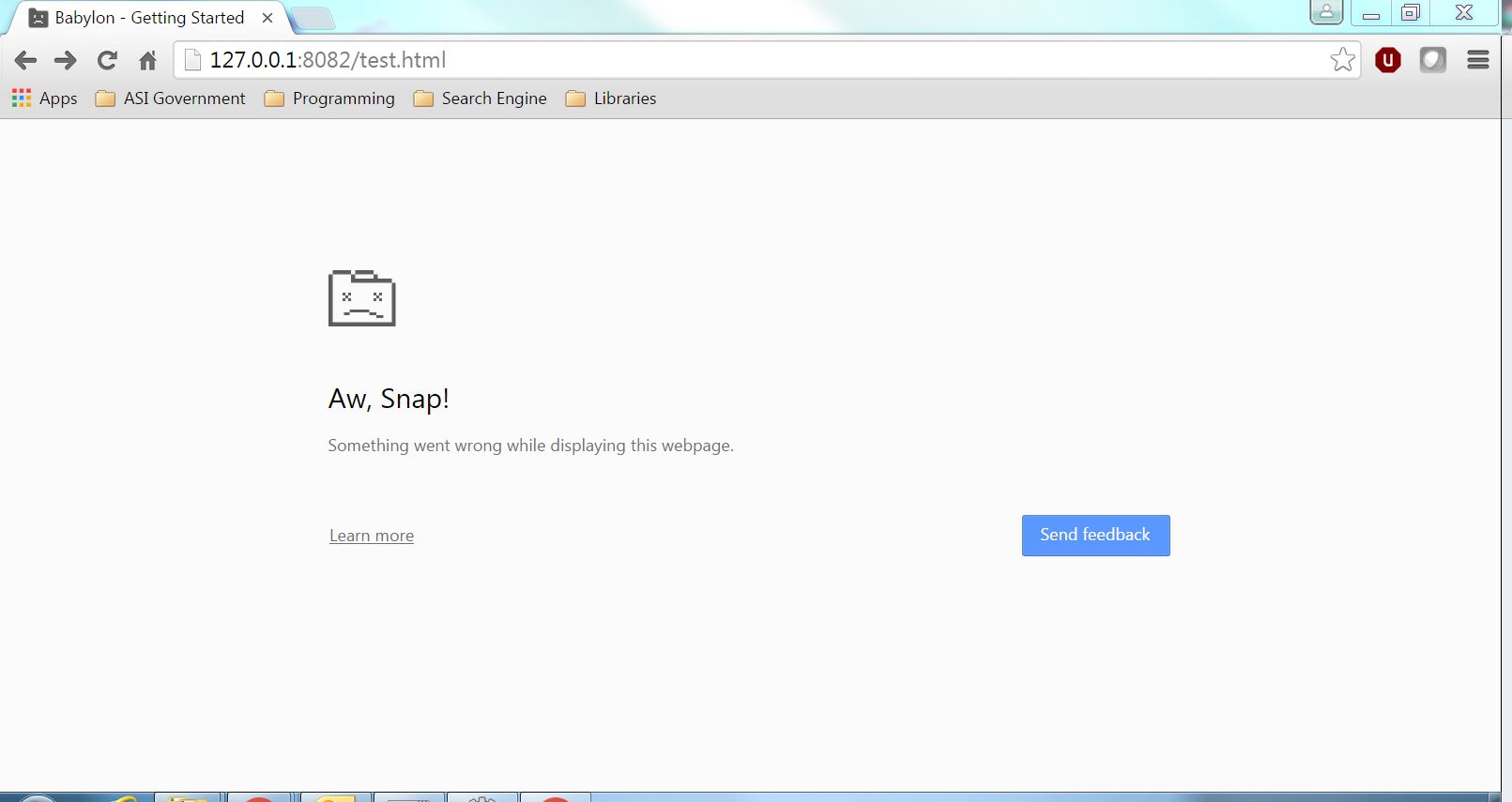

I purchased a 3d scene in the file format of obj, as well as some texture files. The obj file has 187 MB. I tried using the following code to load the obj file (I tested my code with other obj sample files, works ok). However, after a while of loading, my webpage crashes afterwards. I uploaded the screenshot of the webpage after it crashes.

I use babylon.2.4.js, babylon.objFileLoader.js, node.js for my web service and IIS for the server.

I was wondering can anyone help me with this issue?

Thank you so much!!!

Yours Sincerely,

Chi Xiao

var camera, scene;

window.addEventListener('DOMContentLoaded', function()
{
   var canvas = document.getElementById('renderCanvas');
   var engine = new BABYLON.Engine(canvas, true);

   engine.enableOfflineSupport = false;

   BABYLON.SceneLoader.Load("http://127.0.0.1:8082/scenes/kc8/", "kc8.obj",  engine, function (newScene)
   {
      camera = new BABYLON.ArcRotateCamera("Camera", 3 * Math.PI / 2, Math.PI / 8, 50, BABYLON.Vector3.Zero(), newScene);
      camera.attachControl(canvas, true);

      var light = new BABYLON.HemisphericLight("hemi", new BABYLON.Vector3(0, 1, 0), newScene);
      light.diffuse = new BABYLON.Color3(1, 1, 1);
      light.specular = new BABYLON.Color3(1, 1, 1);
      light.groundColor = new BABYLON.Color3(0, 0, 0);

      engine.runRenderLoop(function()
      {
         newScene.render();
      });

      window.addEventListener('resize', function()
      {
         engine.resize();
      });
   });
});



[GameMonetize]

This "should" work

Do you mind publishing it somewhere so we can debug it?

[cxiao1]

@Deltakosh

Thank you so much for your reply

Do you mean publishing the obj file?

[max123]

187mb? How many vertices?

[cxiao1]

@max123

• AnimatedNo
• RiggedNo
• VR / AR / Low-polyYes
• GeometryPolygon mesh
• Polygons1,252,371
• Vertices1,600,638
• TexturesYes
• MaterialsYes
• UV MappingYes
• Unwrapped UVsMixed
• Plugins usedNo

[JCPalmer]

One thing you might do is to set the logging level before starting.  This will give you a status of each mesh / material / light / camera that got loaded

BABYLON.SceneLoader.loggingLevel = BABYLON.SceneLoader.DETAILED_LOGGING;

Unless this is just a single mesh .

[cxiao1]

@JCPalmer

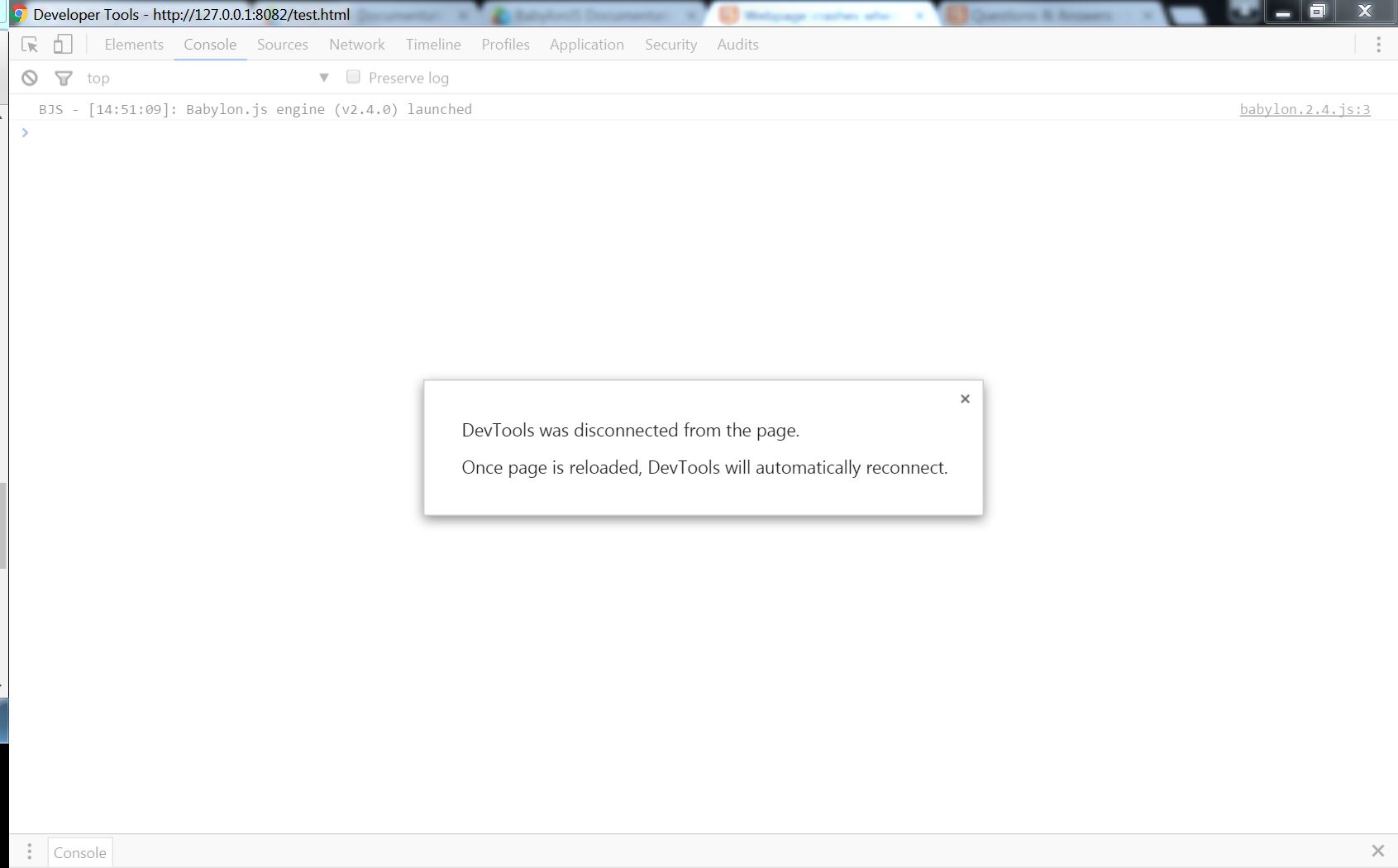

I added it in my code and run my html again. Got the same crash, but don't see any logs. Where are the logs displayed?

[JCPalmer]

Should be the console.  I guess this is only for the .babylon loader, though I implemented the info in .toString() methods of the created objects.  This should enable the obj or glTF to add without doing too much.

Worth a try.  I know nothing about OBJ, so I'm out, sorry.

[max123]

1 hour ago, cxiao1 said:

@max123

• AnimatedNo
• RiggedNo
• VR / AR / Low-polyYes
• GeometryPolygon mesh
• Polygons1,252,371
• Vertices1,600,638
• TexturesYes
• MaterialsYes
• UV MappingYes
• Unwrapped UVsMixed
• Plugins usedNo

1.6 mil vertices could be a problem: WebGL uses unsigned shorts and bytes for indices, according to this. Which gives you around 65k vertices.

[JCPalmer]

@max123, Think that (well know) BJS checks if your WebGL is capable when loading indexes > 16 bit.  If so, limit per mesh is 16,777,216.

This could be tripping up the loader though.  There is special logic in the Blender exporter to split up meshes unless there are multiple materials for meshes > 65535.  I should also mention that BJS's definition of Vertices is likely different than whatever creates a .OBJ file.  Not sure the loader does the optimization though.

[GameMonetize]

We may need the .obj file to debug. Pinging @Temechon who built the loader
