Problems with Texture onLoad callback

[JCPalmer]

I was trying to take advantage of the probably seldom used callback option when loading textures are complete.  I know about scene.getWaitingItemsCount(), but wanted to see if could have better control for my TOB computer generated source code for when a mesh/meshes are first displayed.  Could be useful for adding meshes once a game begins in a professional way.

I am hand modifying computer built code to nail down all the requirements first.  Added a module internal function to be the callback and properties:

    var waitingMeshes = [];
    var pendingTextures = 0;
    function onTexturesLoaded(){
    	if (--pendingTextures > 0){
    		return;
    	}

    	for (var i = 0, len = waitingMeshes.length; i < len; i++){
    		waitingMeshes[i].setEnabled(true);
    	}
    	waitingMeshes = [];
    }

In each Mesh class I added the lines starting with '++', so the mesh will not initially be enabled the first instance:

    var Voice_sync_female_Body = (function (_super) {
        __extends(Voice_sync_female_Body, _super);
        function Voice_sync_female_Body(name, scene, materialsRootDir, source) {
            _super.call(this, name, scene, null, source, true);

++          this.setEnabled(matLoaded && true);
++          if (!matLoaded) waitingMeshes.push(this); // not present if should not be enabled

            if (!materialsRootDir) { materialsRootDir = "./"; }
            defineMaterials(scene, materialsRootDir); //embedded version check
...

In the method defineMaterials, every material which is still not loaded, I bump the pendingTextures++.  It works, but I also had to modify the texture constructor to add the onload arg like:

texture = new B.Texture("skin.png", scene, false, false, BABYLON.Texture.TRILINEAR_SAMPLINGMODE, onTexturesLoaded);

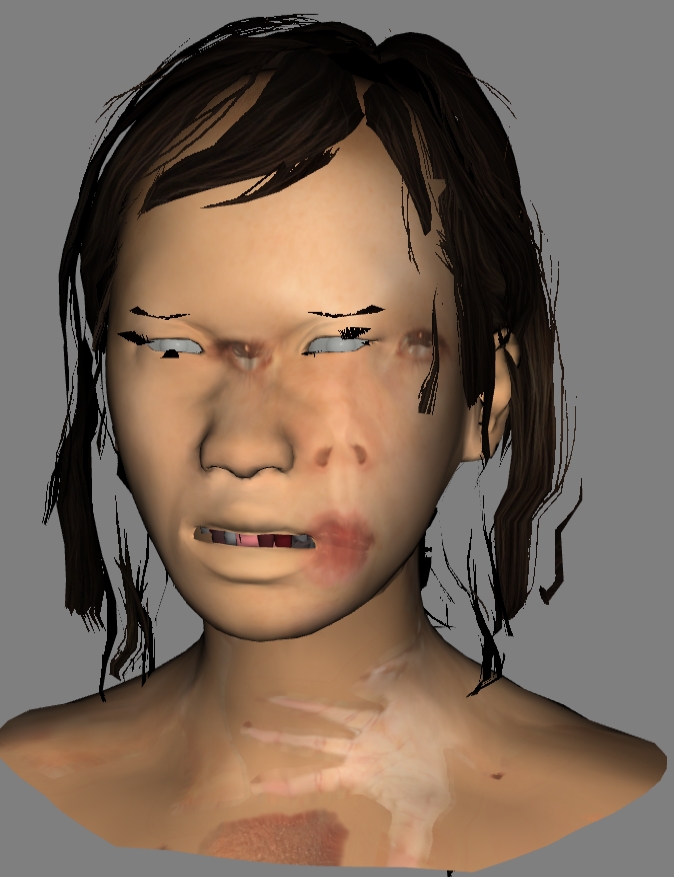

Also have to say ", false, false, BABYLON.Texture.TRILINEAR_SAMPLINGMODE, " because the argument is way to the right.  This is what I get.  Any ideas, please?

[tips4design]

Looks good to me



[JCPalmer]

Well, slept on it.  While getting the texture is the part making everything async, the material still needs to be compile/ bound to mesh once you have all the textures.  Maybe forget about the texture.  Would registering an onBind observable for each material maybe be the callback to use?

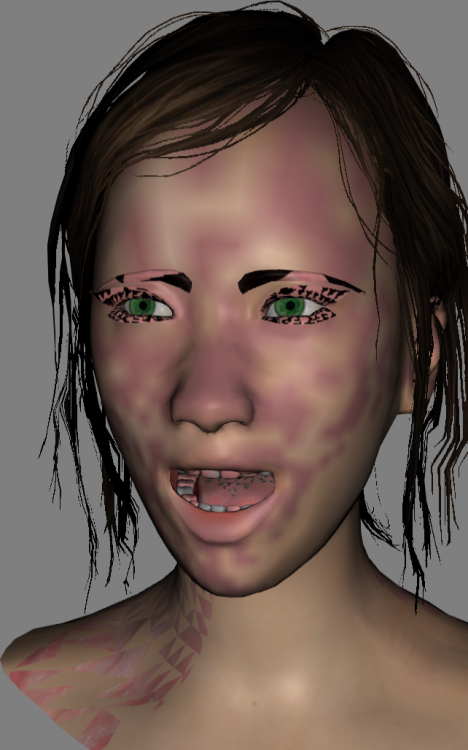

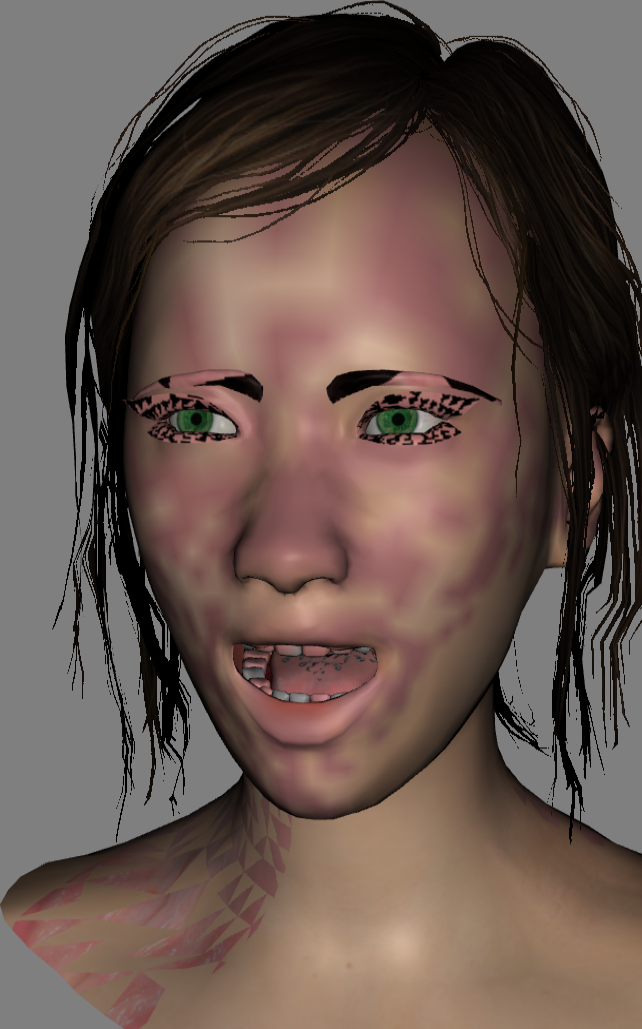

If you liked that image, I made another one a while ago when I was attempting in Blender to merge textures to reduce draw calls that went horribly wrong.  Enjoy!  I have had some experiments, especially in animation dev, that I wish I had saved.  They were just spectacular.

[JCPalmer]

found the problem.  It was how I filled in the extra constructor args to get to the onload callback arg.

", false, true, B.Texture.TRILINEAR_SAMPLINGMODE" worked.  Not sure why .  The typescript signature is :

constructor(
    url: string,
    scene: Scene,
    noMipmap?: boolean,
    invertY?: boolean,
    samplingMode: number = Texture.TRILINEAR_SAMPLINGMODE,
    onLoad: () => void = null,
    onError: () => void = null,
    buffer: any = null,
    deleteBuffer: boolean = false)

wouldn't the implied default for noMipmap & invertY be false?  Must admit I did not think these were inverted.

[GameMonetize]

i should explicitly set values instead of using "?"

[JCPalmer]

Yes, an "arg = true" syntax is much easier, especially with negative arguments like "noMipmap".  BTW what is the default for that?

I have it in computer built code now. Using isVisible instead of enabled gave exact results.  Any Mesh in a TOB export JS file now pops into being all at the exact same time along with any children.  Very clean.  I also put a hook in to let any hand written base class use the function "grandEntrance" t instead.  This will handle any beam-in, or kung-fu  animation shit you can dream up.

var waitingMeshes = [];
var pendingTextures = 0;
function onTexturesLoaded(){
    if (--pendingTextures > 0) return;
    for (var i = 0, len = waitingMeshes.length; i < len; i++){
        if (typeof waitingMeshes[i].grandEntrance == "function") waitingMeshes[i].grandEntrance();
        else waitingMeshes[i].isVisible = true;
    }
    waitingMeshes = [];
    matLoaded = true;
}

I have just looked up what a Mipmap is.  Pretending anyone but me uses Tower of Babel exporter, would a "Use Mipmap" check box be good?  Do not think it could not be in the .babylon exporter, sorry.

[GameMonetize]

Yes mipmap is true by default so this is cool

I mean:

noMipMap = false by default (stupid naming...)

invertY = false by default
