applying texture problem - how to be?

[sociofob]

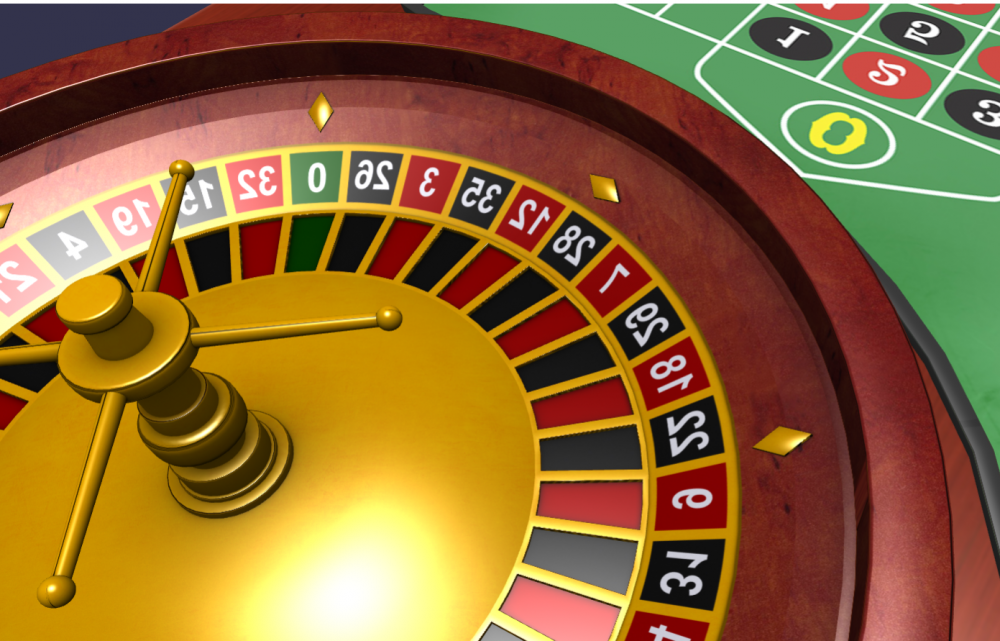

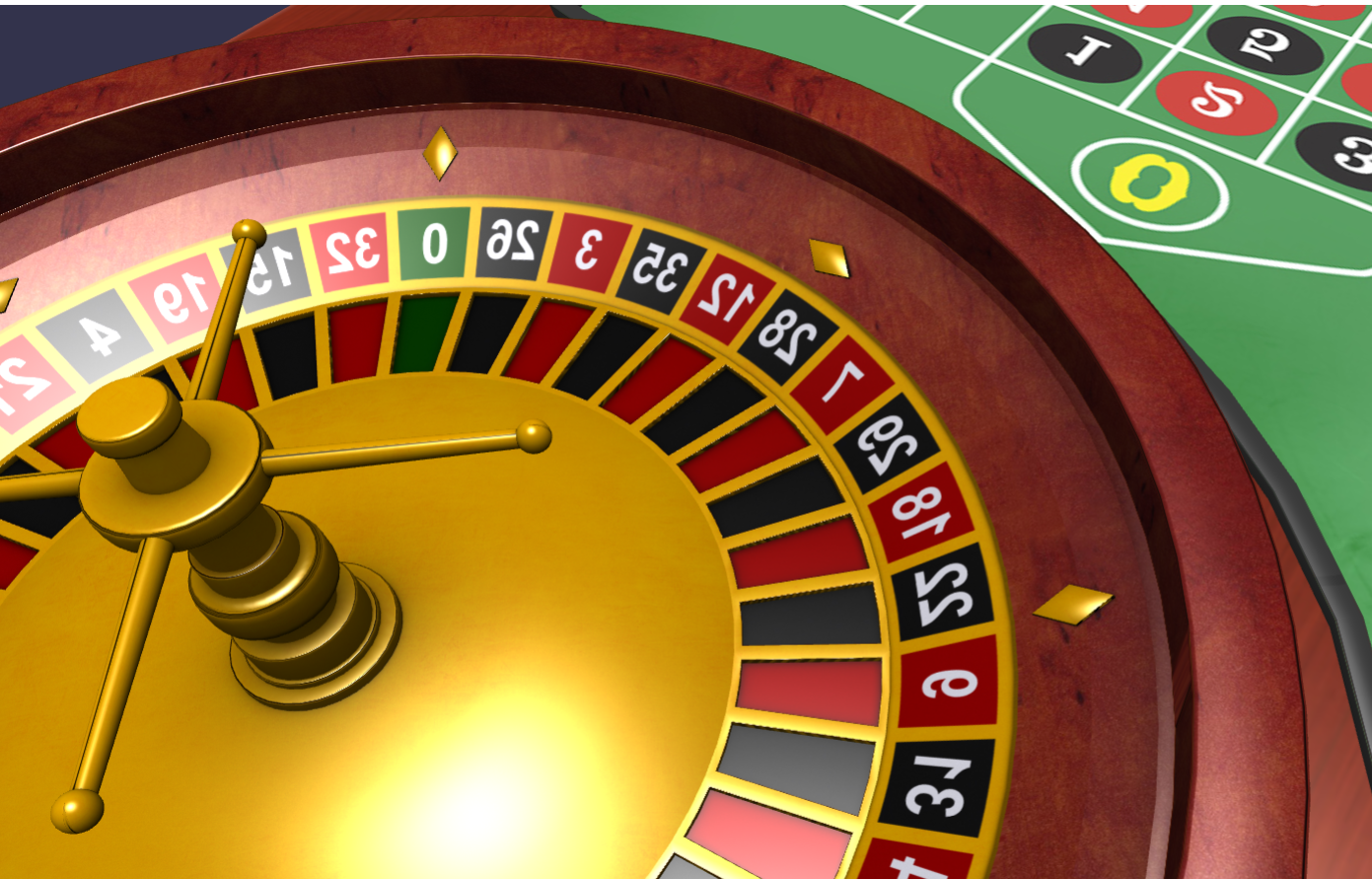

I'm trying to apply texture to my mesh, everything looks good except one thing: numbers are like on the photo attached. Does anyone know what is solution here?

[GameMonetize]

Hello and welcome

Can you try to set invertY =  false when creating your texture?

But perhaps I should ask first: How do you create the scene? Is it loaded from Blender or 3dsmax export?

[sociofob]

3 hours ago, Deltakosh said:

Hello and welcome

Can you try to set invertY =  false when creating your texture?

But perhaps I should ask first: How do you create the scene? Is it loaded from Blender or 3dsmax export?

Thank you for reply, Deltakosh

I added a line to my code, liek this:

var materialRoulette = new BABYLON.StandardMaterial("textureRoulette", scene);
materialRoulette.invertY=false;
materialRoulette.diffuseTexture = new BABYLON.Texture("Textures/reversedRoulette.jpg", scene);

Unfortunately, it didn't help.

I use the 3d object from blender.

1)I'm loading the object

var loader = new BABYLON.AssetsManager(scene);
tree = loader.addMeshTask("roulette", "", "", "roulette1.obj");

2)Then I'm adding each mesh to the array

t.loadedMeshes.forEach(function(m) {
			treeMeshArr.push(m);
        });

3)Attaching texture to meshes:

treeMeshArr[0].material=materialBlack;
treeMeshArr[1].material=materialRoulette
treeMeshArr[2].material=materialWheel;



[GameMonetize]

ok gotcha! but you have to set the invertY parameter of the constructor: http://doc.babylonjs.com/classes/2.3/Texture#new-texture-classes-2-3-texture-url-scene-nomipmap-inverty-samplingmode-onload-onerror-buffer-deletebuffer-

[sociofob]

My bad, and now I set invertY parameter to false properly

materialWheel.diffuseTexture = new BABYLON.Texture("Textures/wheel1.jpg", scene,false,false);

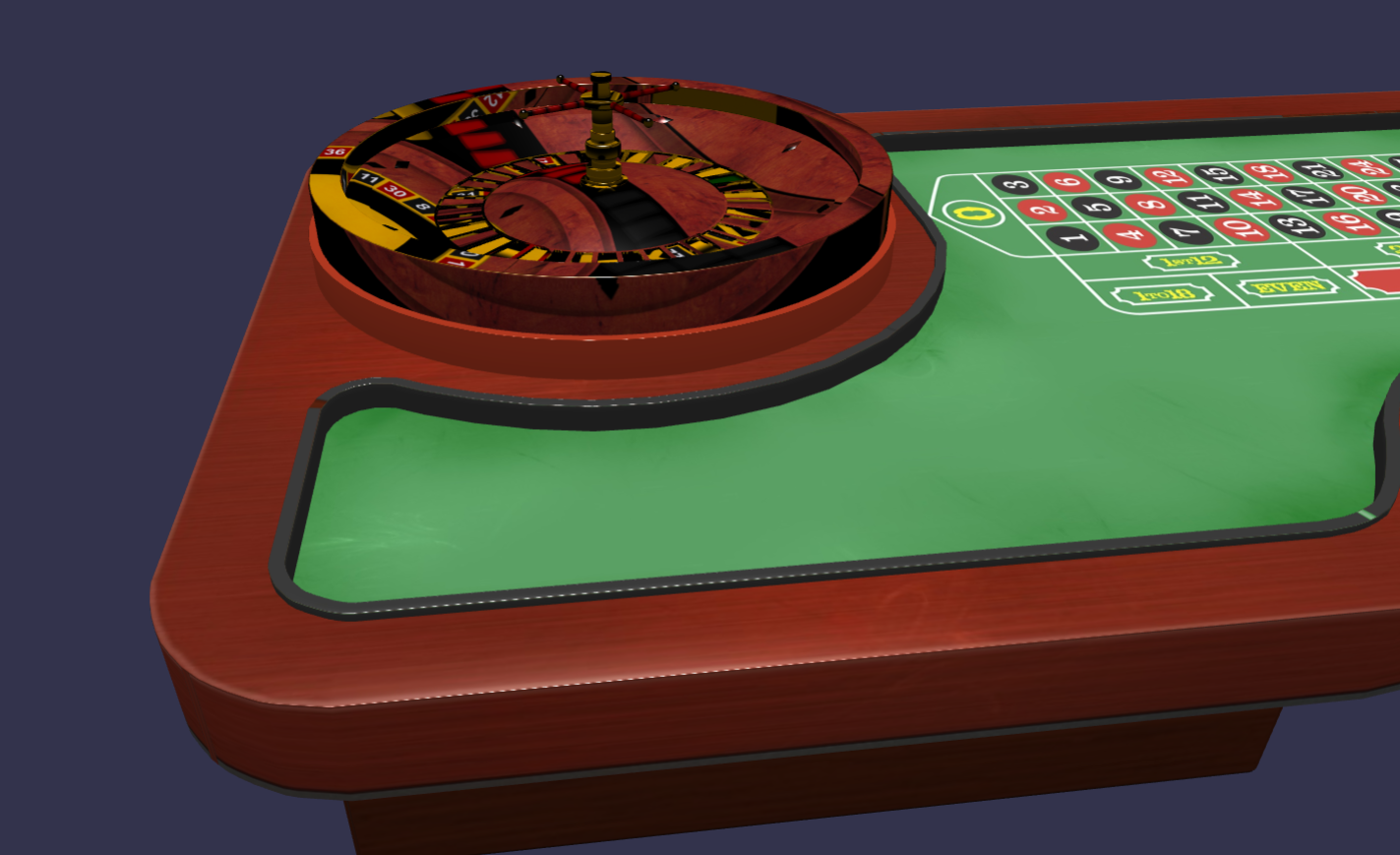

But, it got much worse:

[GameMonetize]

Ok:)

I thought every number was a different object

Can you try to manually flip your texture on X-axis? (using a paint tool)

[sociofob]

1 hour ago, Deltakosh said:

Ok:)

I thought every number was a different object

Can you try to manually flip your texture on X-axis? (using a paint tool)

Yep, It might help, but it's pretty different to flip round texture.

By the way, I found the solution! It is about inverting 3d model in blender on Y axis.



[GameMonetize]

excellent
