NasimiAsl Posted December 13, 2016 Share Posted December 13, 2016 hi again ( i don't know but i feel someone hate me when i reply ) http://www.babylonjs-playground.com/#D6IPT#3 that take a 2 min time for calculate (i can fix that 'maybe') and i find something new in babylon JS about create line you can make split Path in MeshLine when you set { x:NaN , y:0,z:0 } that is wonderful for make Optimized Wireframe @ozRocker i think that can make 90% solution static GetQuadPoints(geo: Geometry) : any { var quad = []; for (var i = 0; i < geo.faces.length; i += 3) { quad.push({ a: geo.vertices[geo.faces[i]], b: geo.vertices[geo.faces[i + 1]], c: geo.vertices[geo.faces[i+2]] }); } function len(p1, p2) { return Math.sqrt(Math.pow(p1.x - p2.x, 2.) + Math.pow(p1.y - p2.y, 2.) + Math.pow(p1.z - p2.z, 2.)); } function eq(p1, p2) { return len(p1,p2) < 0.00001; } function getQuad(r, ind) { var res = []; for (var qa in quad) { var q = quad[qa]; var p1, p2, p3, p4; var findMatch = true; if (qa == ind) { findMatch = false; continue; } if (eq(q.a, r.a) && eq(q.b, r.b)) { p1 = q.a; p2 = q.b; p3 = q.c; p4 = r.c; } else if (eq(q.a, r.a) && eq(q.b, r.c)) { p1 = q.a; p2 = q.b; p3 = q.c; p4 = r.b; } else if (eq(q.a, r.b) && eq(q.b, r.a)) { p1 = q.a; p2 = q.b; p3 = q.c; p4 = r.c; } else if (eq(q.a, r.b) && eq(q.b, r.c)) { p1 = q.a; p2 = q.b; p3 = q.c; p4 = r.a; } else if (eq(q.a, r.c) && eq(q.b, r.a)) { p1 = q.a; p2 = q.b; p3 = q.c; p4 = r.b; } else if (eq(q.a, r.c) && eq(q.b, r.b)) { p1 = q.a; p2 = q.b; p3 = q.c; p4 = r.a; } else if (eq(q.b, r.a) && eq(q.c, r.b)) { p1 = q.b; p2 = q.c; p3 = q.a; p4 = r.c; } else if (eq(q.b, r.a) && eq(q.c, r.c)) { p1 = q.b; p2 = q.c; p3 = q.a; p4 = r.b; } else if (eq(q.b, r.b) && eq(q.c, r.a)) { p1 = q.b; p2 = q.c; p3 = q.a; p4 = r.c; } else if (eq(q.b, r.b) && eq(q.c, r.c)) { p1 = q.b; p2 = q.c; p3 = q.a; p4 = r.a; } else if (eq(q.b, r.c) && eq(q.c, r.a)) { p1 = q.b; p2 = q.c; p3 = q.a; p4 = r.b; } else if (eq(q.b, r.c) && eq(q.c, r.b)) { p1 = q.b; p2 = q.c; p3 = q.a; p4 = r.a; } else if (eq(q.c, r.a) && eq(q.a, r.b)) { p1 = q.c; p2 = q.a; p3 = q.b; p4 = r.c; } else if (eq(q.c, r.a) && eq(q.a, r.c)) { p1 = q.c; p2 = q.a; p3 = q.b; p4 = r.b; } else if (eq(q.c, r.b) && eq(q.a, r.a)) { p1 = q.c; p2 = q.a; p3 = q.b; p4 = r.c; } else if (eq(q.c, r.b) && eq(q.a, r.c)) { p1 = q.c; p2 = q.a; p3 = q.b; p4 = r.a; } else if (eq(q.c, r.c) && eq(q.a, r.a)) { p1 = q.c; p2 = q.a; p3 = q.b; p4 = r.b; } else if (eq(q.c, r.c) && eq(q.a, r.b)) { p1 = q.c; p2 = q.a; p3 = q.b; p4 = r.a; } else { findMatch = false; continue; } // quad Condition if (findMatch) { if (len(p1, p2) >= Math.max(len(p1, p2), Math.max(len(p1, p3), Math.max(len(p2, p3), Math.max(len(p1, p4), len(p2, p4)))))) { res.push([p1, p3, p2, p4, p1]); } } } return res; } var result = []; for (var g1 in quad) { var q = quad[g1]; var rs = getQuad(q, g1); if (rs != null) result.push(rs); } return result; } Nabroski 1 Quote Link to comment Share on other sites More sharing options...
ozRocker Posted December 13, 2016 Author Share Posted December 13, 2016 That looks pretty good @NasimiAsl I think some polygons might be missing. This shader sometimes crashes the browser though. I'm using Chrome on a Windows desktop Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted December 13, 2016 Share Posted December 13, 2016 Just now, ozRocker said: That looks pretty good @NasimiAsl I think some polygons might be missing. This shader sometimes crashes the browser though. I'm using Chrome on a Windows desktop that is not shaderBuilder i just find quad from geometry data with condition you can see the source Quote Link to comment Share on other sites More sharing options...

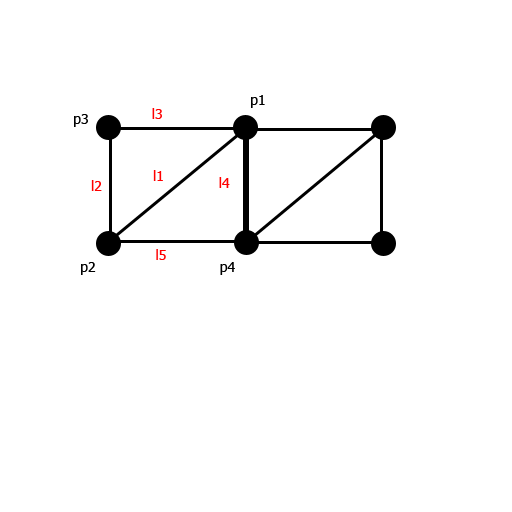

NasimiAsl Posted December 13, 2016 Share Posted December 13, 2016 just find p1 and p2 ( 2 points in coordinate of the 2 face) and check this condition l1 > = max(l1,l2,l3,l4,l5) Quote Link to comment Share on other sites More sharing options...

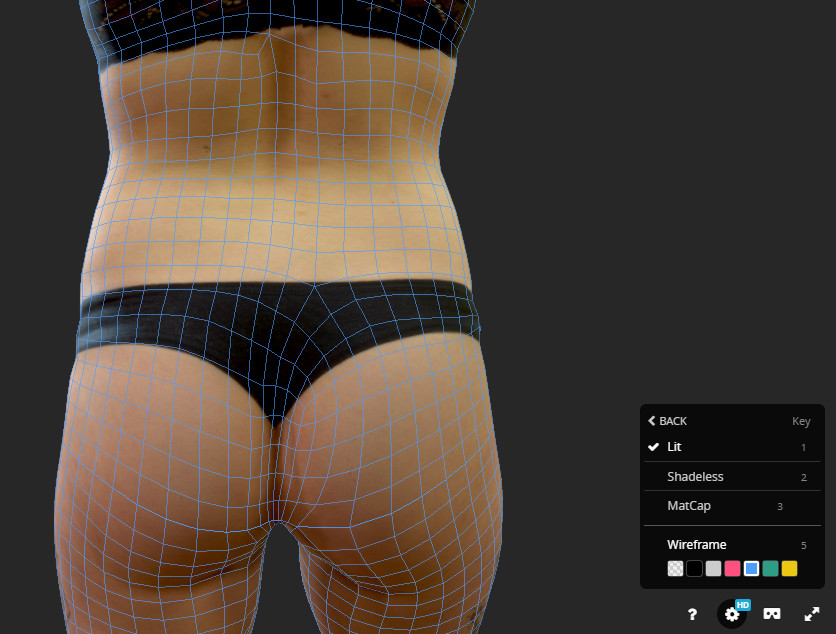

ozRocker Posted December 13, 2016 Author Share Posted December 13, 2016 8 minutes ago, NasimiAsl said: that is not shaderBuilder i just find quad from geometry data with condition you can see the source ah ok, I see what you're doing. That's pretty neat. Its not completely accurate result though. I wonder how Sketchfab makes such an accurate wireframe, and so quick to load. https://sketchfab.com/models/818277492a3346728958d7de33b9f9b1 adam 1 Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted December 13, 2016 Share Posted December 13, 2016 i know how can i make that but for this time i just load triangulate Polygon but you can get accurate result when you have Quadrangulate Polygon i need time to attach that for my .Obj Loader Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted December 13, 2016 Share Posted December 13, 2016 But I'm wondering if the quads are the same in Sketchfab and in Blender adam 1 Quote Link to comment Share on other sites More sharing options...
Nabroski Posted December 14, 2016 Share Posted December 14, 2016 @ozRocker i crushed the texture to much (72kB). as long NasimiAsl writing a shader u can do in better! http://babylonjs-playground.com/#1LMACK#1 adam and GameMonetize 2 Quote Link to comment Share on other sites More sharing options...
ozRocker Posted December 14, 2016 Author Share Posted December 14, 2016 8 minutes ago, Nabroski said: @ozRocker i crushed the texture to much (72kB). as long NasimiAsl writing a shader u can do in better! http://babylonjs-playground.com/#1LMACK#1 That's pretty cool! (I got rid of the seams here http://babylonjs-playground.com/#1LMACK#2 ) I thought about doing this technique if its not possible to render a wireframe using babylon.js in realtime. I like how the wireframe is on top of the diffuse texture so you can see exactly what's happening. So much better than having a wireframe which shows front and back at the same time. I'm testing it out on iPhone but so far nothing is showing up :/ Quote Link to comment Share on other sites More sharing options...
Nabroski Posted December 14, 2016 Share Posted December 14, 2016 27 minutes ago, ozRocker said: I'm testing it out on iPhone but so far nothing is showing up :/ If i hang longer around here i will never be able to test it with an iphone. Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted December 14, 2016 Share Posted December 14, 2016 How do you generate this texture? Quote Link to comment Share on other sites More sharing options...
Nabroski Posted December 14, 2016 Share Posted December 14, 2016 he unwrap it manually. I think he also imported uv information to Scetchfab. (texture1D to fragment and then some lines, maybe) Quote Link to comment Share on other sites More sharing options...

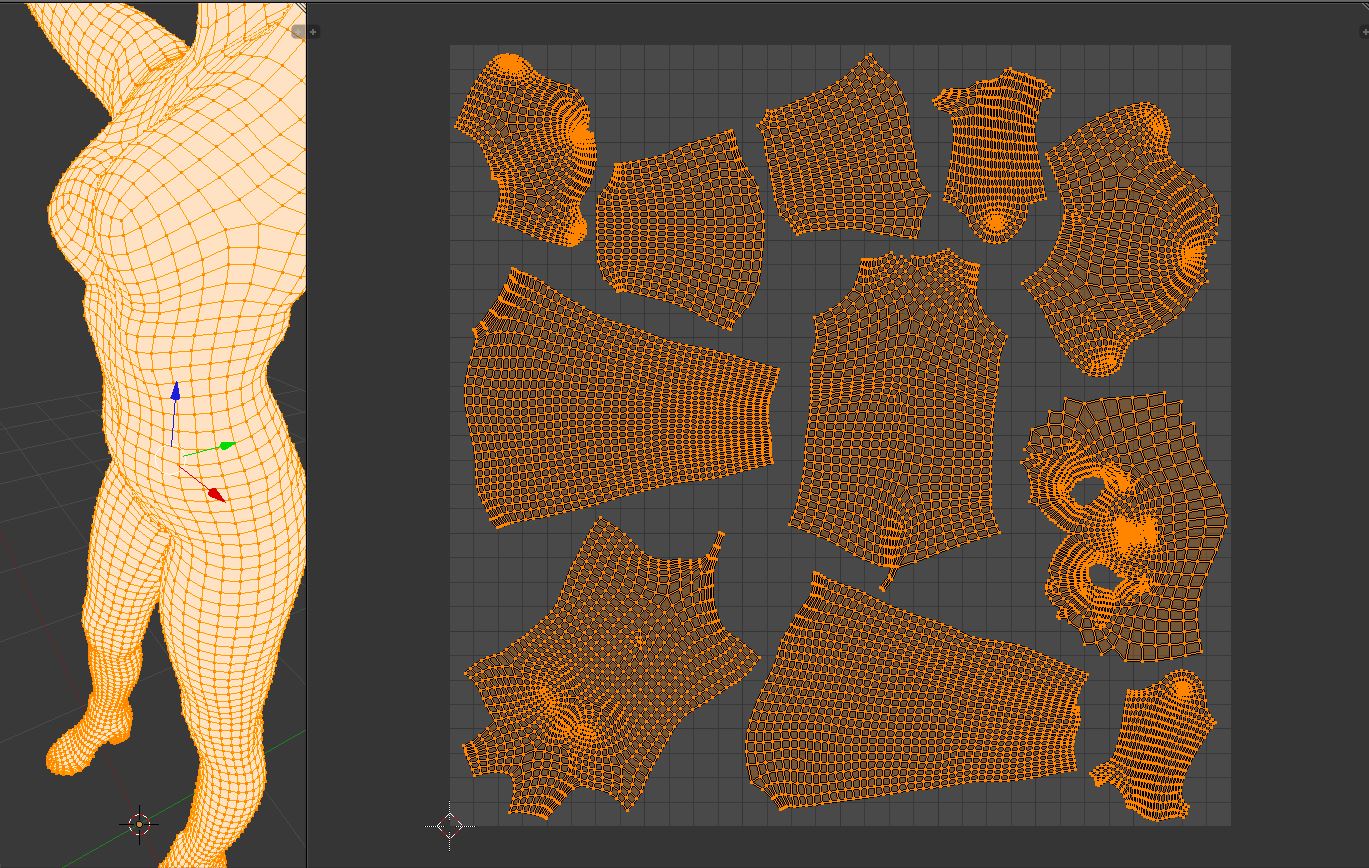

ozRocker Posted December 14, 2016 Author Share Posted December 14, 2016 46 minutes ago, Deltakosh said: How do you generate this texture? Blender has an option where you can save the UV outline as an image Quote Link to comment Share on other sites More sharing options...
Nabroski Posted December 14, 2016 Share Posted December 14, 2016 @ozRocker saidly that the uv layout exporter from blender has only 1px line thickness. A possible workaround would be to apply a blur filter to smooth the lines out a bit. as i said their are some optimizations are possible from side of the texturing. I exported from Photoshop save for Web with 2 Colors Alpha and Blue. so 1024x1024*1bits per pixel. but if you export as PNG8 1024x1024X8bits (256Colors) its at least 1MB big that are allocated by your GPU not 72kB download time. So iphone has a strong limitation to texture size. IDK just saying. Quote Link to comment Share on other sites More sharing options...
adam Posted December 14, 2016 Share Posted December 14, 2016 @ozRocker Did you by any chance use the Sketchfab exporter that is built into Blender when uploading the model to Sketchfab? https://sketchfab.com/exporters/blender Quote Link to comment Share on other sites More sharing options...
ozRocker Posted December 14, 2016 Author Share Posted December 14, 2016 4 hours ago, adam said: @ozRocker Did you by any chance use the Sketchfab exporter that is built into Blender when uploading the model to Sketchfab? https://sketchfab.com/exporters/blender I just uploaded the .OBJ. I didn't know there was a Sketchfab exporter until you mentioned it. I checked and I can see its there, just needs to be enabled in User Preferences Quote Link to comment Share on other sites More sharing options...
NasimiAsl Posted December 15, 2016 Share Posted December 15, 2016 http://babylonjs-playground.com/#1LMACK#4 shader for @Nabroski Reply iiceman 1 Quote Link to comment Share on other sites More sharing options...
ozRocker Posted December 15, 2016 Author Share Posted December 15, 2016 1 hour ago, NasimiAsl said: http://babylonjs-playground.com/#1LMACK#4 Not bad mate. I'm trying to find a way to do this without textures so it can scale properly when zooming in and out. Also cos iOS doesn't like dealing with too many textures. Quote Link to comment Share on other sites More sharing options...
bentwonk Posted March 14, 2017 Share Posted March 14, 2017 Silly question from a newb, but is it possible to blend materials, for example overlay the grid material on a textured heightmap to show topology? Even better could it be applied only to a limited area of the ground, such as that the user is inspecting? Quote Link to comment Share on other sites More sharing options...
GameMonetize Posted March 14, 2017 Share Posted March 14, 2017 Hello, there is no newb questions. All questions are welcome! To do what you want you will need to clone your ground and affect a gridmaterial to the clone (and probably slide it a bit to have it on top of the main ground) NasimiAsl 1 Quote Link to comment Share on other sites More sharing options...
Jok Posted August 1, 2019 Share Posted August 1, 2019 http://www.hightopo.com/demo/Wireframe/ I'm trying to show the wireframe on the model, like this scene, but the effect hasn't come out yet. I've tried several ways, texture sampling, new BBS, a friend helped me to draw with lines, but the effect is not very obvious https://www.babylonjs-playground.com/#4AJ16M#103 Quote Link to comment Share on other sites More sharing options...
