Shadow penetrating through mesh

[Vijay Kumar]

Hi ,

I have a problem , Please help me .

Shadow is getting penetrating through first mesh and it falling on second mesh , the second mesh is behind the first mesh .

how can i stop that shadow of torus falling on second mesh ,and i want the only top ground shadow has to fall on the second ground.

http://www.babylonjs-playground.com/#PI8IS#17

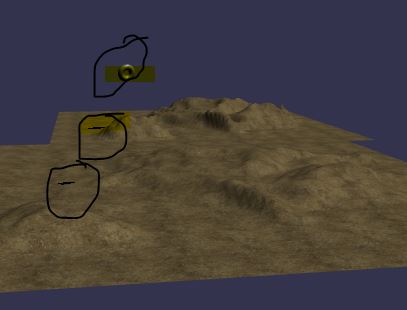

Please refer the screen shot also for more reference.

[RaananW]

Hi,

Shadow won't stop on the first mesh it hits. Each mesh with receiveshadow set to true will... Receive the shadow.

[Vijay Kumar]

i tried but i cant able to stop please anybody help.

torus shadow on 1stground and only 1st ground shadow on 2nd ground.

Could anybody make that clean and can give the link.

[RaananW]

hi,

you could always add the ground to the shadow list - http://www.babylonjs-playground.com/#PI8IS#18 . notice i don't use variance map anymore..

[Vijay Kumar]

Hi,

facing issue in shadows again this time i am getting some gap .

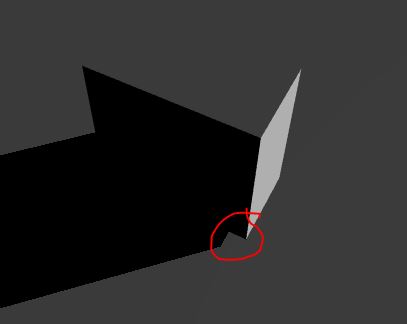

shadow was starting after some gap. please see Red highlighted area in the below screenshot ,

Very basic i tried but couldn't  able to figure out issue , please help me Raanaw.

http://www.babylonjs-playground.com/#29BCK0#11  is the Playground link

[eboo]

http://www.babylonjs-playground.com/#29BCK0#20



shadowGenerator.bias = 0.00001;



[Vijay Kumar]

Thanks eboo.

it was really very helpful i really spend so much of time on time .

thanks for it.
