BABYLON SSAORenderingPipeline Settings

[Arul]

hi

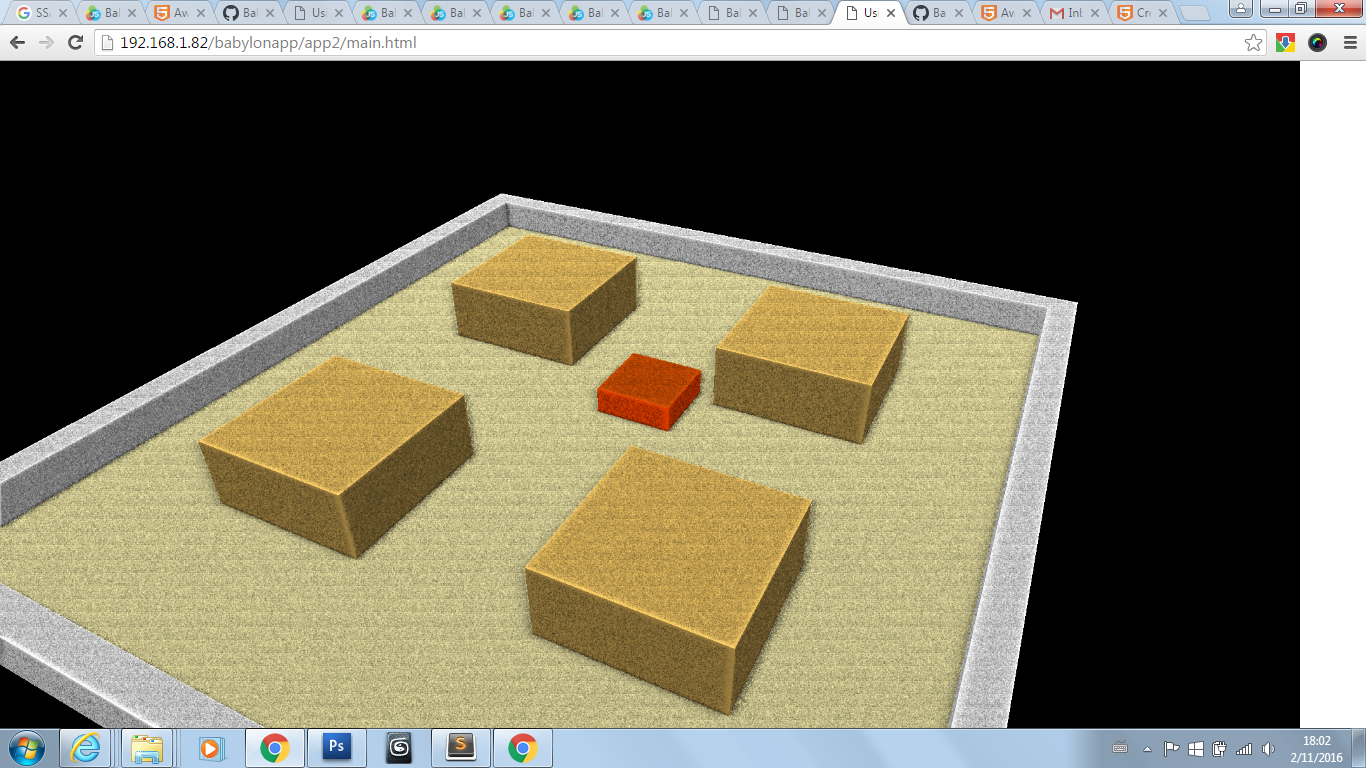

i have attached the SSAO rendering output image SSAO.png, i want to remove the  "textile effect", i dont know how to set the value for getBlurHPostProcess and  getBlurVPostProcess blur width.Can you pls help me How to remove the textile effect.



This is my SSAO Settings

var ssao = new BABYLON.SSAORenderingPipeline('ssaopipeline', scene, { ssaoRatio: 1, combineRatio: 1.0 });

ssao.fallOff = 0.000001
ssao.area =0.0075
ssao.radius = 0.0001
ssao.totalStrength = 1.0
ssao.base = 0.5;

ssao.getBlurHPostProcess().blurWidth = 0.1;

ssao.getBlurVPostProcess().blurWidth = 0.1;



Thanks





[julien-moreau]

Hi Arul !

To limit the "textile" effect, you should set the blur widths to 2.0 (not less, not more)

Also, to limit more the textile effect, you can play with the fallOff (that smoothes the effect) and set it higher, like  0.0001

Can you play with the fallOff ? Can you also create a playground to repro case ?

[Arul]

HI

Wow its working. Thank you for your replay.

this is my playground link

http://www.babylonjs-playground.com/#1HCCT2#12

i want more realistic depth and smooth, can you pls tell me correct settings.

thanks









[julien-moreau]

This looks good : http://www.babylonjs-playground.com/#1HCCT2#17

An update of the SSAO rendering pipeline is coming soon. I'll be smoother where an additional internal pass will remove the textile effect

[Arul]

Thanks you very much

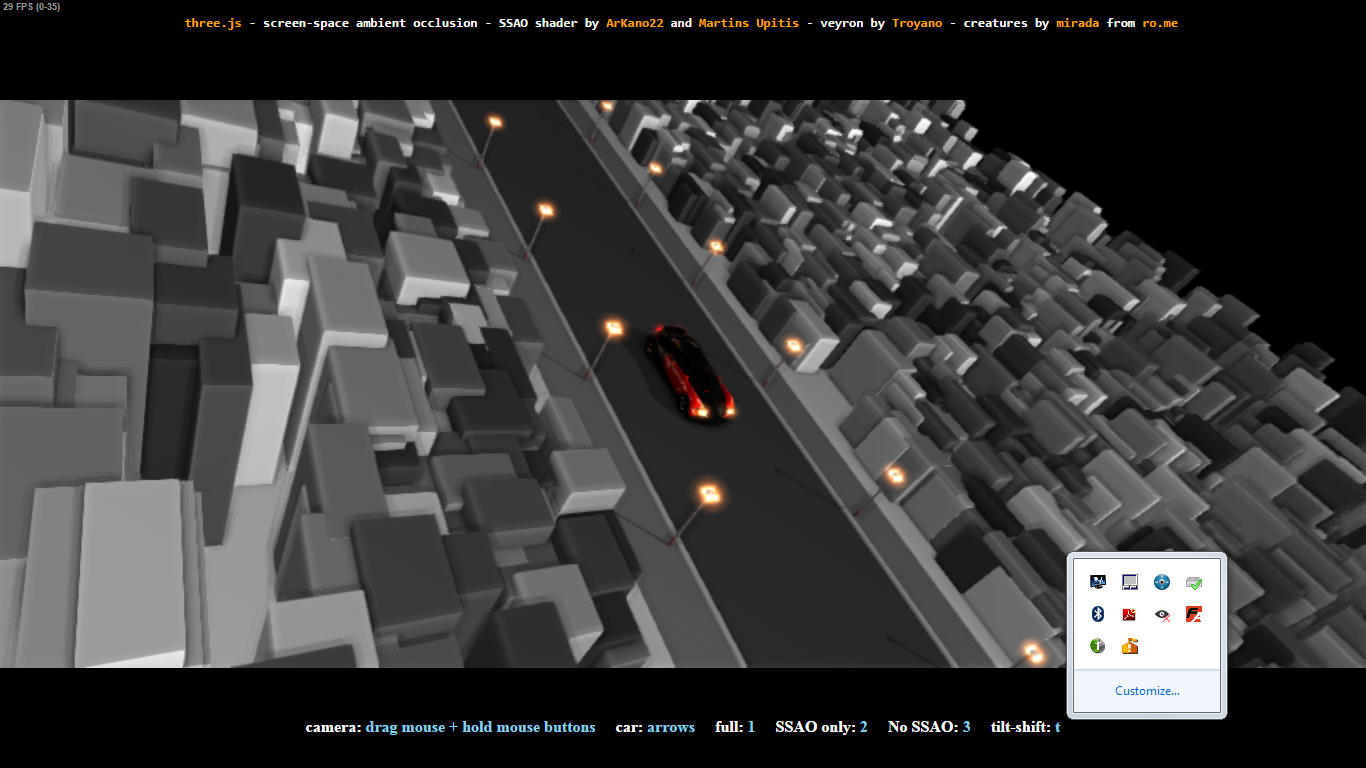

But i will expect with sharp edges,  see this link - http://alteredqualia.com/three/examples/webgl_postprocessing_ssao.html



[jerome]

why those guys from ThreeJS always have the nicest cars in their demos ?!
