Incorrect vertex points, import raw data from clara

[zmahomedy]

Hi



I am trying to do the following, Take a model in wireframe and add new meshes to its vertices.



I created a simple model of 2 tetrahedrons and imported it into babylon using the raw data from the export file, using setVerticesData.

It renders correctly however the next part to my project is to add meshes to each vertex point ( suppose to be 8 ),

I instead get 24 points into my array when I use the function

getVerticesData(BABYLON.VertexBuffer.PositionKind);

In clara.io I see 8 vertices. So I am not sure why I am getting so many vertex points.

The reason why I am importing the raw data is due to the fact I do not want to use a web server for this project.

it must run off the browser in offline mode.





see code

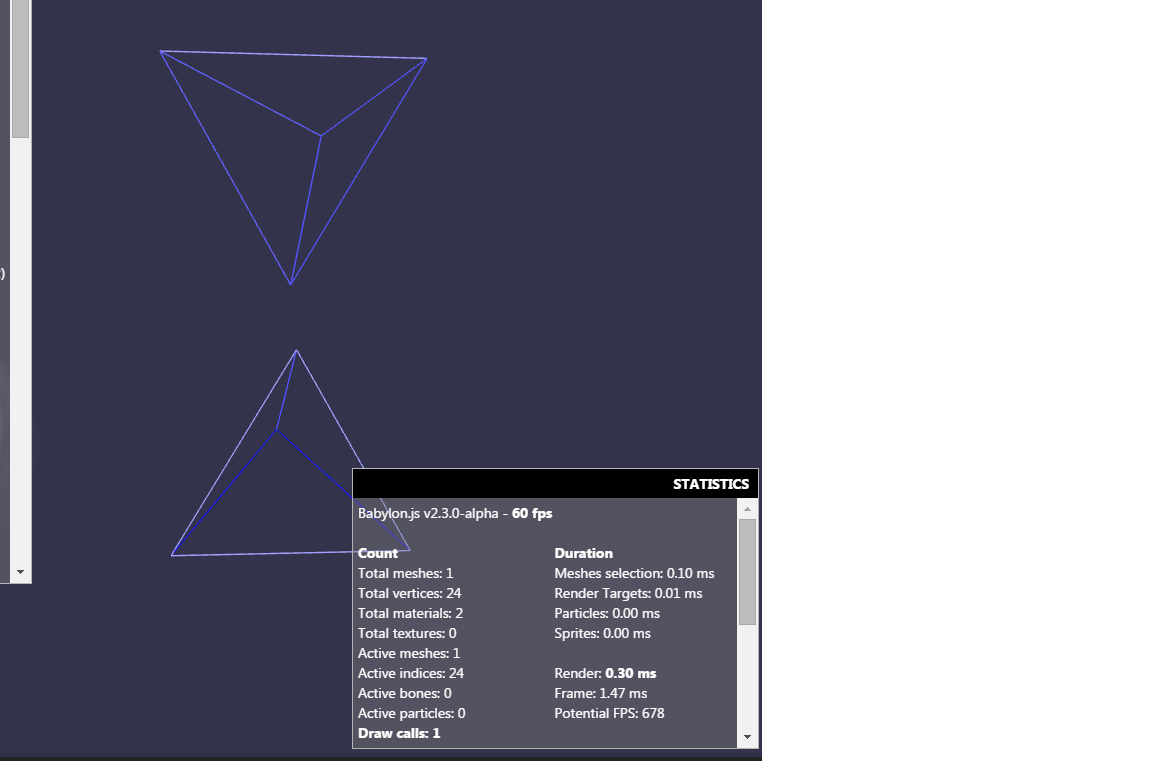

I also attached screenshots  from the playground

I would like to get the correct 8 vertices to add my custom meshes to it



link to clara.io model

https://clara.io/view/2ee8381f-23f5-4eeb-b682-01e6f68f037d/image









thanks

zak

var createScene = function () {   var scene = new BABYLON.Scene(engine);var camera = new BABYLON.ArcRotateCamera("Camera", 3 * Math.PI / 2, Math.PI / 8, 50, BABYLON.Vector3.Zero(), scene);var light = new BABYLON.HemisphericLight("hemi", new BABYLON.Vector3(0, 1, 0), scene);camera.attachControl(canvas, true);    // Default intensity is 1. Let's dim the light a small amount    light.intensity = 0.7;var base = createBase(scene);var vertices = base.getVerticesData(BABYLON.VertexBuffer.PositionKind);createMeshAtVertices(vertices, scene)return scene;};function createBase(scene){var tet1 =  new BABYLON.Mesh("base", scene);         var tet1positions = [-0.009,0.1071,-0.01,-0.2019,0.7687,0.4279,0.473,0.7658,-0.0316,-0.2019,0.7687,0.4279,-0.009,0.1071,-0.01,-0.2622,0.7861,-0.3862,0.473,0.7658,-0.0316,-0.2019,0.7687,0.4279,-0.2622,0.7861,-0.3862,-0.009,0.1071,-0.01,0.473,0.7658,-0.0316,-0.2622,0.7861,-0.3862,0.009,-0.1271,0.0092,0.2622,-0.8054,0.3865,-0.473,-0.7857,0.0319,0.2019,-0.7894,-0.4276,-0.473,-0.7857,0.0319,0.2622,-0.8054,0.3865,0.2019,-0.7894,-0.4276,0.2622,-0.8054,0.3865,0.009,-0.1271,0.0092,0.2019,-0.7894,-0.4276,0.009,-0.1271,0.0092,-0.473,-0.7857,0.0319];var tet1normals = [0.5243,-0.3584,0.7725,0.5243,-0.3584,0.7725,0.5243,-0.3584,0.7725,-0.9461,-0.3177,0.0632,-0.9461,-0.3177,0.0632,-0.9461,-0.3177,0.0632,0.018,0.9996,0.02,0.018,0.9996,0.02,0.018,0.9996,0.02,0.4038,-0.3236,-0.8557,0.4038,-0.3236,-0.8557,0.4038,-0.3236,-0.8557,-0.4038,0.3249,0.8552,-0.4038,0.3249,0.8552,-0.4038,0.3249,0.8552,-0.0179,-0.9997,-0.0184,-0.0179,-0.9997,-0.0184,-0.0179,-0.9997,-0.0184,0.9461,0.3177,-0.0637,0.9461,0.3177,-0.0637,0.9461,0.3177,-0.0637,-0.5243,0.3571,-0.773,-0.5243,0.3571,-0.773,-0.5243,0.3571,-0.7734];var tet1uvs = [0.375,0.6959,0.875,0.6959,0.625,0.3041,0.875,0.6959,0.375,0.6959,0.125,0.3041,0.625,0.3041,0.875,0.6959,0.125,0.3041,0.375,0.6959,0.625,0.3041,0.125,0.3041,0.625,0.3041,0.875,0.6959,0.375,0.6959,0.125,0.3041,0.375,0.6959,0.875,0.6959,0.125,0.3041,0.875,0.6959,0.625,0.3041,0.125,0.3041,0.625,0.3041,0.375,0.6959];var indices = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23];tet1.setVerticesData(BABYLON.VertexBuffer.PositionKind, tet1positions,  true);tet1.setVerticesData(BABYLON.VertexBuffer.NormalKind, tet1normals, true);tet1.setVerticesData(BABYLON.VertexBuffer.UVKind, tet1uvs, true);tet1.setIndices(indices);var material = new BABYLON.StandardMaterial("pyshical", scene);material.wireframe = true;material.diffuseColor = BABYLON.Color3.White();material.specularColor = BABYLON.Color3.White();material.emissiveColor = BABYLON.Color3.Blue();tet1.material = material;tet1.scaling = new BABYLON.Vector3(15, 15, 15);tet1.rotation.z = -0.4;tet1.rotation.y = 2.5;tet1.rotation.x = 2.6;tet1.bakeCurrentTransformIntoVertices();return tet1;};function createMeshAtVertices(vertices, scene) {var stype = 0;var shape;for (var i = 0; i < vertices.length / 3; i++ ){if(stype == 5)stype = 0;shape = BABYLON.Mesh.CreatePolyhedron("pyshical", { type: stype, size:0.5 }, scene);    shape.position = BABYLON.Vector3.FromArray(vertices, i);shape.scaling = new BABYLON.Vector3(1, 1, 1);stype++;}};

untitled-scene-babylon.zip

[JohnK]

Each position has an x, y, and z coordinate and reading with positionkind gives an array of the form [x0,y0,z0,x1,y1,z1,......] So 8 vertices gives an array of length 3*8.

[zmahomedy]

JohnK

I have 72 positions not 24 from the model import.

Even if there was some duplication, where isnt my meshes not aligning with the base mesh  vertices points ,when using data from its vertex data function

[Temechon]

If two vertex has two different normals, the point is duplicated (same with texture coordinates).



Here, you have 4 points for each model. Each of these points is linked to 3 faces (so 3 differents normal for each points) => 4 * 3 = 12 vertices.

You have two models: 24 vertices.

[zmahomedy]

thanks for clarifying the issue on the number of vertices.



can anyone shed any light on why getVerticesData is giving me points off the model in space?

Should it not all be on the model?





I am very new to this.



Zak

[JohnK]

Can you provide a Babylonjs playground and clarify which points are off the model and how this affects the rendering?

[zmahomedy]

Hi JohnK



here is the babylon playground link

http://www.babylonjs-playground.com/#2AXMQX

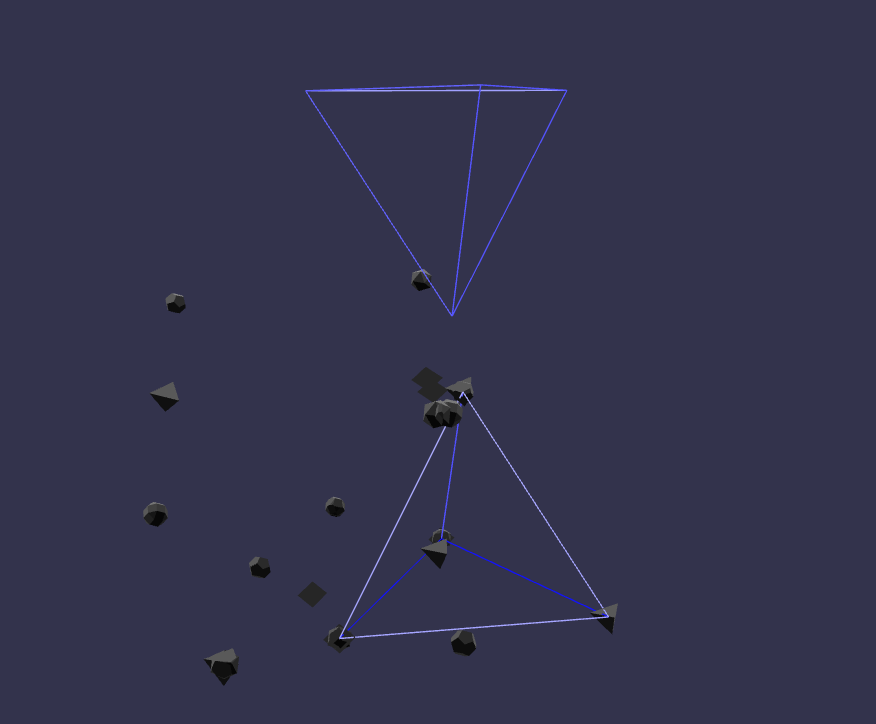

as you can see there are alot of meshes floating outside the base mesh.

Im using verticesdata to get each point so theoretically all new meshes should be all  within the base mesh.



another slight hicup as I continue to work on this project

To get the orientation correct, I transformed the base mesh using rotation

tet1.rotation.z = -0.4;tet1.rotation.y = 2.5;tet1.rotation.x = 2.6;tet1.bakeCurrentTransformIntoVertices();

now when I want to add in some animation using scene.beforeRender

its taking the above into its calculation which is not the desired results.

Once I orientate the base I just want it to spin along its y axis.

If I remove the above code it spins properly but the orientation is off .



zak

[JohnK]

Is this what you want http://www.babylonjs-playground.com/#2AXMQX#1



you vertices array has the form [x0,y0,z0,x1,y1,z1,......] and so

BABYLON.Vector3.FromArray(vertices, 0); is constructed from x0,y0,z0BABYLON.Vector3.FromArray(vertices, 1); is constructed from y0,z0,x1BABYLON.Vector3.FromArray(vertices, 2); is constructed from z0,x1,y1BABYLON.Vector3.FromArray(vertices, 3); is constructed from x1,y1,z1etc

I have changed your loop on line 64 and the fromArray on line 68 to work in groups of three to read the x, y, and z coordinates of each vertex.

[zmahomedy]
