Contributing to documentation 101

[GameMonetize]

Thanks a lot! I fixed them. It should be live soon

[inteja]

I got here from the @deltakosh Help Wanted thread

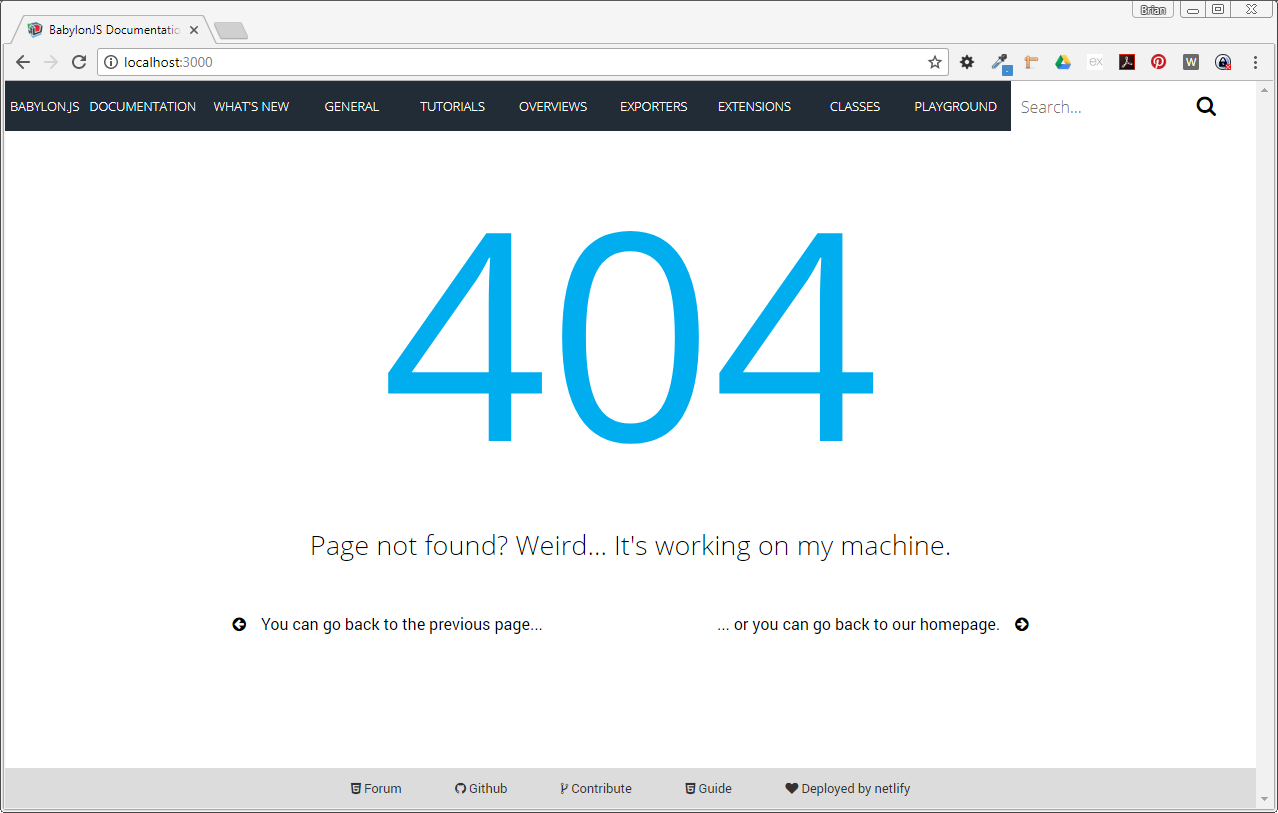

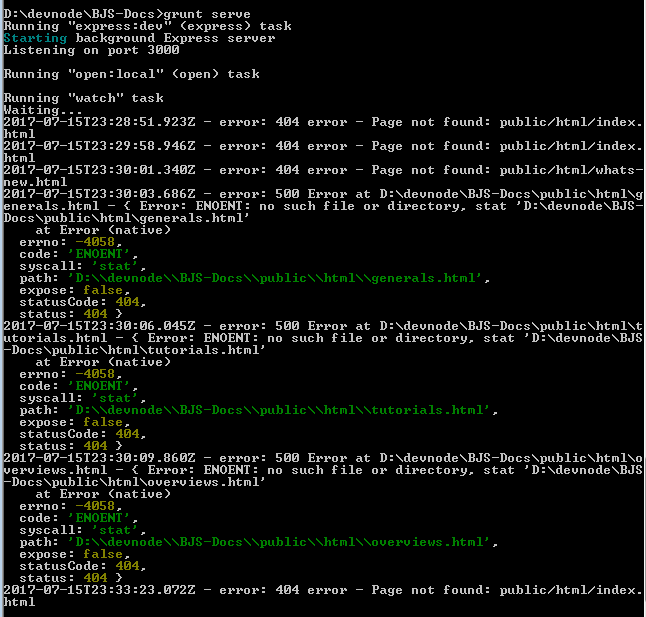

I'm a native English speaker, would like to contribute to the docs and have used the "fork and local clone" method but am getting 404 and 500 errors when viewing my local clone.

I can use the easier, direct edit method for now but I'd like to resolve this method as well.



[Temechon]

@inteja You have first to run 'grunt build', then 'grunt serve'.

[inteja]

Thanks @Temechon That instruction wasn't in the original post but I see now it's been answered in a subsequent reply. Works now.

[GameMonetize]

Thanks for your help!

[V!nc3r]

I suggest adding two points in the first post, 'cause I add issues, resolved by doing:

• installing grunt, writing npm install -g grunt-cli in command prompt,
• run grunt build, then grunt serve,
• also, node.js download link will be more convenient if its point to https://nodejs.org/ rather than https://nodejs.org/download

In a n00b point of view, it is also easier to use github desktop rather than tortoisegit I think.

[GameMonetize]

Even better this should be a post in the doc  And then I will update this post to just link to the doc

[JCPalmer]

I was wondering why VS-Code is used as the example for getting started doc over VS-Community?  I am trying to modify a C++ program for Kinect, and all VS-Code does is edit files.  I was not using VS-Code, though I had it for JS work.  Just wondering.

[GameMonetize]

Mostly because the code base is all TS

[V!nc3r]

Maybe a little tips to add in the first post of this thread (based on a mistake from me):

if you want update informations on the Classes part, you have to add comments directly in the source code (apparently).

For example, let's say we want add info for wrapU in BaseTexture:

@serialize()
public wrapU = Texture.WRAP_ADDRESSMODE;

/*
* yep, this is a message for the doc, about wrapU
*
* and here a nice table containing informations:
*
* | title | title |
* | ---- | ---- |
* | my text | my text |
*
*/

@serialize()
public wrapV = Texture.WRAP_ADDRESSMODE;

@serialize()
public wrapR = Texture.WRAP_ADDRESSMODE;



[V!nc3r]

By the way, little question, taking in example createDefaultEnvironment in scene.ts:

in the doc, we can see a table under this property, but not in the source code. Where comes from this table?

[GameMonetize]

This table is generated automatically from jsdoc code comments (in this case it only extract the function parameters)

the new PR system ensures that no more code will be merged without comments so these tables will contain accurate info

[V!nc3r]

Me again, about this commit: https://github.com/BabylonJS/Babylon.js/commit/ab719c9e68f546165508893ac33f248fc6b06309

I've made a mystake and didn't know about some convention, so this could help others too:

• don't place comment below the descripted code, but above
• start your comment with /** instead of just /*

Sorry for be a n00b in that part, plus editing the source code is kind of scary (I've just made a PR to (I hope) correcting this mystake)

[Guest]

Don't be sorry! I would love to have an army of noobs like you !

[V!nc3r]

Me again...

Is it normal that my try did not appear in the classes pages? http://doc.babylonjs.com/classes/3.1/basetexture

Here the github file I've updated https://github.com/BabylonJS/Babylon.js/blob/master/src/Materials/Textures/babylon.baseTexture.ts#L35

Is this because it is the file from BJS 3.2 alpha, so not yet referenced in the doc? (by writing this, it feels like this is the reason, and it seems logic too, but I still ask to be sure).

[jerome]

yes, this is the reason why.

[inteja]

After changing a doc file locally with grunt serve running I get the following shell error (latest master branch of docs):

2018-03-24T02:34:43.192Z - error: 404 Error -  /css/main.css.map
2018-03-24T02:34:43.956Z - error: uncaughtException: ENOENT: no such file or directory, open 'log/bjs-doc-error.log'



[inteja]

Not sure what I'm doing wrong, but sometimes I'd get the error above after changing any file but at other times it simply wouldn't rebuild automatically, although shell indicates it was still watching.

Was able to get around it by cancelling watch, grunt rebuild then grunt serve each time.

If anyone can shed some light on this it would be most appreciated.

Anyway, my first doc contribution is submitted for review, so yay for that. Hopefully many more to come ...

[Guest]

I do not repro locally

ANd thanks a lot for the contrib!!

[JohnK]

On 24/03/2018 at 2:43 AM, inteja said:

After changing a doc file locally with grunt serve running I get the following shell error

May not be the same thing but I know if I change a file while grunt serve is watching I get pages not found if I do not wait for the build that was generated through the watch to finish since it clears files before building them. In fact my process is to note all changes I want to make on paper stop grunt serve do changes and do a rebuild

[Guest]

You are right this happens if I do not wait the build to finish

[V!nc3r]

Thanks to some helps, Resources have now a playground filter. And PG textures page get a big cleanup.

[V!nc3r]

I want to add into the doc' default values of some defaultRenderingPipeline properties, starting by bloom properties for example. But I'm not sure which files I have to edit, 'cause the bloom seems to be dispatched and duplicated in few files, I've spot these ones:

- https://github.com/BabylonJS/Babylon.js/blob/master/src/PostProcess/babylon.bloomEffect.ts

- https://github.com/BabylonJS/Babylon.js/tree/master/src/PostProcess/RenderPipeline

Where I should edit exactly ?

And another question relative to this: for now, to get the default values, I play with the playground and write `console.log(pipeline.bloomScale)` for example, to get my default value into my browser console. But the default value is surely write into the BJS code, so... where ?



[V!nc3r]

@Sebavan and @trevordev , may I ping you about my question above ? (I see you'are the ones who commited on bloomEffect.ts)

[trevordev]

Sure, you can edit the default rendering pipeline's bloom scale property here:

https://github.com/BabylonJS/Babylon.js/blob/master/src/PostProcess/RenderPipeline/Pipelines/babylon.defaultRenderingPipeline.ts#L166 , I believe the default value should be 0.5 based on the initial value of the private variable _bloomScale.

The default rendering pipeline, during initialization, creates a new instance of bloom effect found in bloomEffect.ts which takes the _bloomScale as a parameter.

Let me know if you have further questions.
