weird vTextureCoord on fragment shader


GBear
 Share

Recommended Posts

hi.

i write following filter shader code


function createShaderShadow(width, height) {    // smoke shader    var uniforms = {};    uniforms.resolution = {        type: '2f',        value: {            x: width,            y: height        }    };    uniforms.time = {type: '1f', value: 0.5};    uniforms.dimensions = {type: '4fv', value:new PIXI.Float32Array([0, 0, 0, 0])};    uniforms.target= {type: '4fv', value:new PIXI.Float32Array([200, 200, 200, 200])};    var fragmentSrc = [        'precision mediump float;',        'uniform sampler2D uSampler;',        'varying vec2 vTextureCoord;',        'uniform vec4 dimensions;',        'uniform vec2 resolution;',        'uniform vec4 target;',        'void main() {',        '    vec2 ratio = vTextureCoord.xy * resolution.xy;',        //'    vec2 ratio = vTextureCoord.xy;',        '    vec2 p = vec2(200, 200);',        '    float dist = distance(ratio, p);',        '    vec4 color = texture2D(uSampler, vTextureCoord);',        '    if(dist < 150.0){',        '        gl_FragColor = color;',        //'        gl_FragColor = vec4(0.0, 1.0, 0.0, 1.0);',        '    } else {',        '        gl_FragColor = vec4(1.0, 0.0, 0.0, 1.0);',        '    }' ,        '   return;',        '}'    ];    var coolFilter = new PIXI.AbstractFilter(fragmentSrc, uniforms);    return coolFilter;};

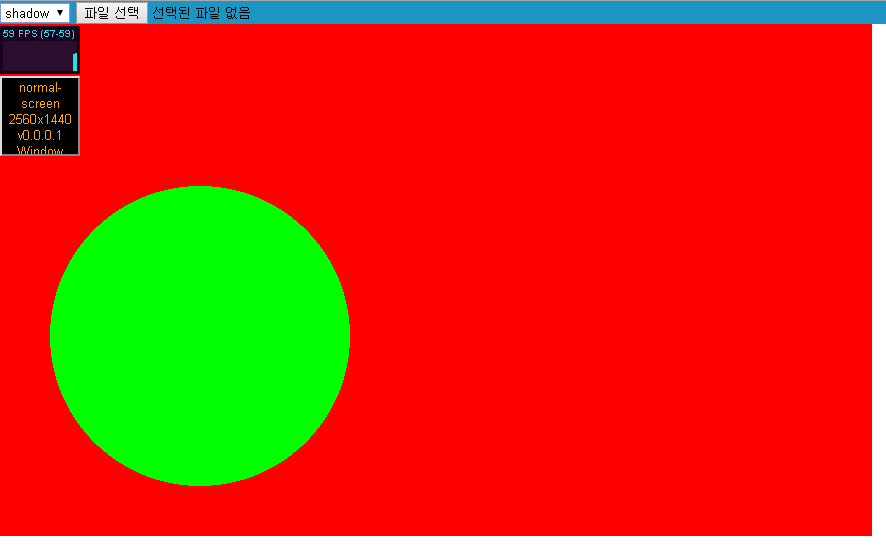

green part is target to draw texture.

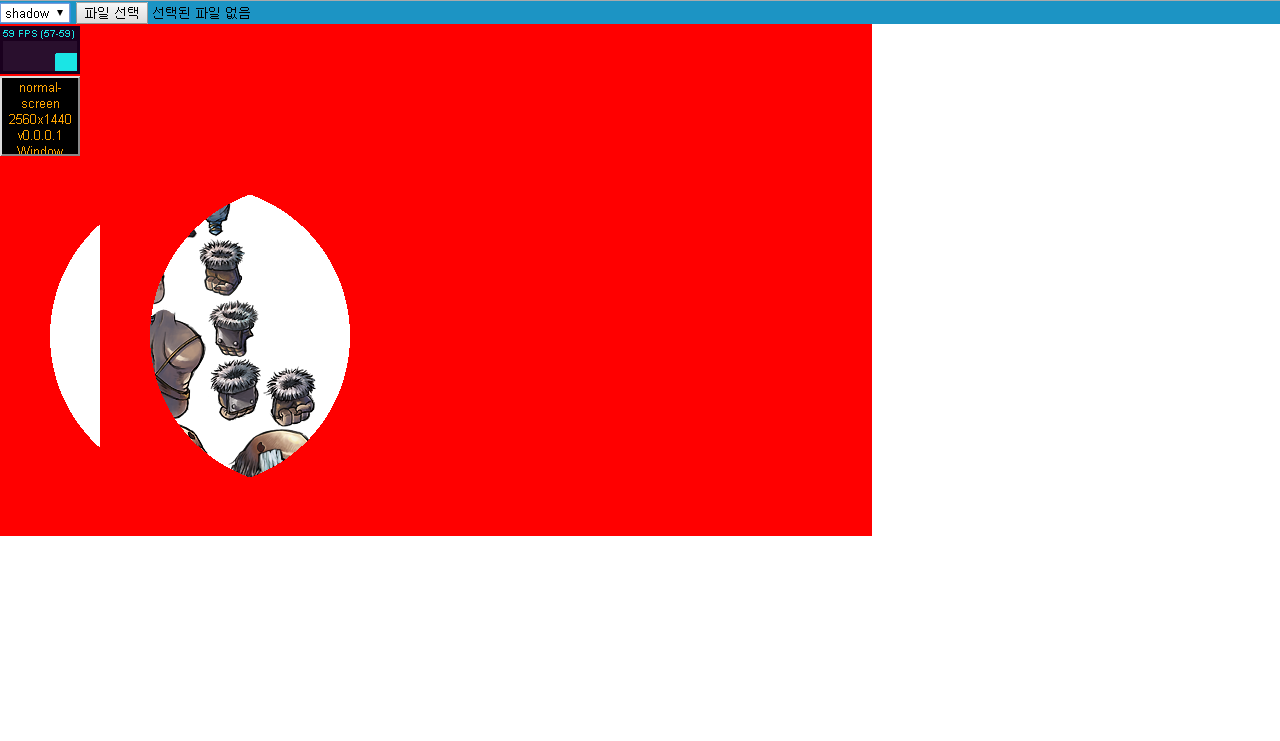

but i set texture color into gl_FragColor , i can see weird image like under

post-10357-0-65669500-1437539520_thumb.p



what is wrong there? and what can i do to resolve this?

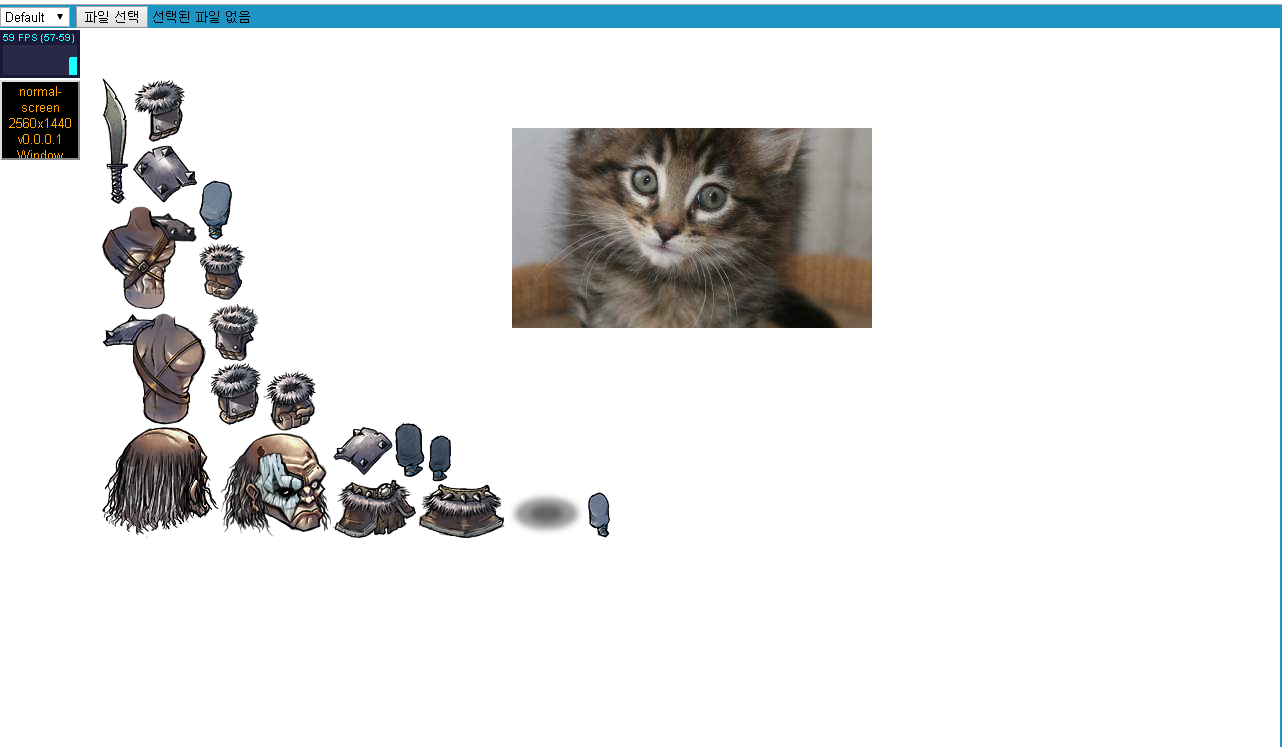

this. is normal image

post-10357-0-78288000-1437539518_thumb.p



thx ^^/
