Instanced meshes with ShaderMaterial are not drawn

[jahow]

Hi all,



I found something weird while optimizing my code: I was using InstancedMesh as much as possible, and switched all my materials to ShaderMaterial. And then boom, everything disappeared.

After a bit of research, it seems instanced meshes will simply not be drawn when their source has a ShaderMaterial assigned. Playground repro: http://www.babylonjs-playground.com/#TWDEA#6

Uncomment lines 40 to 44 to see for yourself. It's actually a bit more complex than that: when you assign a shader material to it, even the source mesh disappears if it has been instantiated (?), but only if its instances are in the field of view.



I'm currently looking at BJS code and ANGLE_instanced_arrays doc (the extension used for drawing instanced meshes), but I thought I'd come here to fish for ideas...

FYI these are two errors I noticed in the log when this problem showed (errors not always there):

drawElementsInstancedANGLE: at least one enabled attribute must have a divisor of 0glDrawElementsInstancedANGLE: attempt to draw with all attributes having non-zero divisors

Thanks

[RaananW]

A very(!) uneducated guess:

All Materials have useInstances variable in their isReady() function, shader material is missing it.

StandardMaterial adds this:

defines.push("#define INSTANCES");attribs.push("world0");attribs.push("world1");attribs.push("world2");attribs.push("world3");

if useInstance is set to true. Maybe this is a place to check?

[jahow]

Yeah, I'm starting to understand the issue, and it's related to the lines you point at.



Basically, only the StandardMaterial supports instances by default, since it's the only one that passes the transformation matrix as an attribute when drawing instanced meshes.



I got it to work almost perfectly by adding these to the shader material object:

- attributes: world0, world1, world2, world3 (these are actually the world transform matrix of the current instance, decomposed in vertices)

- uniform: viewProjection



Here it is: http://www.babylonjs-playground.com/#TWDEA#9



It's not perfect yet: when there is no instanced mesh on screen but only the original one (left ball), the rendering process switches to no-instance rendering and doesn't provide these attributes anymore, and then a WebGL error pops out. The StandarMaterial uses the lines pointed out by RaananW to make that switch, but the ShaderMaterial doesn't handle that.



For now I'll make my own custom material class to handle this, but I believe it would be a good thing for BJS to handle this case by default. Although that may require some serous change on the ShaderMaterial class...

[GameMonetize]

You're right. I add this one to my backlog. The shaderMaterial must support instances rendering. I'll fix asap

[jahow]

Thanks! Hope you can think of a simple way to do this, because I can't

[jerome]

@DK : backlog, backlog ?

Are you a Scrum guy btw ?

[GameMonetize]

Not at all...My backlog is my list of tasks

[JCPalmer]

Is this ShaderMaterial a real boost / short cut?  If so, may want to incorporate into my Blender source code generator.



Here is a sample of a scene with 3 materials.  I was being explicit like the way FileLoader is.  Is there a better pattern to use?  Here is the Javascript variant.  There is also a Typescript variant.

    var matLoaded = false;    function defineMaterials(scene, materialsRootDir) {        if (!materialsRootDir) { materialsRootDir = "./"; }        if (!BABYLON.Engine.Version || Number(BABYLON.Engine.Version.substr(0, BABYLON.Engine.Version.lastIndexOf("."))) < 2.0) throw "Babylon version too old";        if (matLoaded) return;        BABYLON.Tools.Log('In defineMaterials');        if (materialsRootDir.lastIndexOf("/") + 1  !== materialsRootDir.length) { materialsRootDir  += "/"; }        var material;        var texture;        material = new BABYLON.StandardMaterial("shape_key.cloth-like", scene);        material.ambientColor  = new BABYLON.Color3(1,1,1);        material.diffuseColor  = new BABYLON.Color3(0.8,0.8,0.8);        material.specularColor = new BABYLON.Color3(0.5,0.5,0.5);        material.emissiveColor = new BABYLON.Color3(0,0,0);        material.specularPower = 50;        material.alpha =  1;        material.backFaceCulling = false;        texture = new BABYLON.Texture(materialsRootDir + "tableCloth.jpg", scene);        texture.name = materialsRootDir + "tableCloth.jpg";        texture.hasAlpha = true;        texture.level = 1;        texture.coordinatesIndex = 0;        texture.coordinatesMode = 0;        texture.uOffset = 0;        texture.vOffset = 0;        texture.uScale = 1;        texture.vScale = 1;        texture.uAng = 0;        texture.vAng = 0;        texture.wAng = 0;        texture.wrapU = 1;        texture.wrapV = 1;        material.diffuseTexture = texture;        material = new BABYLON.StandardMaterial("shape_key.ground-like", scene);        material.ambientColor  = new BABYLON.Color3(0.8,0.8,0.8);        material.diffuseColor  = new BABYLON.Color3(0.64,0.64,0.64);        material.specularColor = new BABYLON.Color3(0.5,0.5,0.5);        material.emissiveColor = new BABYLON.Color3(0,0,0);        material.specularPower = 50;        material.alpha =  1;        material.backFaceCulling = true;        texture = new BABYLON.Texture(materialsRootDir + "tmage512.png", scene);        texture.name = materialsRootDir + "tmage512.png";        texture.hasAlpha = true;        texture.level = 1;        texture.coordinatesIndex = 0;        texture.coordinatesMode = 0;        texture.uOffset = 0;        texture.vOffset = 0;        texture.uScale = 1;        texture.vScale = 1;        texture.uAng = 0;        texture.vAng = 0;        texture.wAng = 0;        texture.wrapU = 1;        texture.wrapV = 1;        material.diffuseTexture = texture;        material = new BABYLON.StandardMaterial("shape_key.table", scene);        material.ambientColor  = new BABYLON.Color3(0,0,1);        material.diffuseColor  = new BABYLON.Color3(0,0,0.8);        material.specularColor = new BABYLON.Color3(0.5,0.5,0.5);        material.emissiveColor = new BABYLON.Color3(0,0,0);        material.specularPower = 50;        material.alpha =  1;        material.backFaceCulling = true;        matLoaded = true;    }    shape_key.defineMaterials = defineMaterials;

[GameMonetize]

It is not a boost if StandardMaterial can handle it

[Pryme8]

Was this ever fixed? I am seeming to run into this issue now. @Deltakosh

I need to have instances specifically not clones with different shader params.  Ive tried cloning the shader tot he new instance and I get the same weird results.

I have a video demonstrating it on this page.  If I do the same process with my water hex instance and just don't use my shader it goes to the correct position.  But I can not replicate on the playground so Im kinda at a loss, then I came across this from 2015.

I even simplified my shader to just output white, and still get odd results.

[JCPalmer]

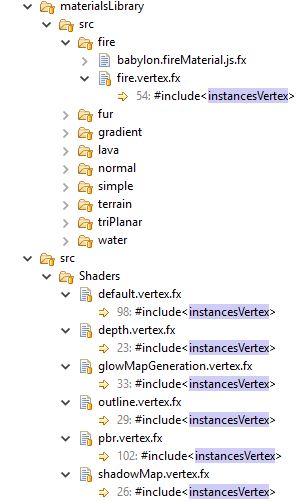

I did a search against the repo for the include needed to process instances inside of Eclipse.  Looks like some vertex shaders are covered, but not all.  Looking at this old thread, there was only StandardMaterial (default shader), so something was done.  Supported here.  BTW, if vertex and fragment shaders were in separate directories, it would be easier.

[Pryme8]

GET IT JC!! if you figure this out you will rock my world.

[ozRocker]

I am also stuck on trying to instance a mesh that is using the shader material

[javalang]

me too

[GameMonetize]

The ShaderMaterial let you provide the code so if you want to support instances you will have to write the shader code

Here are some hints to help:

- First of all everythng happens in the vertex shader

- You need to include this shader include: https://github.com/BabylonJS/Babylon.js/blob/master/src/Shaders/default.vertex.fx#L24 to get all declarations done

- Then add this one in your vertex code(https://github.com/BabylonJS/Babylon.js/blob/master/src/Shaders/default.vertex.fx#L99)

- Makes sure you are using a variable named finalWorld to compute your vertex position

- You need to add a shader define names INSTANCES

- Material helper can help you providing the required uniforms: https://github.com/BabylonJS/Babylon.js/blob/master/src/Materials/babylon.materialHelper.ts#L304



[sable]

I've been attempting to get instances working with shaderMaterial, but am a bit stuck. http://www.babylonjs-playground.com/#QNFL1G

I think I've done all the above, except

On 6/8/2017 at 2:56 AM, Deltakosh said:

- You need to add a shader define names INSTANCES

as I'm not sure how to do this.

[Vorion]

@sable Have you been able to get it working?

Or can anyone else help to get sable's playground example to work? I'm quite new to shaders in general :).

Thanks.

[sable]

@Vorion

Never got this to work sorry, ended up just using the standard material.

Would be interested in a solution though.

[Vorion]

@sable and anyone who's interested in this:

A friend of mine fixed got it fixed. Define instances was missing, and the "gl_position" matrix multiplication was in the wrong order.

http://www.babylonjs-playground.com/#QNFL1G#4
